2 Washer fluid lines
⇒ o2.1 f washer fluid level pipes”, page 30

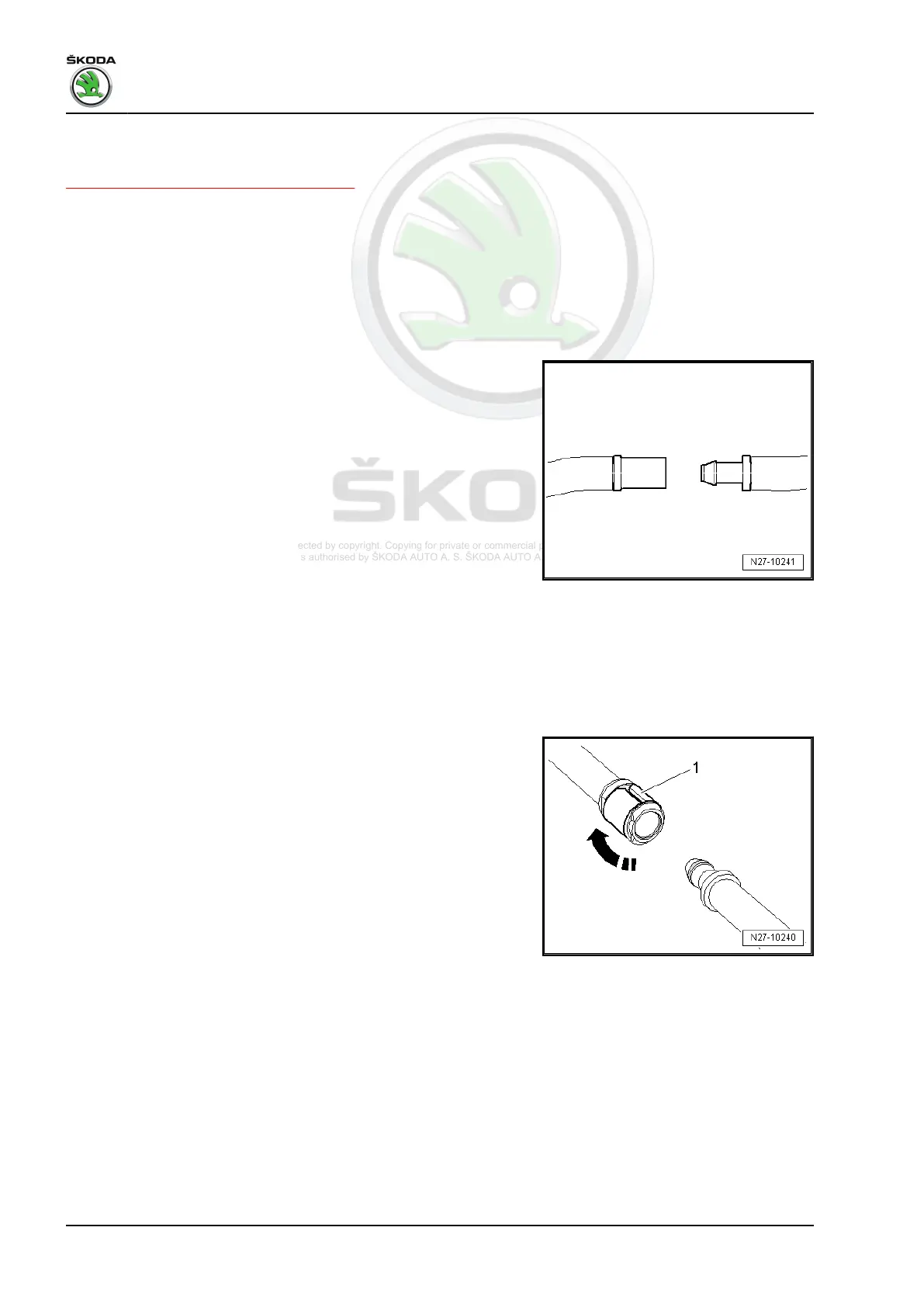

2.1 Connections of washer fluid level pipes
In order to connect the hoses to the washer fluid pumps and
the spray nozzles, the following hose couplings are used for
example as separating points.
Unsecured hose coupling
– Pull apart both coupling parts in order to separate the con‐
nection.
– In order to connect, firmly press together both coupling parts
until they lock audibly. Check for secure locking by pulling at
the connection.
Secured hose coupling with circlip
– Turn the circlip -1- by approx. 90° -arrow- in order to sepa‐
rate the connection and pull off the hose connection. After
pulling off the circlip -1-, turn back again.
– In order to connect, press together the connections until
they lock audibly. Check for secure locking by pulling at the
connection.
Secured hose coupling with securing clip, version 1
– Pull up the securing clip -1- by approx. 1 mm -arrow- in order
to separate the connection and pull off the hose connection.
Citigo 2012 ➤, Citigo-e iV 2020 ➤, Enyaq 2021 ➤, Enyaq Coupe 2021 ➤, Fabia 2000 ...
Electrical System - general notes - Edition 12.2021
30 Rep. gr.92 - Windscreen wash/wipe system
