Note
♦
The timing case must be replaced on older vehicles. On new
vehicles, the coding of the timing case matches.
♦
Observe the plug assignment. To improve the overview, the
individual pins in the new housing must be marked with a
colour coding.
♦
Additional information can be found on the new lambda
probe.
– Install the new Lambda probe in the vehicle.
7.2 Replace the LSU lambda probe (6-
pole)
Note
♦
Where necessary, repair the attachment parts enclosed with
the unit probe, cable ties or marking tapes after presenting
the faulty probe.
♦
The cables on the lambda probe must not be repaired as
this can lead to malfunction.
– Remove the faulty lambda probe ⇒ Engine; Rep. gr. 24.

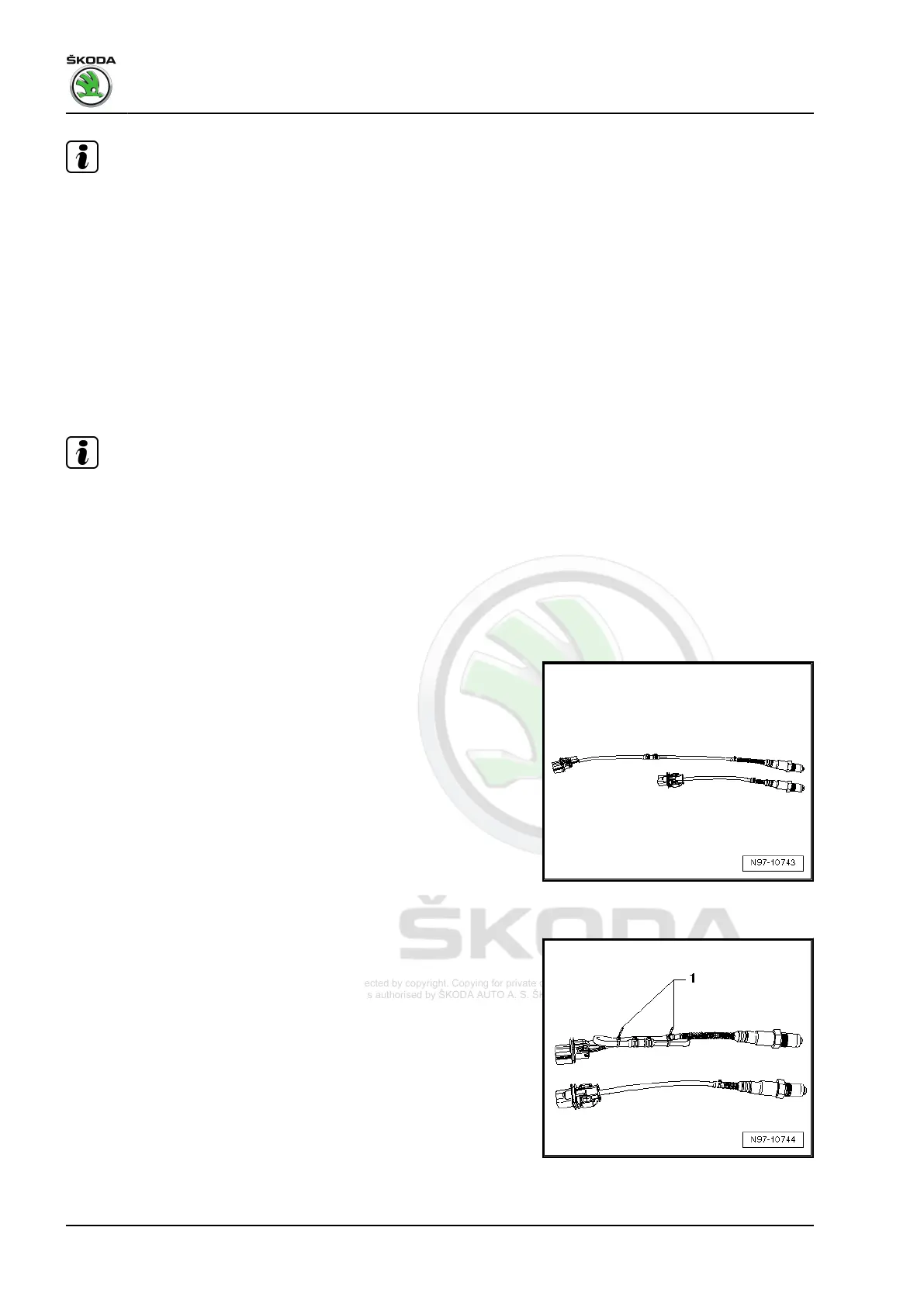

– Place the two lambda probes next to each other so that the
sensor housing is at one height, see fig.
– Fix the excess length of the unit probe (approx. 50 - 250
mm) by tying it back to the length of the cable ties -1-.
– Install the new Lambda probe in the vehicle.
Citigo 2012 ➤, Citigo-e iV 2020 ➤, Enyaq 2021 ➤, Enyaq Coupe 2021 ➤, Fabia 2000 ...
Electrical System - general notes - Edition 12.2021
112 Rep. gr.97 - Wiring
