2.11 Repairing aerial cables
Check the aerial cable ⇒ page 72
Replace the tool head: ⇒ page 73
Cut the aerial cable: ⇒ page 73
Strip the shield: ⇒ page 74
Strip the outer sheath: ⇒ page 76
Strip the interior insulation: ⇒ page 77
Crimp the inner conductor: ⇒ page 78
Crimp the outer conductor: ⇒ page 80
Special tools and workshop equipment required
♦ Repair kit, aerial cable -VAS 6720-
The repair kit, aerial cable -VAS 6720- ensures optimal repair
quality for the repair of aerial cables RG 174 (blue) and RTK
031 (black). The set includes the respective stripping tools and
the crimping tools for the two aerial cables. In the case, you will
also find all the necessary individual parts to re-attach the origi‐
nal plug at a near-series production level. Only the zero-coded
coupler (green) is required. All other connecting cables for the
various Infotainment systems can be found using the ⇒ Elec‐
tronic catalogue of original parts “ETKA” (EL - electrical con‐
nection elements) on the panel 035-XX. These special adapter
aerial cables, which vary according to vehicle type, must always
be ordered separately. You will also find all individual parts on
this picture panel for reordering. In the case, the compartments
for the consumables are labelled with the part numbers. The
repair kit is based on the existing changeover heads and pliers
system in the wiring loom repair set -VAS 1978B-.
Note
Additional Information: ⇒ Owner's Manual, repair kit, aerial ca‐
ble -VAS 6720-

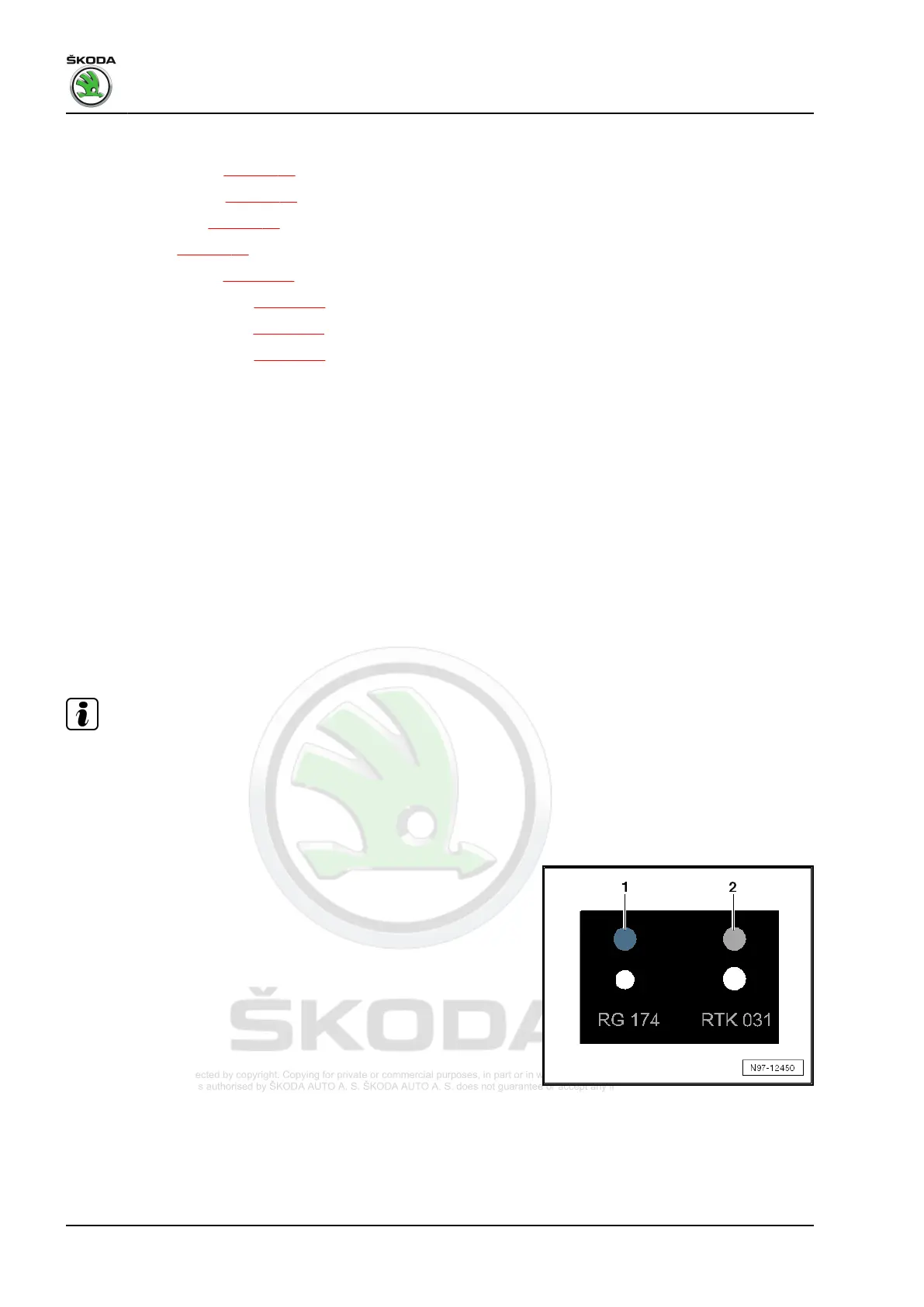

Check the aerial cable:
Before starting the repair, the gauge must be used to determine
which aerial cable is concerned.
♦ -1- system RG 174 = blue
♦ -2- system RTK 031 = grey
In both systems, the positioners of the tool heads are colour-co‐
ded accordingly.
