1.2 Repair solution for corrugated pipe
⇒ c1.2.1 orrugated washer fluid level pipes - vehicles up to
12.2010”, page 26
⇒ c1.2.2 orrugated washer fluid level pipes - vehicles as of
01.2011”, page 28
1.2.1 Repairing corrugated washer fluid level
pipes - vehicles up to 12.2010
Note
♦
When changing the material of the corrugated pipe, the
following procedure cannot be applied to vehicles manufac‐
tured as of 01.2011 (this would result in a leaky connection
point).
♦
The other described procedure ( ⇒ c1.2.2 orrugated washer
fluid level pipes - vehicles as of 01.2011”, page 28 ) can
also be applied to vehicles manufactured up to 01.2011.
♦
Spare parts can be found in the ⇒ Electronic catalogue of
the original parts “ETKA”.

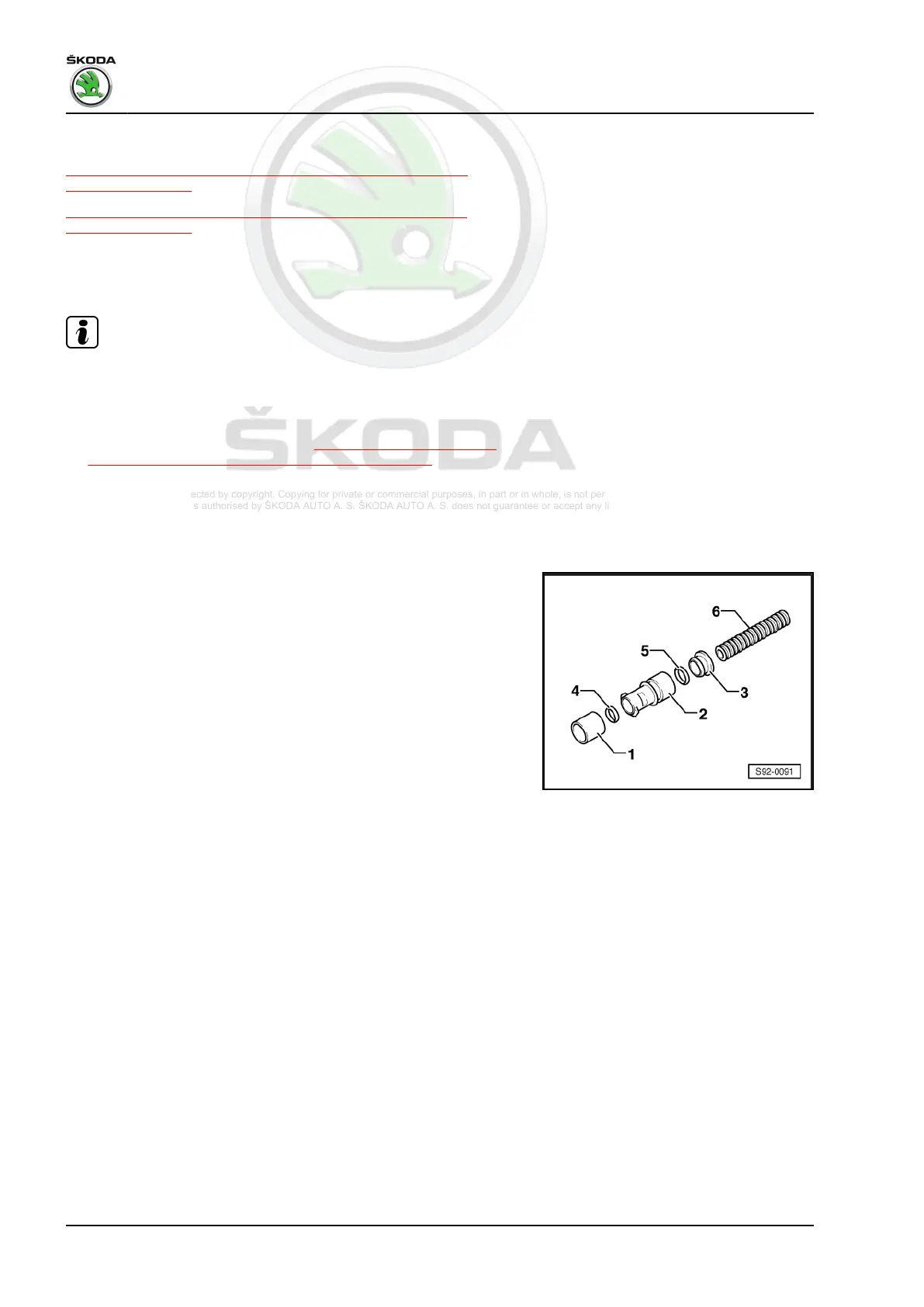

Summary of components of connecting piece
1 - Catch clamp
2 - Clutch
3 - Tensioning ring
4 - O-ring
5 - O-ring
6 - Corrugated pipe
Method:
– Cut the damaged point straight out of the corrugated pipe to
be repaired so that the distance between the pipe ends is
maximum 20 mm.
