3 Repairing socket housings and con‐
nectors
⇒ o3.1 n repairing socket housings and connectors”, page 83
⇒ c3.2 ontacts in socket housings”, page 83
⇒ o3.3 f single cable seals”, page 85
3.1 Notes on repairing socket housings
and connectors
Note
♦
The general instructions for repairing vehicle electrics ⇒
i2.1 nstructions for the repair on the vehicle electrics”, page
41 and the general instructions for wiring loom and plug
repair ⇒ i2.2 nstructions for wiring harness and plug repair ”,
page 42 must be followed.
♦
The appropriate crimp contacts are assigned to the socket
housings on the basis of the part number stamped on the
socket housing. The part numbers of the socket housings
are listed in the ⇒ “ETKA” - Electronic Catalogue of Original
Parts with the applicable crimp contacts.
♦
Damaged socket housings must always be replaced.
3.2 Repairing contacts in socket housings
– Open and, if necessary, unlock the secondary lock of the
socket housing first ⇒ l4.2 ock”, page 88 .

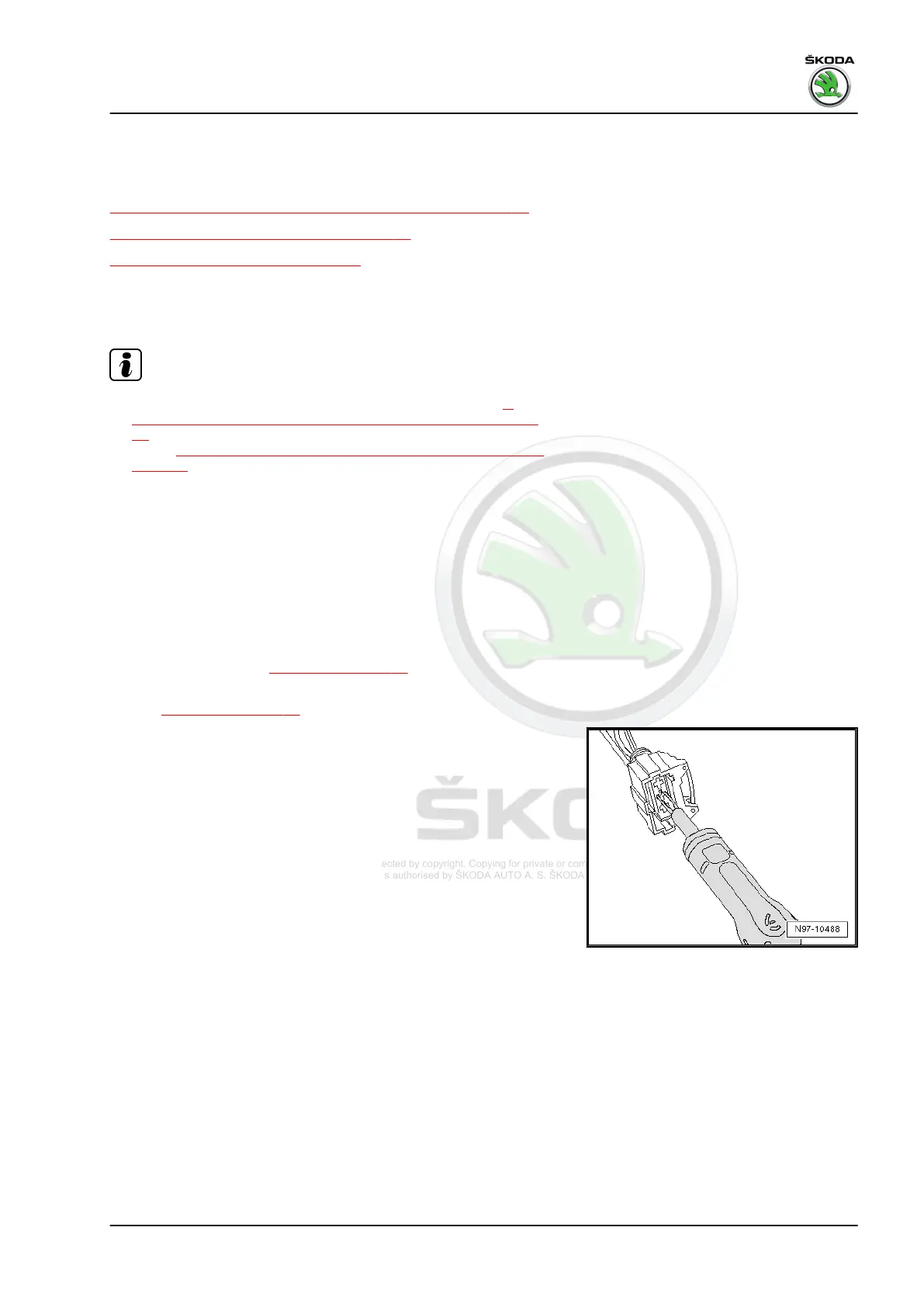

– Unlock the contact (primary lock) with the suitable release
tool ⇒ l4.3 ock”, page 89 .
– Pull the contact on the single cable out of the socket hous‐
ing.
– Take the yellow repair wire with the correct contact from the
wiring loom repair kit for the repair.
– Expose the repair point of the vehicle's wiring loom (approx.
20 cm to each side of the repair point).
– If necessary, remove the ties of the wiring loom, using the
folding knife.
– Insert the new contact of the repair wire into the socket
housing until it clicks into place.
– Fit the single cable seal onto the repair wire.
Citigo 2012 ➤, Citigo-e iV 2020 ➤, Enyaq 2021 ➤, Enyaq Coupe 2021 ➤, Fabia 2000 ...
Electrical System - general notes - Edition 12.2021
3. Repairing socket housings and connectors 83
