5 Overview of Transmission System
⇒ o5.1 f power transmission - front-wheel drive”, page 15
5.1 Overview of power transmission - front-wheel drive

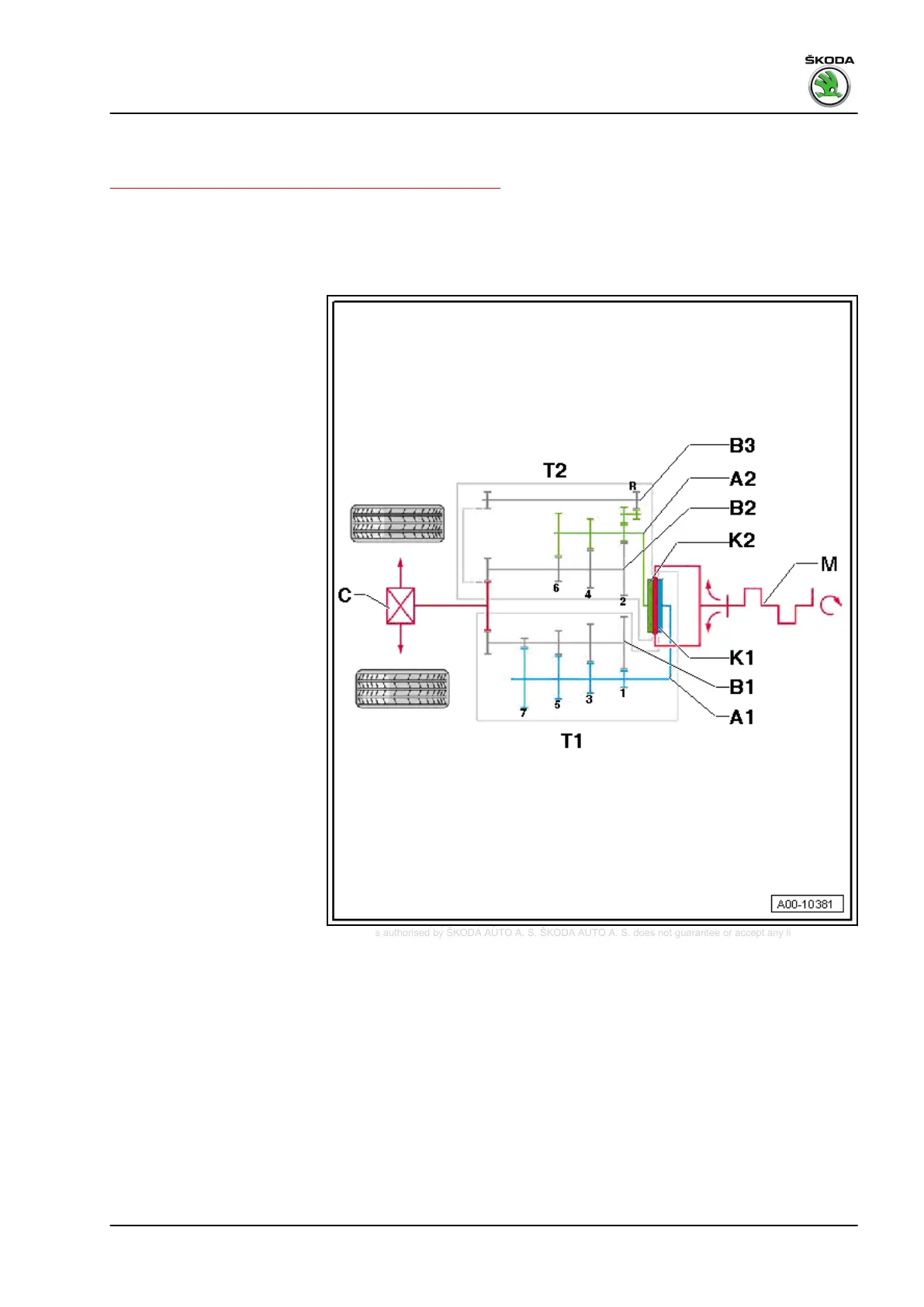

The “7-speed double clutch gearbox DSG - 0CW” has 2 drive
shafts and 3 output shafts.
A1 - 1st drive shaft
A2 - 2nd drive shaft
B1 - 1st output shaft
B2 - 2nd output shaft
B3 - 3rd output shaft
C - Front final drive
K1 - Clutch 1
K2 - Clutch 2
M - Engine
T1 - One part of the gearbox
1
❑ with 1st, 3rd, 5th and
7th gear
T2 - One part of the gearbox
2
❑ with 2nd, 4th, 6th gear
and reverse gear R
Octavia III 2013 ➤, Octavia III 2014 ➤, Rapid NH 2013 ➤, Rapid NH 2014 ➤
Gearbox 0CW-DSG - Edition 07.2022
5. Overview of Transmission System 15
