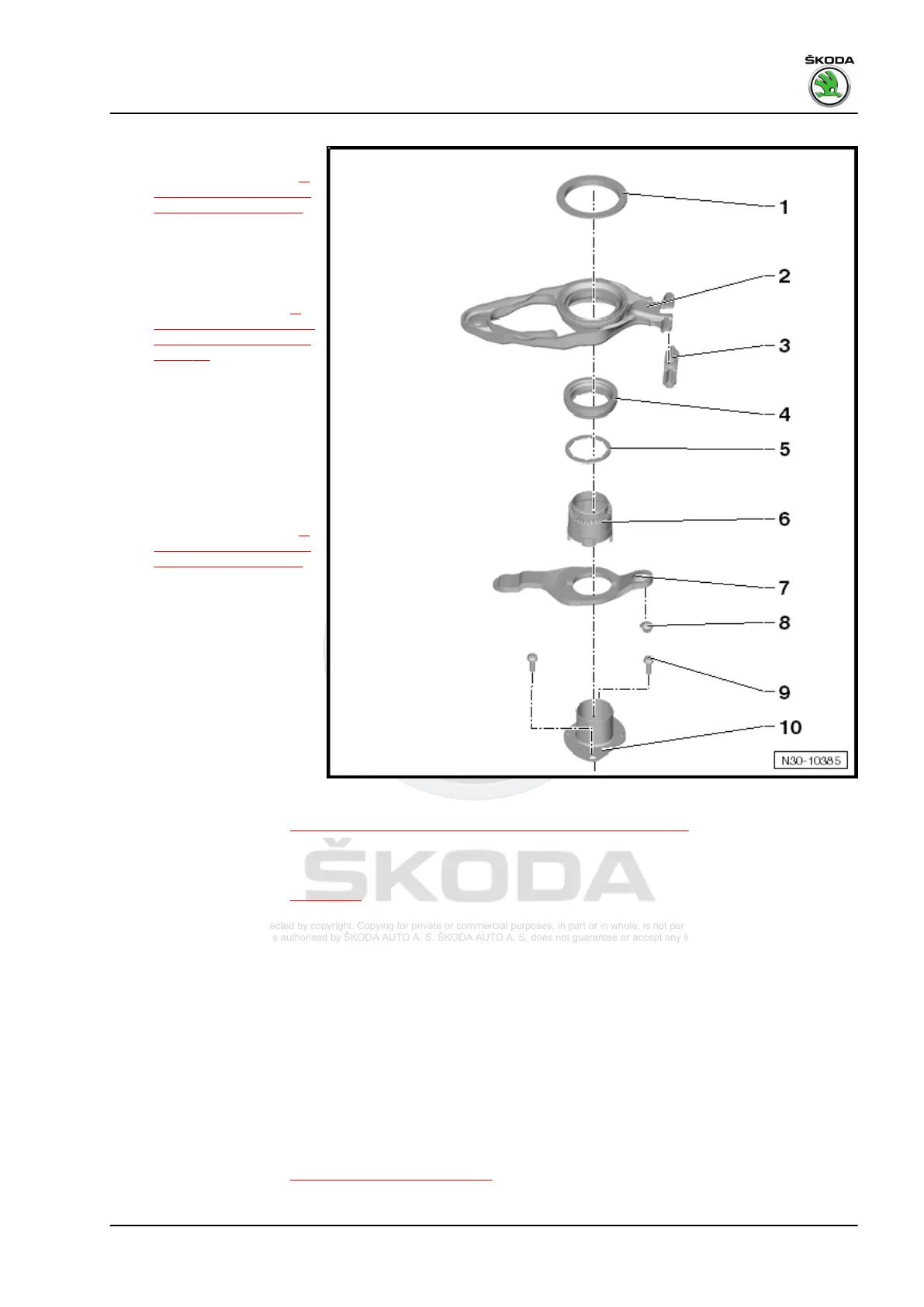

1 - Adjusting washer for “K1”
❑ Determine thickness ⇒
c1.3 lutch engagement
mechanism”, page 22
2 - Large engaging lever for
“K1”
❑ with large engaging
bearing
❑ Remove and install ⇒
a1.2 nd installing clutch
engaging mechanism”,
page 17
3 - Hinge bearing
❑ for large engaging lever
“K1” Pos. 2
❑ cannot be replaced
4 - Small engaging bearing for
“K2”
5 - Adjusting washer for “K2”
❑ Determine thickness ⇒
c1.3 lutch engagement
mechanism”, page 22
6 - Guide bushing-top part
❑ for small engaging lev‐
er “K2” Pos. 7
❑ removed and installed
together with a small
engaging lever and
guide bushing lower
part - Pos. 7 and Pos.
10
7 - Small engaging lever for
“K2”
❑ removed and installed
with guide bushing upper and lower part - Pos. 6 and Pos. 10
❑ Remove and install ⇒ a1.2 nd installing clutch engaging mechanism”, page 17
8 - Ball stud
❑ for small engaging lever for “K2” - Pos. 7
❑ Remove and install ⇒ page 23
9 - Screw
❑ Replace after removal
❑ 8 Nm + 90°
10 - Guide bushing-bottom part
❑ for small engaging lever for “K2” - Pos. 7
❑ is removed and installed together with the small engaging lever and guide bushing upper part - Pos. 6
1.2 Removing and installing clutch engag‐
ing mechanism
Removing
– Remove double clutch ⇒ d2.2 ouble clutch”, page 40 .
– Remove large engaging lever and small engaging bearing.
Octavia III 2013 ➤, Octavia III 2014 ➤, Rapid NH 2013 ➤, Rapid NH 2014 ➤
Gearbox 0CW-DSG - Edition 07.2022
1. Clutch operation 17
