Section 1 Operation

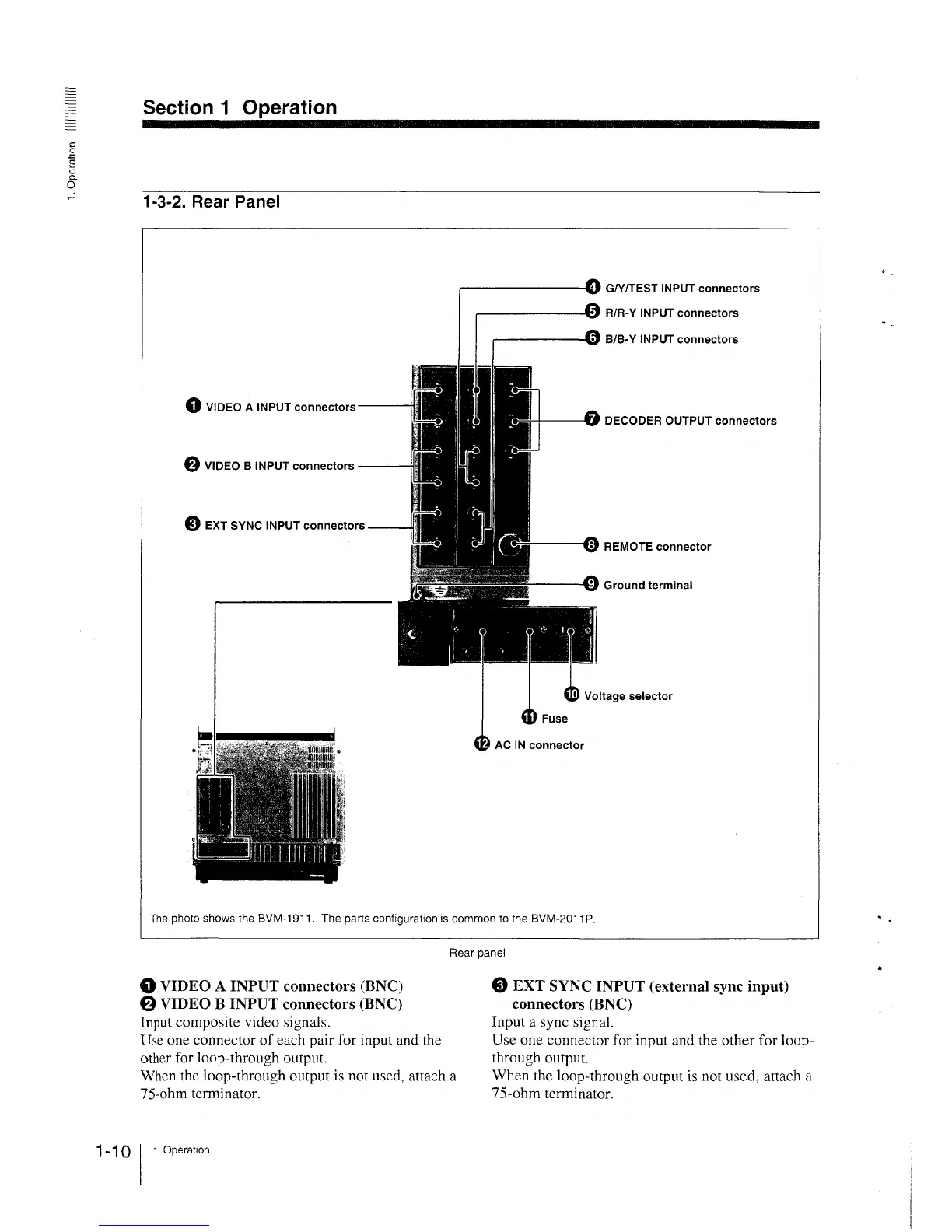

1-3-2. Rear Panel
r---------'i GM/TEST INPUT connectors
r--------.l!J• 8/8-Y INPUT connectors
0 VIDEO A INPUT connectors----'
f} VIDEO B INPUT connectors ---
Q EXT SYNC INPUT connectors
---0 REMOTE connector
' Voltage selector
AC IN connector
The photo shows the BVM-1911. The parts configuration is common to the BVM-2011 P.
Rear panel
0 VIDEO A INPUT connectors (BNC)
8 VIDEO B INPUT connectors (BNC)
Input composite video signals.
Use one connector of each pair for input and the
other for loop-through output.
When the loop-through output is not used, attach a
75-ohm terminator.
1-1 Q 11. Operation
Q EXT SYNC INPUT (external sync input)
connectors (BNC)
Input a sync signal.
Use one connector for input and the other for loop-
through output.
When the loop-through output is not used, attach a
75-ohm terminator.
