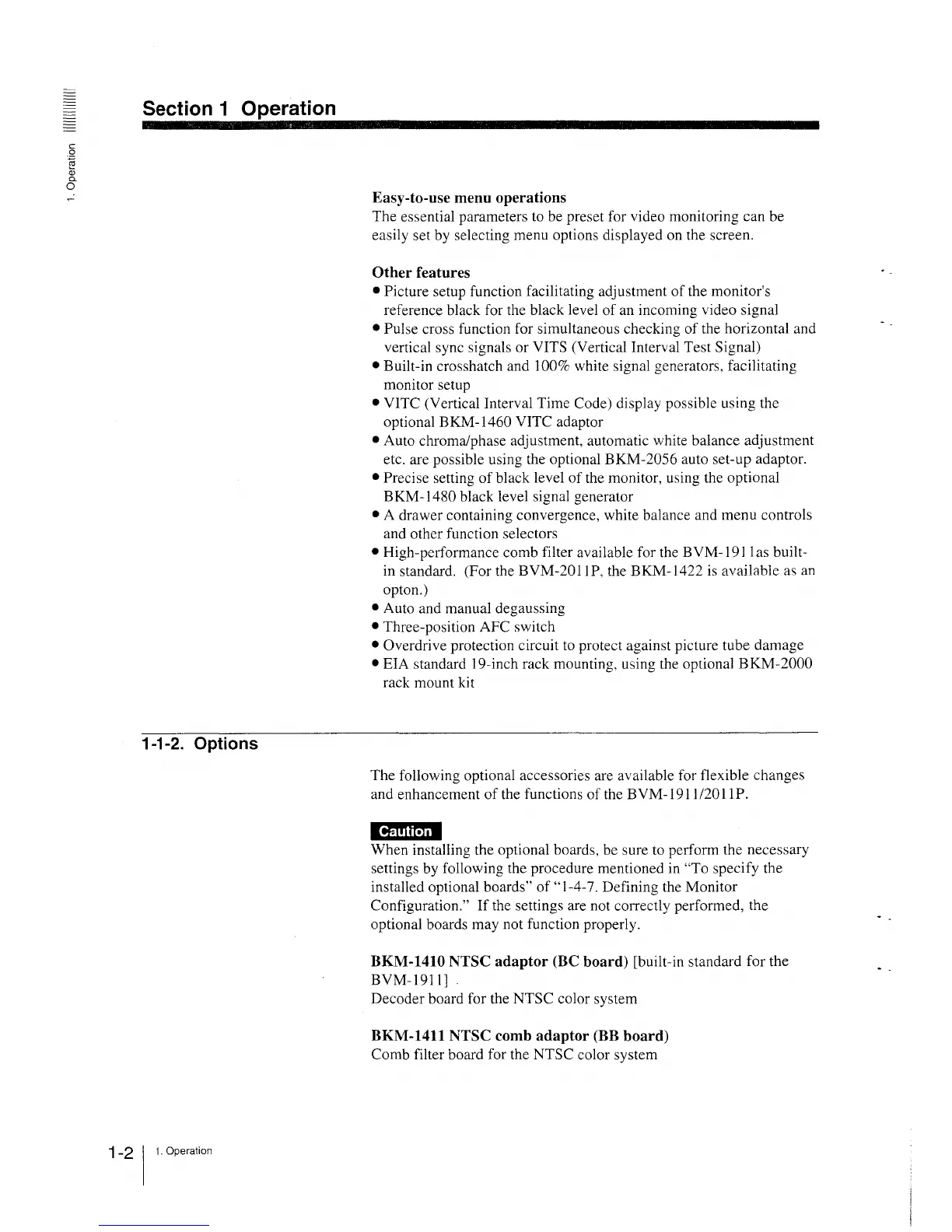

Section 1 Operation
1-1-2. Options
1-211. Operation
Easy-to-use menu operations
The essential parameters to be preset for video monitoring can be
easily set by selecting menu options displayed on the screen.
Other features
• Picture setup function facilitating adjustment of the monitor's
reference black for the black level of an incoming video signal
• Pulse cross function for simultaneous checking of the horizontal and
vertical sync signals or VITS (Vertical Interval Test Signal)
• Built-in crosshatch and 100% white signal generators, facilitating
monitor setup
• VITC (Vertical Interval Time Code) display possible using the
optional BKM-1460 VITC adaptor
• Auto chroma/phase adjustment, automatic white balance adjustment
etc. are possible using the optional BKM-2056 auto set-up adaptor.
• Precise setting of black level of the monitor, using the optional
BKM-1480 black level signal generator
• A drawer containing convergence, white balance and menu controls
and other function selectors
• High-performance comb filter available for the BVM-1911 as built-
in standard. (For the BVM-201 IP, the BKM-1422 is available as an
opton.)
• Auto and manual degaussing
• Three-position AFC switch
• Overdrive protection circuit to protect against picture tube damage
• EIA standard 19-inch rack mounting, using the optional BKM-2000
rack mount kit
The following optional accessories are available for flexible changes
and enhancement of the functions of the BVM-1911/201 lP.
lffiil!Mii
When installing the optional boards, be sure to perform the necessary
settings by following the procedure mentioned in "To specify the
installed optional boards" of" 1-4-7. Defining the Monitor
Configuration." If the settings are not correctly performed, the
optional boards may not function properly.
BKM-1410 NTSC adaptor (BC board) [built-in standard for the
BVM-1911]
Decoder board for the NTSC color system
BKM-1411 NTSC comb adaptor (BB board)
Comb filter board for the NTSC color system
