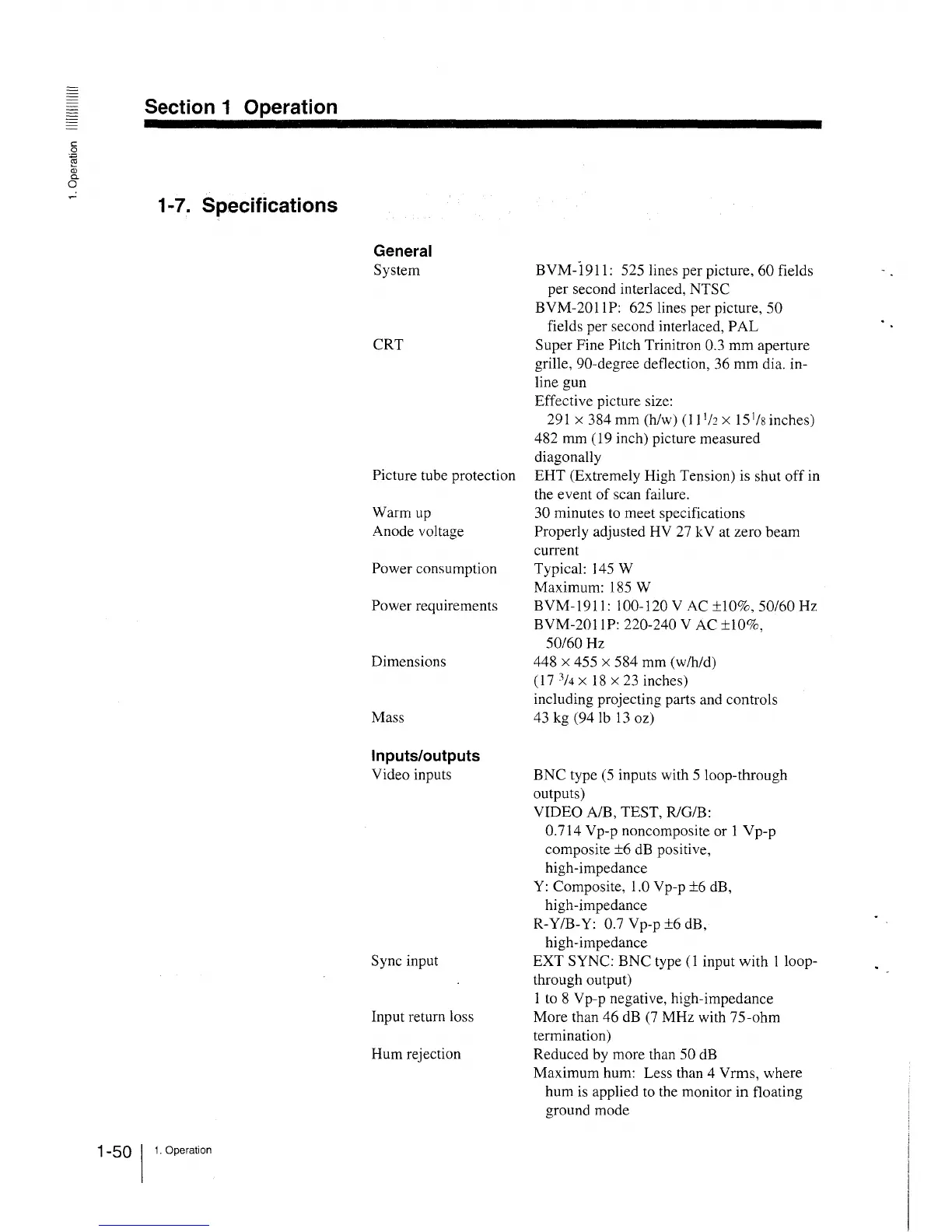

Section 1 Operation
1-7. Specifications
1-50 , 1. Operation
General
System
CRT
Picture tube protection
Warm up
Anode voltage
Power consumption
Power requirements
Dimensions
Mass
Inputs/outputs
Video inputs
Sync input
Input return loss
Hum rejection
BVM--1911: 525 lines per picture, 60 fields
per second interlaced, NTSC
BVM-201 lP: 625 lines per picture, 50
fields per second interlaced, PAL
Super Fine Pitch Trinitron 0.3 mm aperture
grille, 90-degree deflection, 36 mm dia. in-
line gun
Effective picture size:
291 x 384 mm (h/w) (11 ½ x 15
1
/s inches)
482 mm ( 19 inch) picture measured
diagonally
EHT (Extremely High Tension) is shut off in
the event of scan failure.
30 minutes to meet specifications
Properly adjusted HV 27 kV at zero beam
current
Typical: 145 W
Maximum: 185 W
BVM-1911: 100-120 V AC ±10%, 50/60 Hz
BVM-201 IP: 220-240 V AC ±10%,
50/60 Hz
448 x 455 x 584 mm (w/h/d)
(17
3
/4 x I 8 x 23 inches)
including projecting parts and controls
43 kg (94 lb 13 oz)
BNC type (5 inputs with 5 loop-through
outputs)
VIDEO A/B, TEST, R/G/B:
0.714 Vp-p noncomposite or 1 Vp-p
composite ±6 dB positive,
high-impedance
Y: Composite, 1.0 Vp-p ±6 dB,
high-impedance
R-Y/B-Y: 0.7 Vp-p ±6 dB,
high-impedance
EXT SYNC: BNC type (1 input with 1 loop-
through output)
1 to 8 Vp-p negative, high-impedance
More than 46 dB (7 MHz with 75-ohm
termination)
Reduced by more than 50 dB
Maximum hum: Less than 4 Vrms, where
hum is applied to the monitor in floating
ground mode
