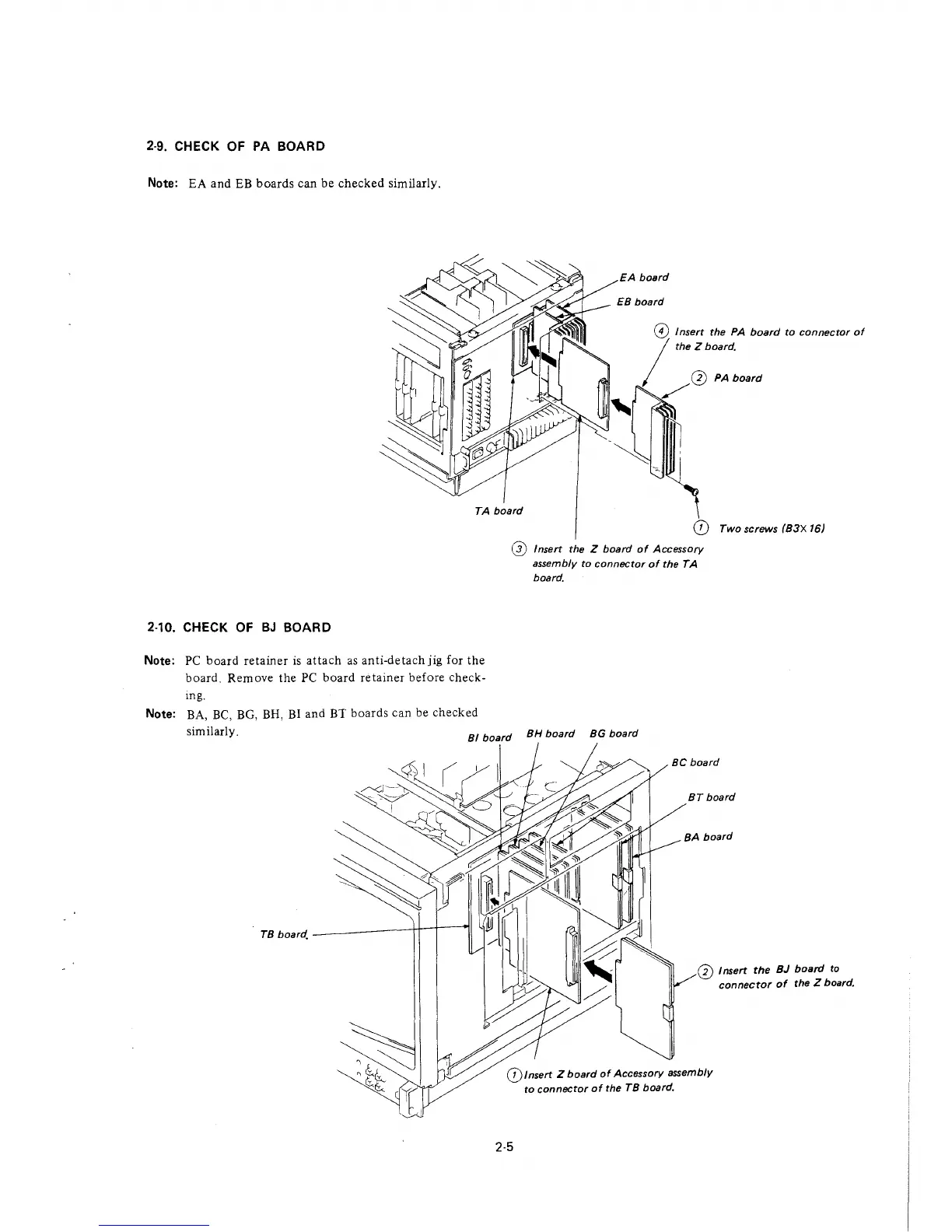

2-9. CHECK OF PA BOARD
Note: EA and EB boards can be checked similarly.
EA board
EB board
0 Insert the PA board to connector of
I
the Z board.
/
0 PA board
TA board
2-10. CHECK OF BJ BOARD
Note: PC board retainer is attach as anti-detach jig for the
board. Remove the PC board retainer before check-
ing.
Note: BA, BC, BG, BH, BI and BT boards can be checked
(}) Two screws (83X 16)
(j) Insert the Z board of Accessory
assembly to connector of the TA
board.
similarly.
Bl board
SH board
BG board
TB board_ --------ff-T-i[
BT board
BA board
0 Insert the BJ board to
connector of the Z board.
(})Insert Z board of Accessory assembly
to connector of the TB board.
2-5
