Sony DCR-TRV9 Service Manual

5-59
3-6. AUDIO SYSTEM ADJUSTMENTS
[Connection of Audio System Measuring Devices]

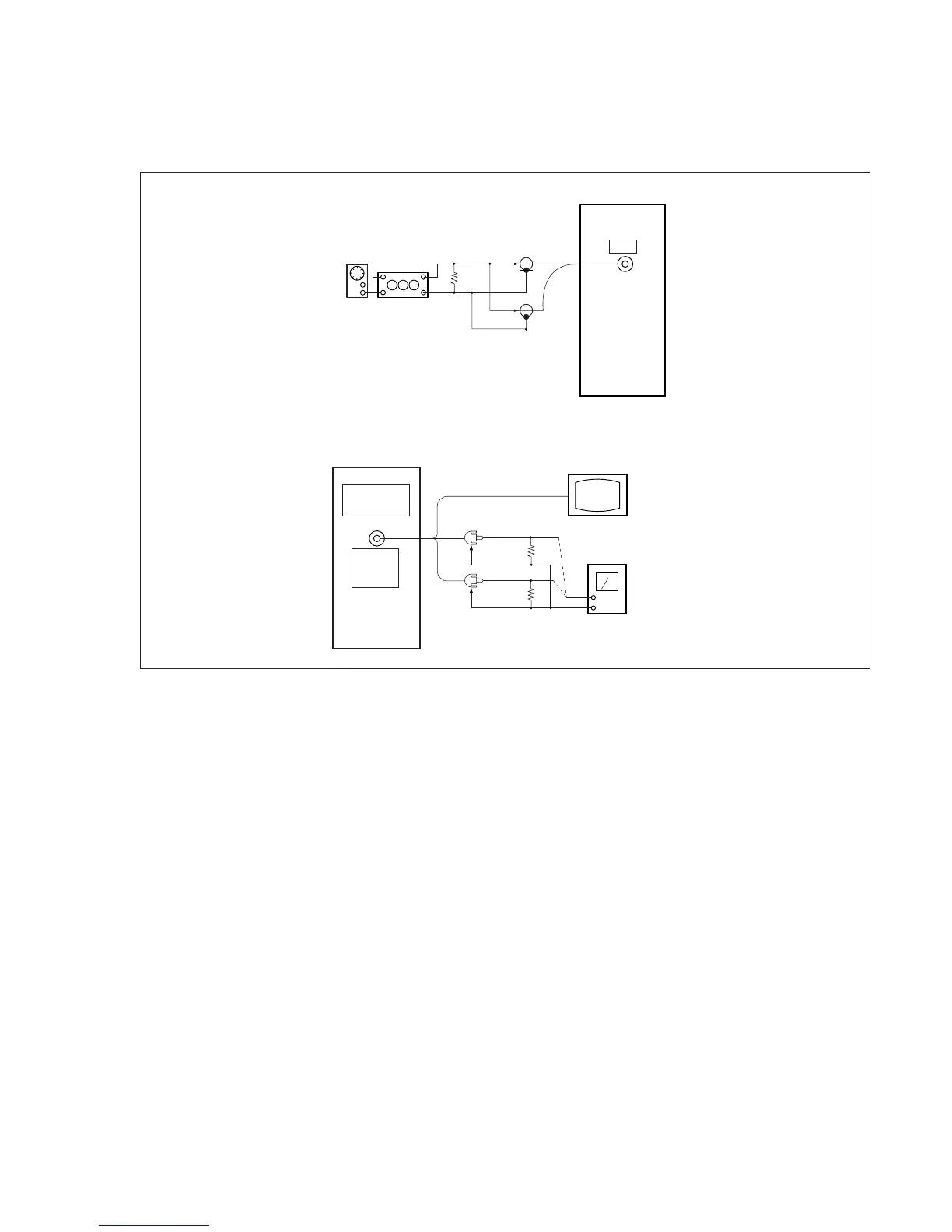

Connect the audio system measuring devices as shown in Fig. 5-3-22.
Fig. 5-3-22
Recording (Camera mode)
Audio oscillator
Attenuator
600
Ω
Left
Right
Main unit
MIC
600
Ω : 270 Ω (1-249-410-11) + 330 Ω (1-249-411-11)
Main unit
AUDIO/
VIDEO
OUT
Left (White)
Right
47k
Ω
47k Ω
Video (Yellow)
TV monitor
Audio level meter
or Distortion meter
47k
Ω (1-249-437-11)
Playback
(Red)
