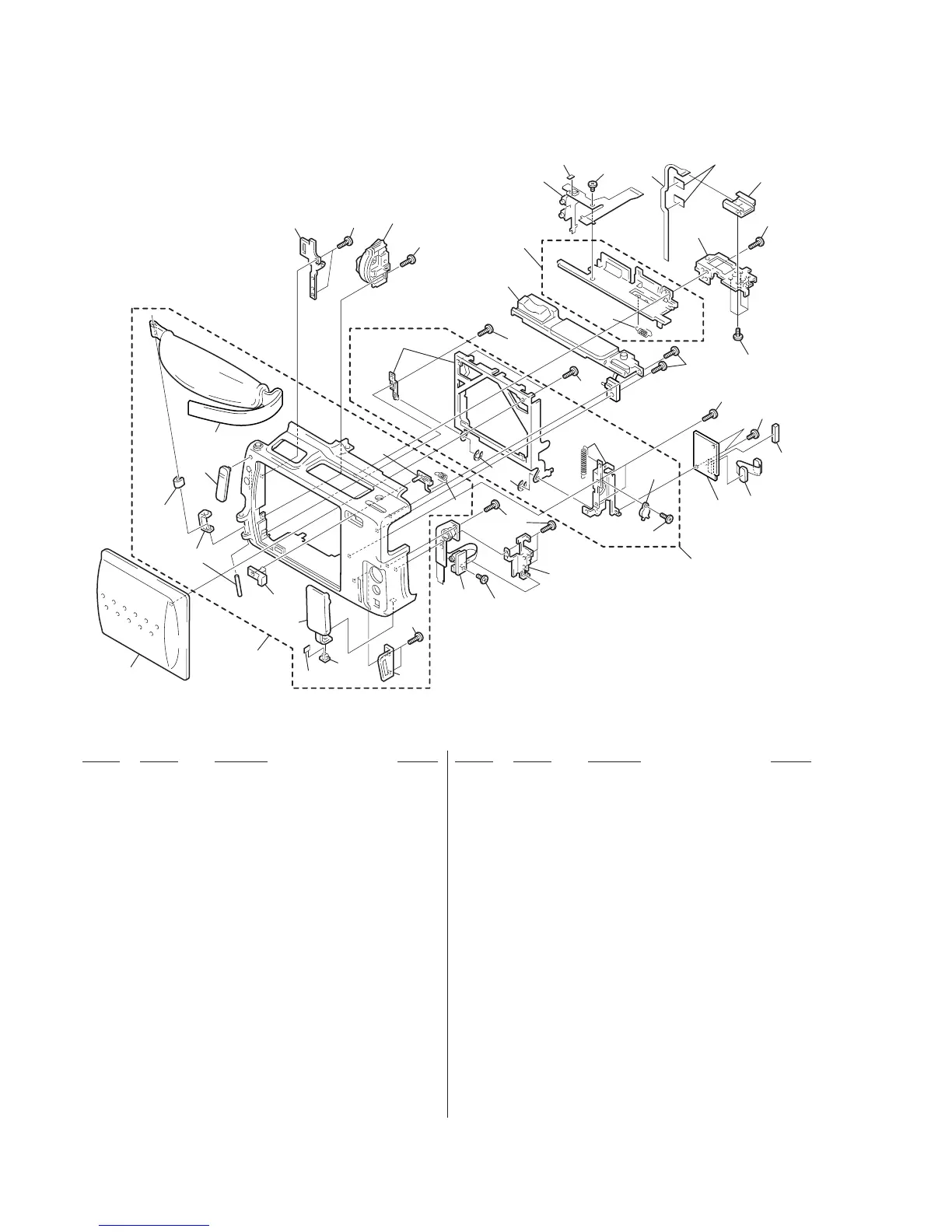

6-1-6. CABINET (L) SECTION
251
252
253
254
279
255
256
257
278
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
275
275
275
275
275
275
275
275
276
281
277
280
277
277
not supplied
not supplied
not supplied
not supplied
not supplied
not
supplied
277
251 3-988-444-01 LID, CASSETTE
252 X-3948-681-1 CABINET (L) ASSY (TRV9E:AEP,UK)
252 X-3948-636-1 CABINET (L) ASSY
(TRV9/TRV9E:EXCEPT AEP,UK)
* 253 3-988-540-01 BRACKET, BELT
254 3-988-447-01 PIN, JC
255 3-988-427-01 COVER (AV), JACK
256 3-988-428-01 BUTTON, EJECT
257 3-988-541-01 COVER (L), JACK
258 3-988-429-01 LEVER, EJECT
259 3-988-430-01 SPRING, EXTENSION
* 260 3-988-443-01 SHEET METAL, STRAP
261 1-475-706-21 SWITCH BLOCK, CONTROL (PS4580)
(TRV9/TRV9E:EXCEPT AEP,UK)
261 1-475-706-31 SWITCH BLOCK, CONTROL (PS4580)
(TRV9E:AEP,UK)
262 1-475-704-21 SWITCH BLOCK, CONTROL (FK4580)
(TRV9/TRV9E:EXCEPT AEP,UK)
262 1-475-704-31 SWITCH BLOCK, CONTROL (FK4580)
(TRV9E:AEP,UK)
* 263 X-3948-483-1 SLIDER ASSY
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
264 1-669-515-21 FP-676 FLEXIBLE BOARD
265 1-669-510-11 FP-653 FLEXIBLE BOARD
266 1-774-867-21 CONNECTOR,EXTERNAL(HOT SHOE)8P
* 267 3-988-538-01 FRAME, SHOE
268 A-7073-519-A VI-148 BOARD, COMPLETE (TRV9)
268 A-7073-620-A VI-148 BOARD, COMPLETE
(TRV9E:EXCEPT AEP,UK)
269 1-669-507-21 FP-648 FLEXIBLE BOARD
(TRV9/TRV9E:EXCEPT AEP,UK)
* 270 X-3948-482-1 CS ASSY
271 4-634-290-11 DAMPER
272 7-624-104-04 STOP RING 2.0, TYPE -E
* 273 3-988-537-01 FRAME, JACK
274 1-669-506-21 FP-647 FLEXIBLE BOARD
275 3-948-339-61 TAPPING
276 3-374-657-01 SCREW (M2X2)
277 3-968-729-81 SCREW (M2), LOCK ACE, P2
278 3-989-953-01 STOPPER, BELT
* 279 3-050-908-01 SPACER (AV)
* 280 3-050-356-01 CUSHION, VI
* 281 3-051-022-01 SHEET (F), ELECTROSTATIC
To Next Page
