Sony DCR-TRV9 - Mechanism Deck; Cabinet (L) Assembly; Flexible Board

2-5

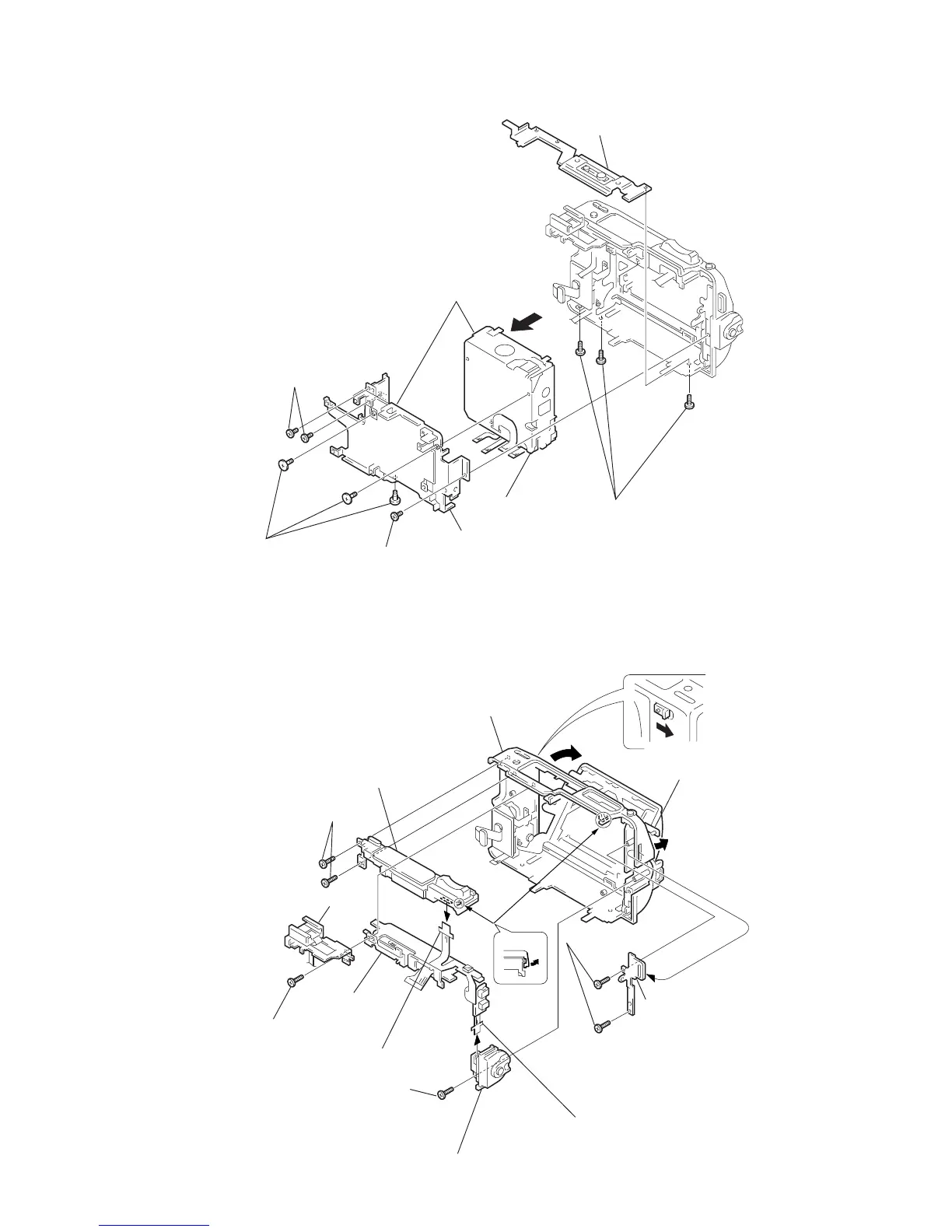

2-10.MECHANISM DECK
2-11.CABINET (L) ASSEMBLY
4 Remove the MD frame assembly
and mechanism deck.
3 Screw
(M2
× 3)
5 Stepped screw (M2)
3 Screw (M2 × 3)
1 Screw (M2 × 4)
6 MD frame assembly
7 Mechanism deck
2 Frame (lower), tripod screw
4
!£ Screw (B2 × 5)
1 Screw (B2 × 5)
7 Screw (B2 × 5)
5 Screw (B2 × 5)
!¢ Function switch block
(FK4580)
4 Open the cassette lid.
8 Jack cover (L)
2 Shoe assembly
!¡ Slider assembly
9 Function switch block (PS4580)
!º FP-676
flexible board
6 Strap metal shee
t
Claws
!™ FP-676
flexible board
3
Cabinet (L) assembly
