Sony DCR-TRV9 - Printed Wiring Board and Schematic Diagrams

DCR-TRV9/TRV9E

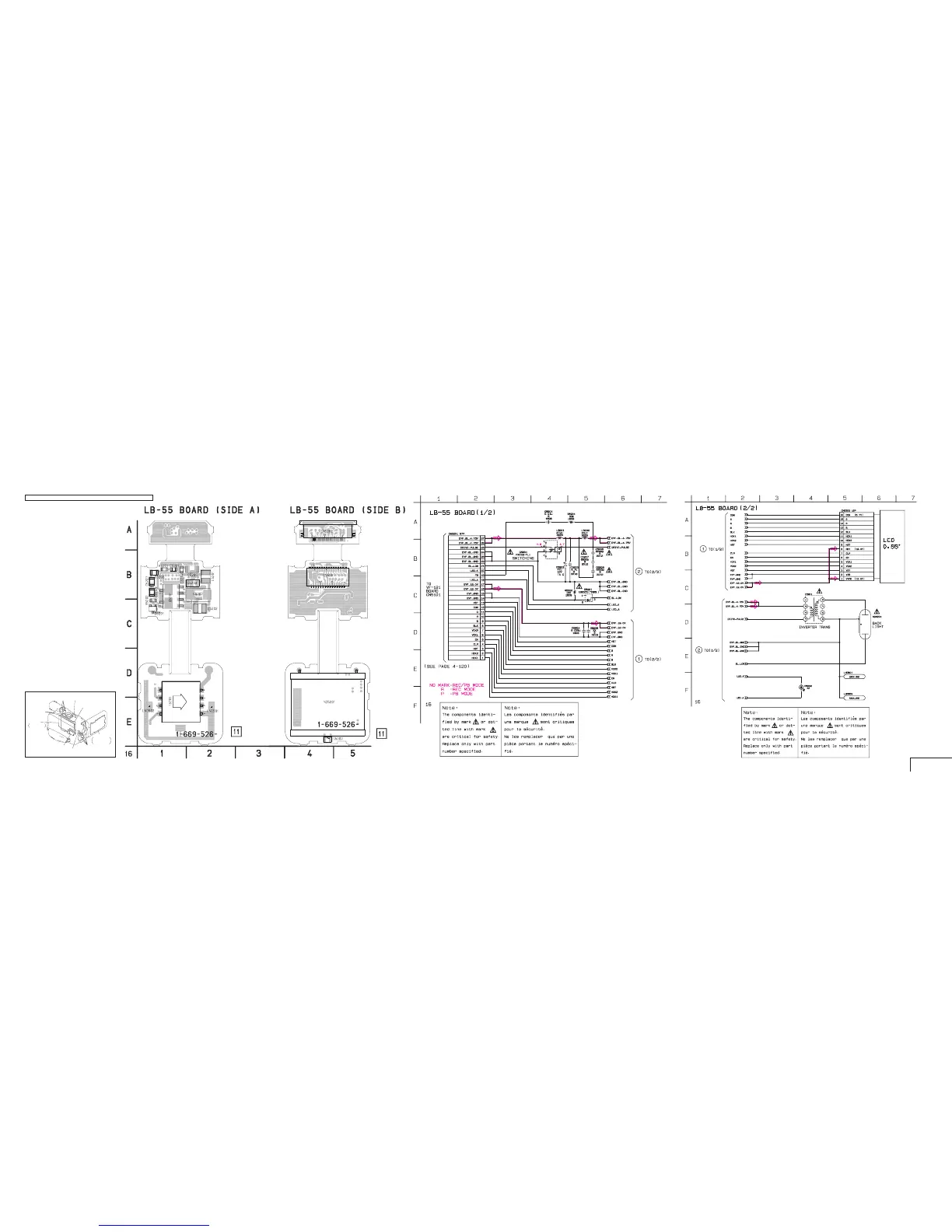

LB-55 (EVF BACK LIGHT) PRINTED WIRING BOARD AND SCHEMATIC DIAGRAMS
— Ref. No.: LB-55 Board; 60,000 Series —
VF-121
(COLOR EVF)
AU-202
AUDIO DSP,
MIC AMP
LI-64
(Li BATT)
LB-55
(EVF BACK LIGHT)
FP-657
(FUNCTION SWITCH)
KY-39
(PANEL FUNCTION SWITCH
)
PD-98
LCD RGB
DECODER,
BACK LIGHT
MA-322
(MIC AMP)
MF-4580
(MANUAL FOCUS)
4-111 4-112 4-113 4-114
EVF BACK LIGHT
LB-55
LB-55 BOARD
C5201 B-1
C5202 B-2
C5203 B-2
C5204 B-1
C5206 B-1
C5207 B-1
C5208 B-1
CN5201 B-4
CN5202 B-4
D5201 C-1
L5201 B-2
L5202 C-2
ND5201 E-4
Q5201 B-1
R5201 B-1
R5202 C-1
T5201 E-1
4-115
There are few cases that the part printed on this diagram isn’t mounted in this model.
