6-4

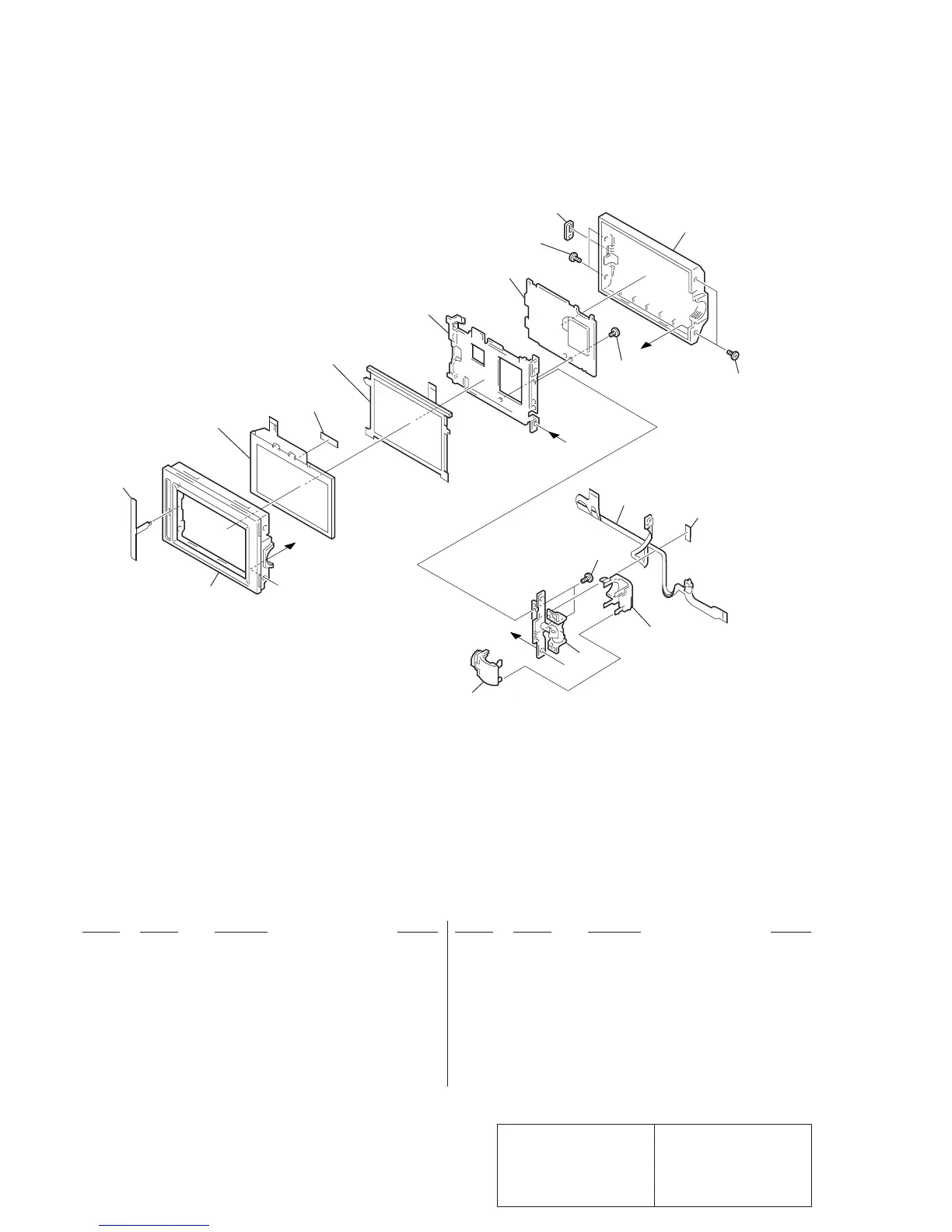

6-1-4. LCD SECTION
a
a
b
b
c
c
151
152
153
154
155
156
157
158
159
160
161
162
164
162
162
163
LCD901
ND901
PD-98
Board
151 X-3948-677-1 CABINET (M) ASSY, P
152 1-475-708-21 SWITCH BLOCK, CONTROL (BV4580)
* 153 3-050-359-01 SHEET, LCD INSULATING
* 154 X-3948-676-1 FRAME ASSY, PANEL
155 A-7067-142-A PD-98 BOARD, COMPLETE
156 X-3948-634-1 CABINET (C) ASSY, P (TRV9)
156 X-3948-680-1 CABINET (C) ASSY, P (TRV9E)
157 1-669-508-21 FP-649 FLEXIBLE BOARD
158 3-831-441-11 SHEET, HINGE FLEXIBLE
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
159 3-988-533-01 COVER (FRONT), HINGE
160 X-3948-454-1 HINGE ASSY
161 3-988-534-01 COVER (REAR), HINGE
162 3-968-729-01 SCREW (M2), LOCK ACE, P2
163 3-973-497-11 SCREW (M1.7), 0-NO. +P 2
164 3-988-482-01 COVER, CPC
LCD901 1-803-033-21 INDICATOR MODULE, LIQUID CRYSTAL
! ND901 1-517-754-11 TUBE, FLUORESCENT,COLD CATHODE
Note :
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Note :
Les composants identifiés par
une marque ! sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
To Next Page
