Sony DCR-TRV9 - Audio Process

DCR-TRV9/TRV9E

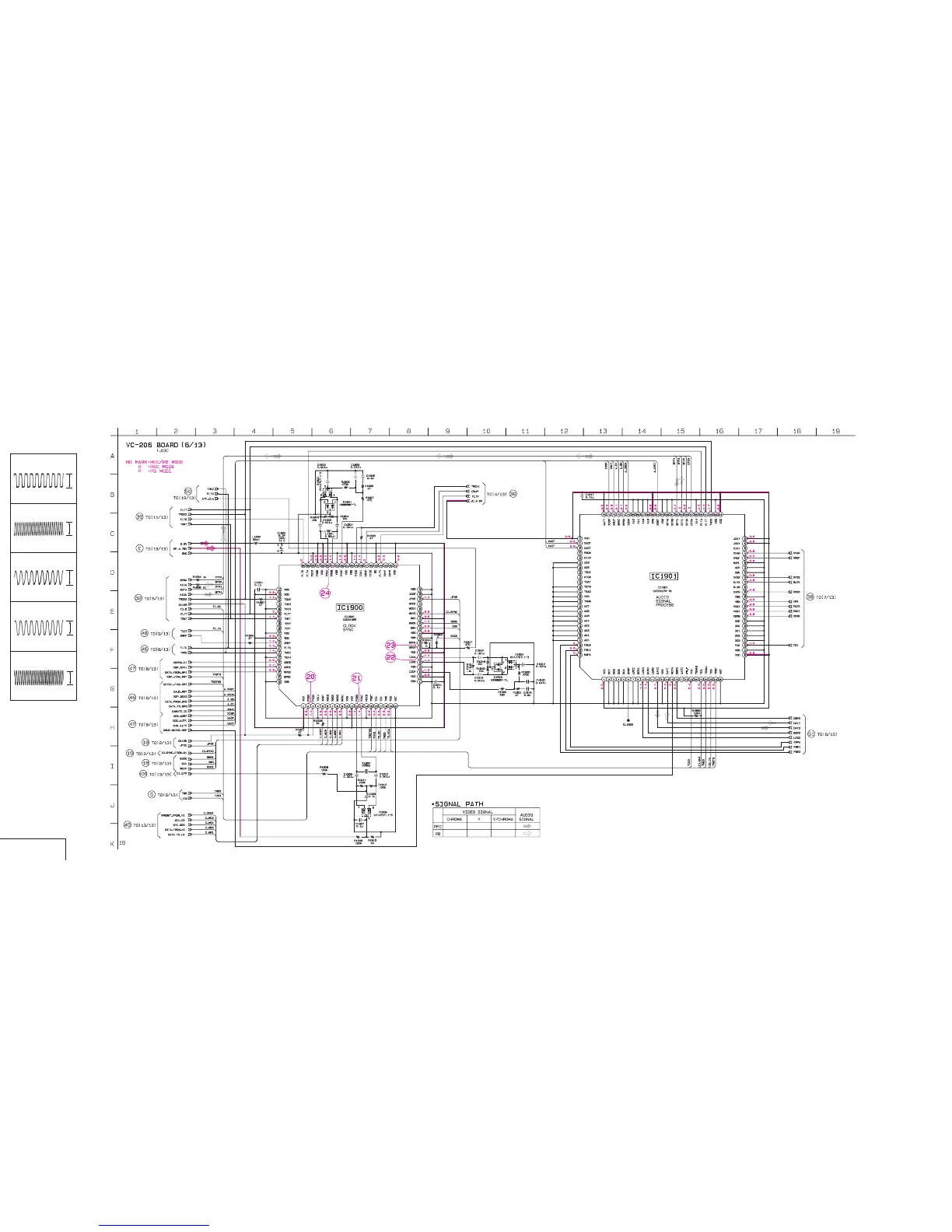

VC-206 (AUDIO PROCESS) SCHEMATIC DIAGRAM
— Ref. No.: VC-206 Board; 10,000 Series —
AUDIO PROCESS
VC-206 (6/13)
4-38 4-39 4-40
VC-206 BOARD (6/13)
CAMERA REC/PB
@º IC1900 2,3 (R1901)
3.2Vp-p
3.2Vp-p
3.2Vp-p
3.4Vp-p
13.5MHz
2.0Vp-p
@¡ IC1900 !™ (X1900)
@™ IC1900 @∞ (L1902)
@£ IC1900 @•,@ª (R1914)
@¢ IC1900 %∞ (L1901)
27MHz
NTSC : 13.5MHz
PAL : 11.74MHz
13.5MHz
NTSC : 36.2MHz
PAL : 38.5MHz
• See page 4-14 for VC-206 BOARD printed wiring board.
