Sony KD-43X85K User Manual

106
SAFETY NOTES SELF DIAGNOSIS FUNCTION TROUBLESHOOTING SERVICE ADJUSTMENT DIAGRAM HANDLING GUIDE
* depend on destinations.
Video signal
Audio signal
Control Bus
Some control lines are left out.
DIAGRAM

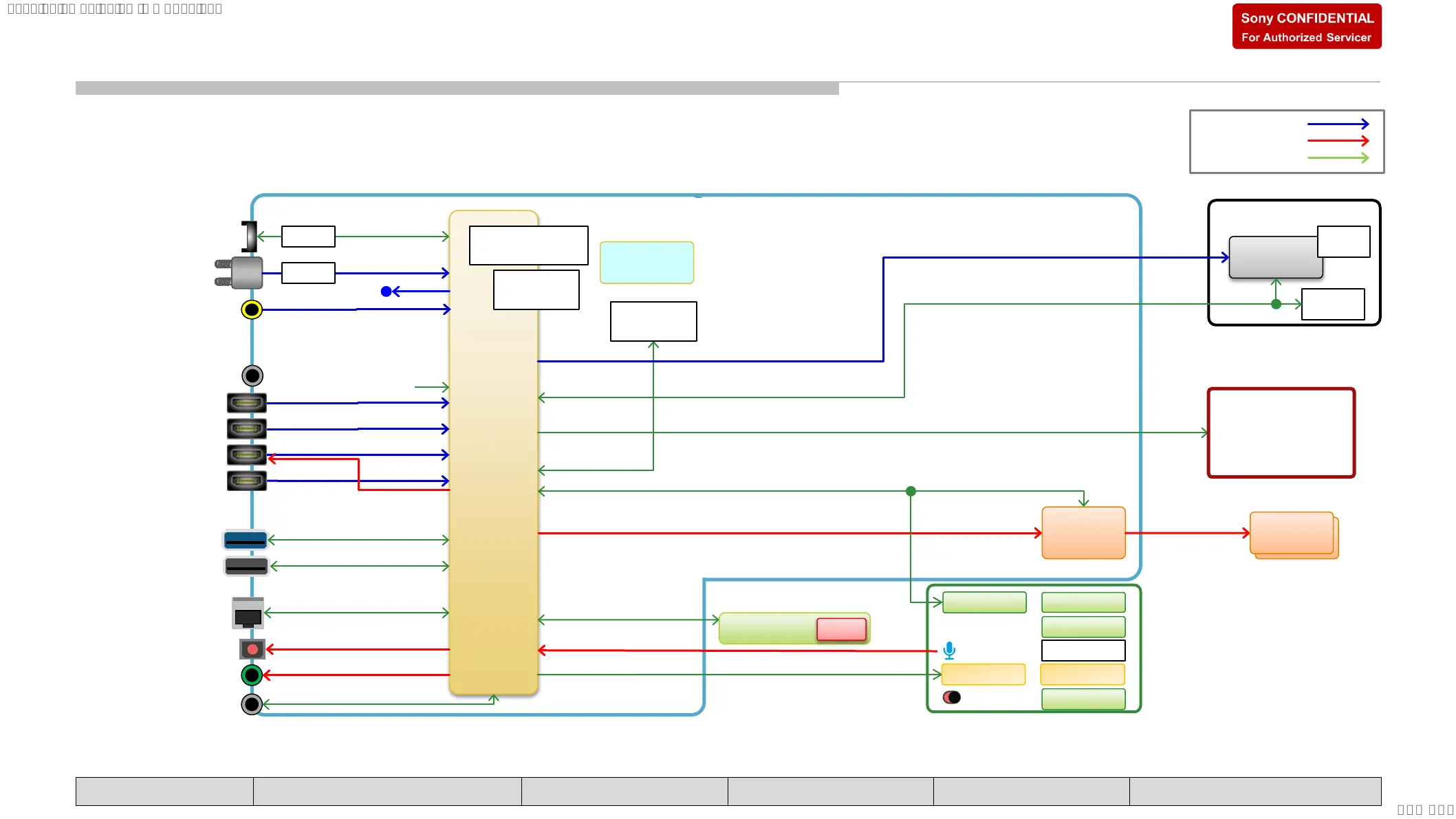

Block Diagram: FH M5 LCD Global Dimming 120Hz
Main
SoC
I2C
UART
BM5A board
Power
Control MCU
I2S
* CI
* RS232C
* IR In
Composite
CEC
*CI
Panel
Vx1 16-lane
Tcon
4K/120p
EEPROM
(Panel ID)
Flash
I2C
HDMI2.1(12G)
x2
HDMI2.0(6G)
x2
D-Amp.
SP
SP
2.0-ch
SPI/CI Link
*Demod
Backlight PWM
GLx board
(PSU + LED Driver)
USB HS
IR RxTemp Sens.
*ACAS
HT2
Light Sens.
Center Key
PDM
PWM
DDCs
LPDDR4
16Gib x 2
Test point
Video
Out
I2C
Ethernet
USB2.0
USB3.0
Optical Out
S/PDIF
ARC/eARC
eMMC
16GB exc. China(B2C)
32GB Only China(B2C)
* RF
(TW: Tuner less)
WiFi/BT
(DHUR-SY63)
Wireless
IC
Mic, Tally: Depend on Spec Code
W/R/*RGB LEDs*Mic Tally LED
*Mic
* HP Out
*Mic Switch
Mic Switch: Depend on Spec Code (except CN)
SYSSET
2022/04/1901:21:05(GMT+09:00)

Sony KD-43X85K Specifications

General

Screen Size	43 inches
Resolution	3840 x 2160 (4K UHD)
Display Type	LCD
HDR	Yes
Refresh Rate	120 Hz
Smart TV	Yes
Operating System	Google TV
HDMI Ports	4
USB Ports	2
Wi-Fi	Yes
Bluetooth	Yes
HDMI 2.1	Yes
Ethernet Port	Yes
Processor	4K HDR Processor X1
HDR Format	Dolby Vision, HDR10, HLG
Weight	10.7 kg (with stand)
