Sony KD-43X85K - Slide Number 50

50
SAFETY NOTES SELF DIAGNOSIS FUNCTION TROUBLESHOOTING SERVICE ADJUSTMENT DIAGRAM HANDLING GUIDE
Checking Point
TROUBLESHOOTING

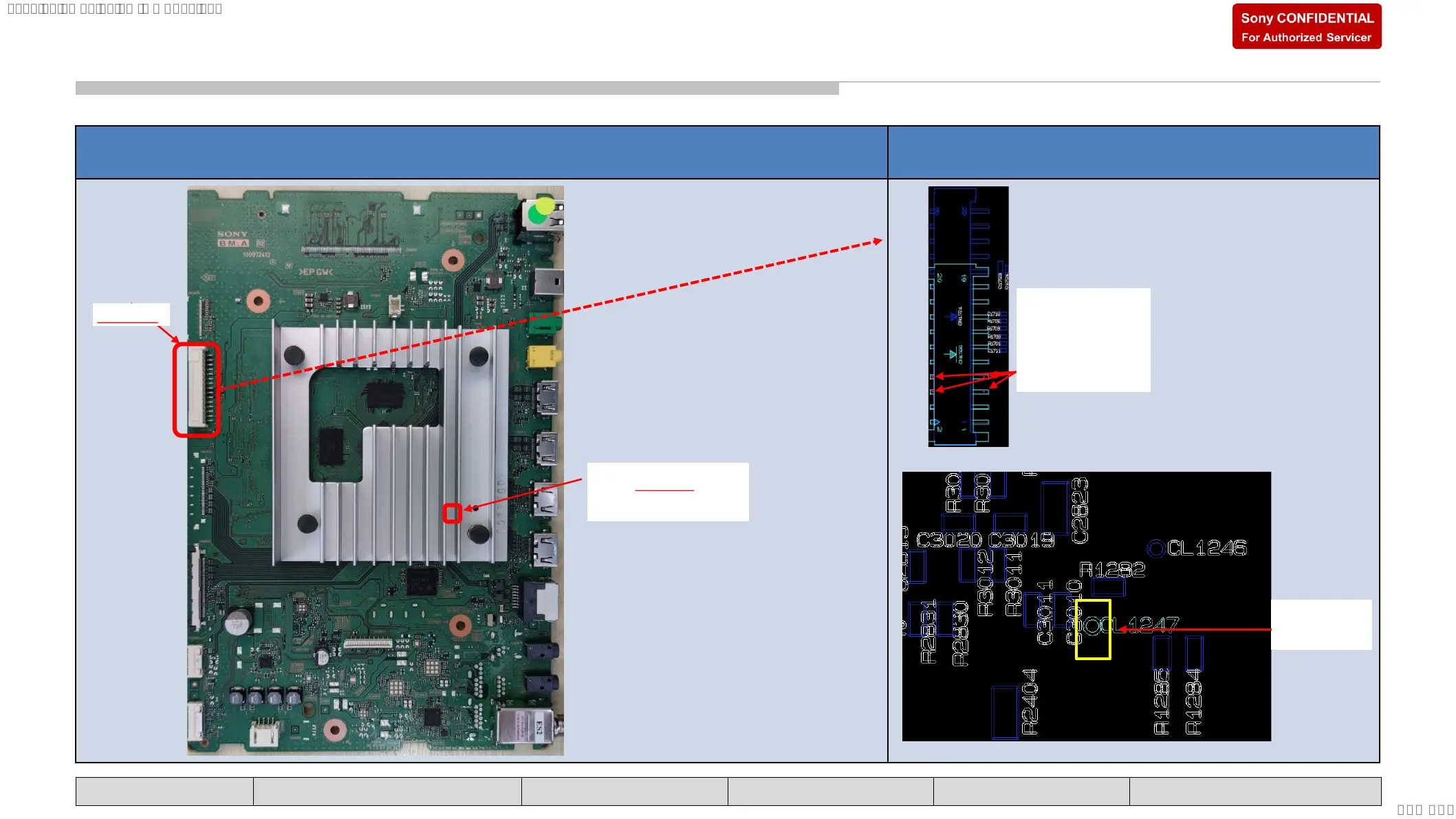

Board PWB (A side) Detail
CN1700
CL1247
(Under Heatsink)
CN1700
Pin 5,6,7,8
12.7V_MAIN
5V_DET at
CL1247
SYSSET
