TROUBLESHOOTING

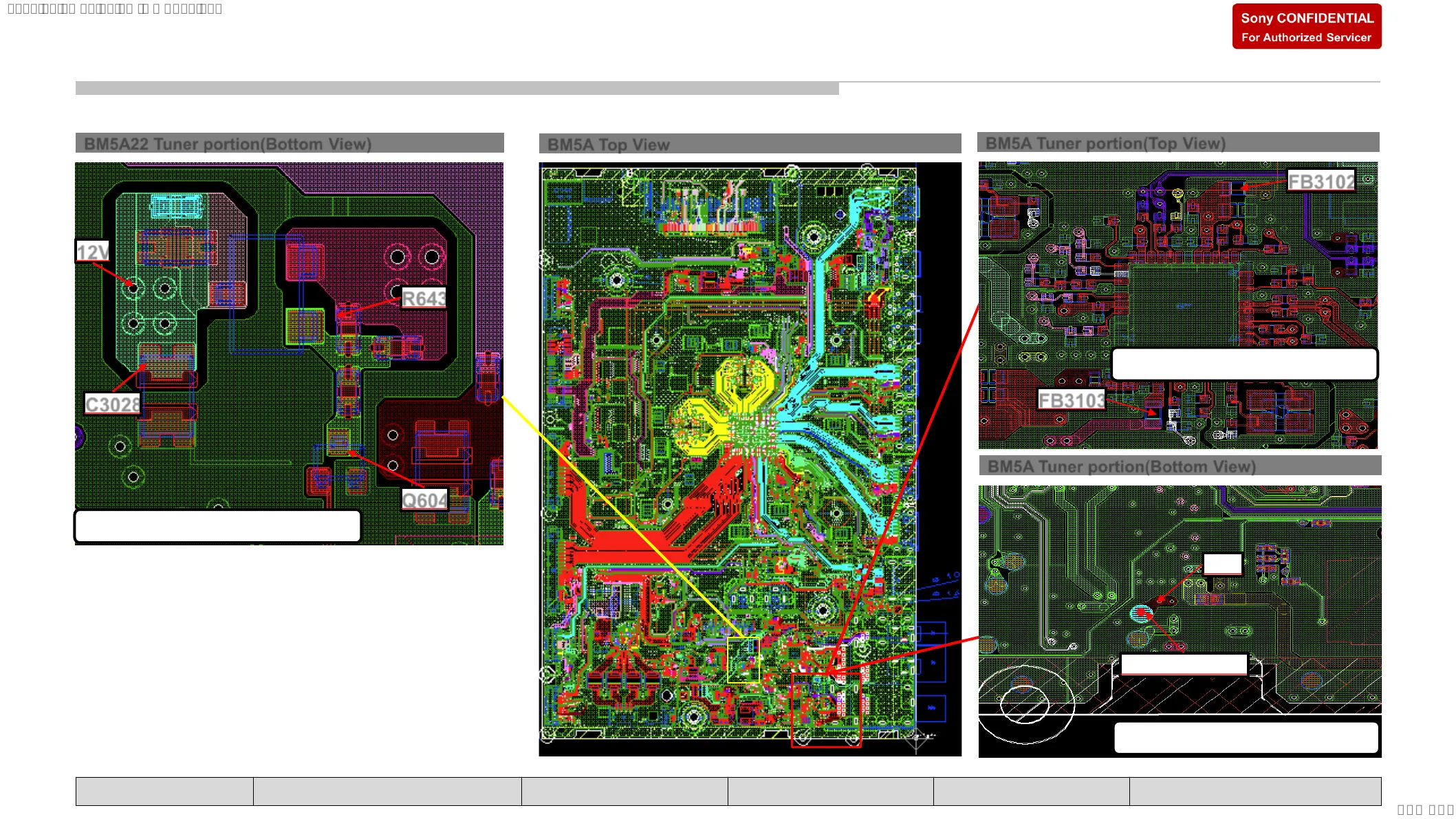

4.4 No Picture at Tuner - Tuner Power Lines: 3.3V, 12.0V, 1.0V
C3028
BM5A22 Tuner portion(Bottom View)
Q604
R643
12V
+12V_LNB Voltage Checking
JL3019 = 3.3V
BM5A Tuner portion(Bottom View)
3.3V
BM5A Tuner portion(Top View)
FB3102
FB3103
1.0V Voltage Checking
3.3V Voltage Checking
BM5A Top View
SYSSET
