TROUBLESHOOTING

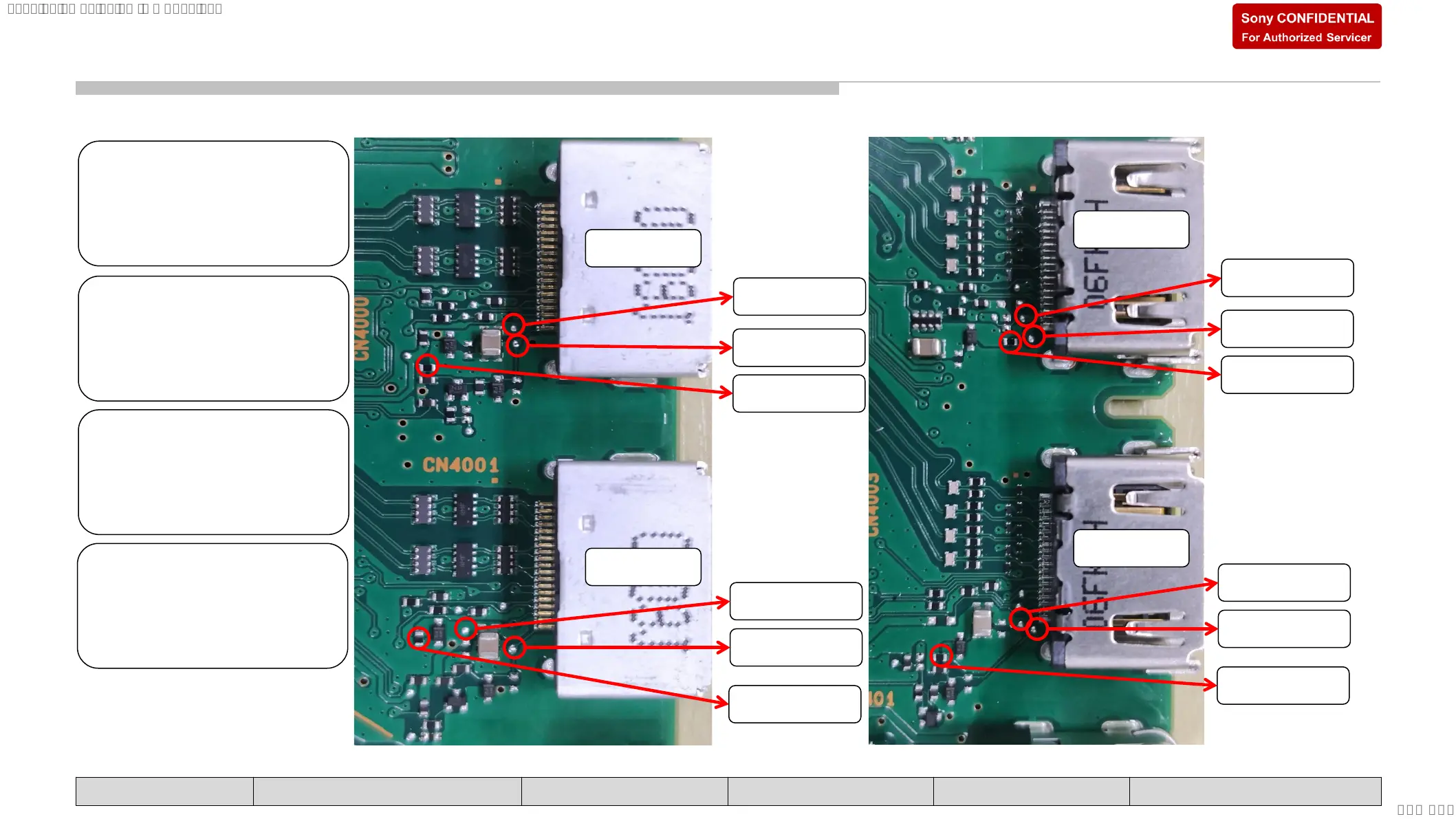

4.5 No Picture: Check Points HDMI 1,2,3 & 4
HDMI 1
+5V part :R4036
+5V line :CL4009
HPD line :CL4008
CL4010
CL4008
CL4011
R4036
R4037
HDMI 2
+5V part :R4037
+5V line :CL4011
HPD line :CL4010
HDMI 1
HDMI 2
CL4009
HDMI 3
+5V part :R4038
+5V line :CL4013
HPD line :CL4012
HDMI 4
+5V part :R4039
+5V line :CL4015
HPD line :CL4014
CL4014
CL4012
CL4015
R4038
R4039
HDMI 3
HDMI 4
CL4013
SYSSET
