SAFETY NOTES SELF DIAGNOSIS FUNCTION TROUBLESHOOTING SERVICE ADJUSTMENT DIAGRAM HANDLING GUIDE
TROUBLESHOOTING

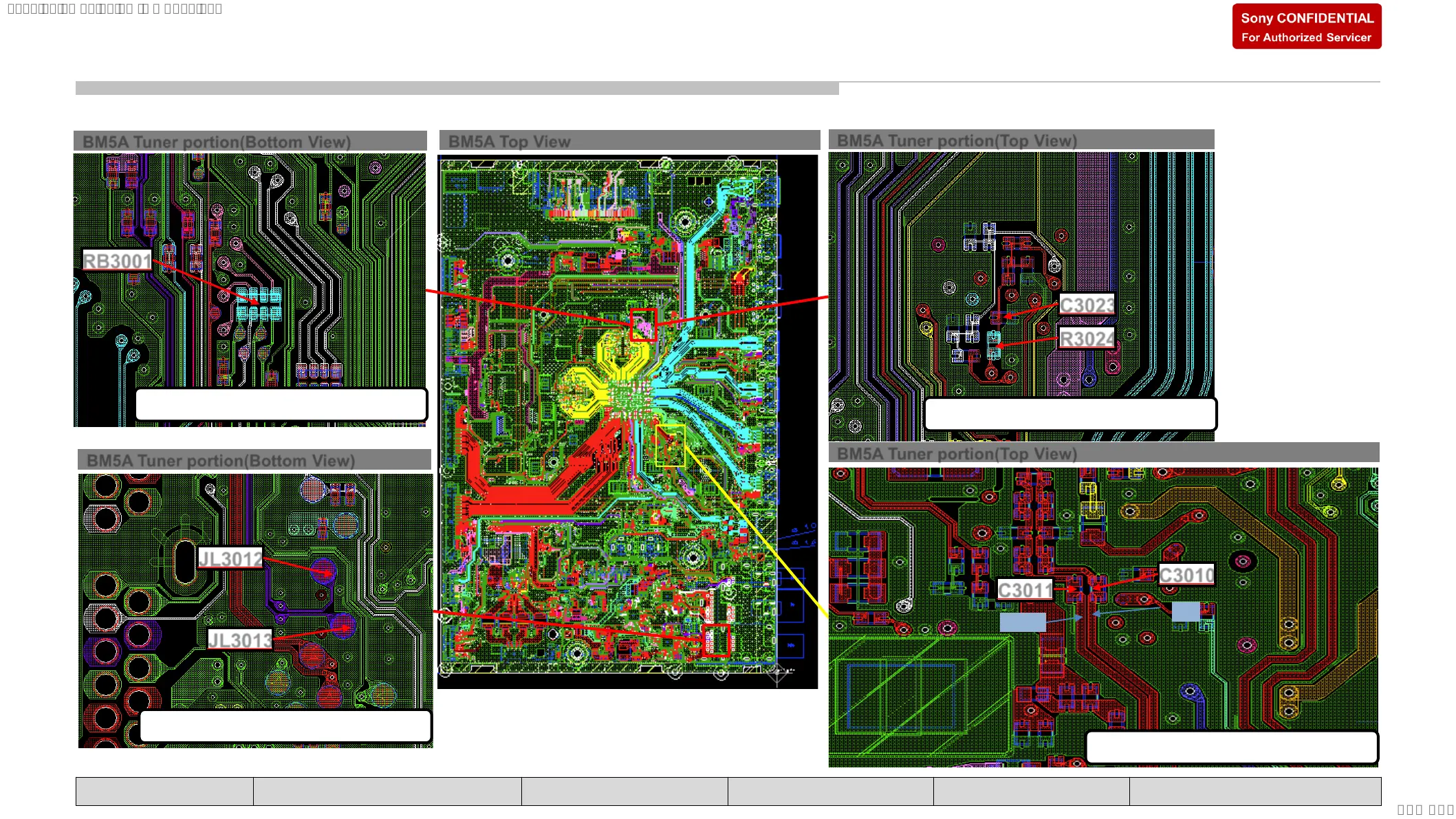

4.4 No Picture at Tuner - I2C_SDA, I2C_SCL ,IF_N, IF_P, TAGC, TS Lines(Near SOC)
BM5A Top View
IF_P
IF_N
C3010
BM5A Tuner portion(Top View)
C3011
R3024
C3023
BM5A Tuner portion(Top View)
BM5A Tuner portion(Bottom View)
RB3001
JL3013
JL3012
BM5A Tuner portion(Bottom View)
TS Lines near SOC
IF Lines
TAGC
I2C Lines
SYSSET
