Rotating the wipe pattern (Rotation)
1
In the <Rotation> group of the Key1 Wipe Adjust
menu, select the rotation type.
Angle: Incline the pattern through a fixed angle.
Speed: Rotate at a speed rate.
Magnitude: Rotate the pattern through a fixed angle
during the course of the transition.
2
Depending on the selection in step 1, set the following
parameters.
When Angle is selected
Rotation angle of pattern
a)
a)
1
p. 104.
When Speed is selected
Rotation speed of pattern
a)
a)
1
p. 104.
When Magnitude is selected
Angle of pattern at start of
transition
a)
Amount of rotation through
course of transition
a)
a)
1
p. 104.
Setting the wipe pattern aspect ratio
(Aspect ratio)
1
In the Key1 Wipe Adjust menu, press [Aspect],
turning it on.
2
Set the following parameter.
a)
1
p. 105.
Number of repetitions of pattern
horizontally
Number of repetitions of pattern
vertically
a)
1
p. 105.
Wipe Snapshots
You can snapshot and save a wipe pattern together with the
current settings of its modifiers and pattern limit in a
dedicated register for recall when required. There are 10
wipe snapshot registers on each bank.
Wipe snapshots can be saved or recalled using the Flexi
Pad or a menu operation.
For details about Flexi Pad operations,
1
“Wipe Pattern
Operations in the Flexi Pad” (p. 108).
Wipe Snapshot Operations with the
Menus
Use the Wipe Adjust menu in each switcher bank.
When operating from the M/E-1 bank, for example, open
the M/E-1 >Wipe >Wipe Snapshot menu (1157).
Replicating the wipe pattern
(Multiplication)

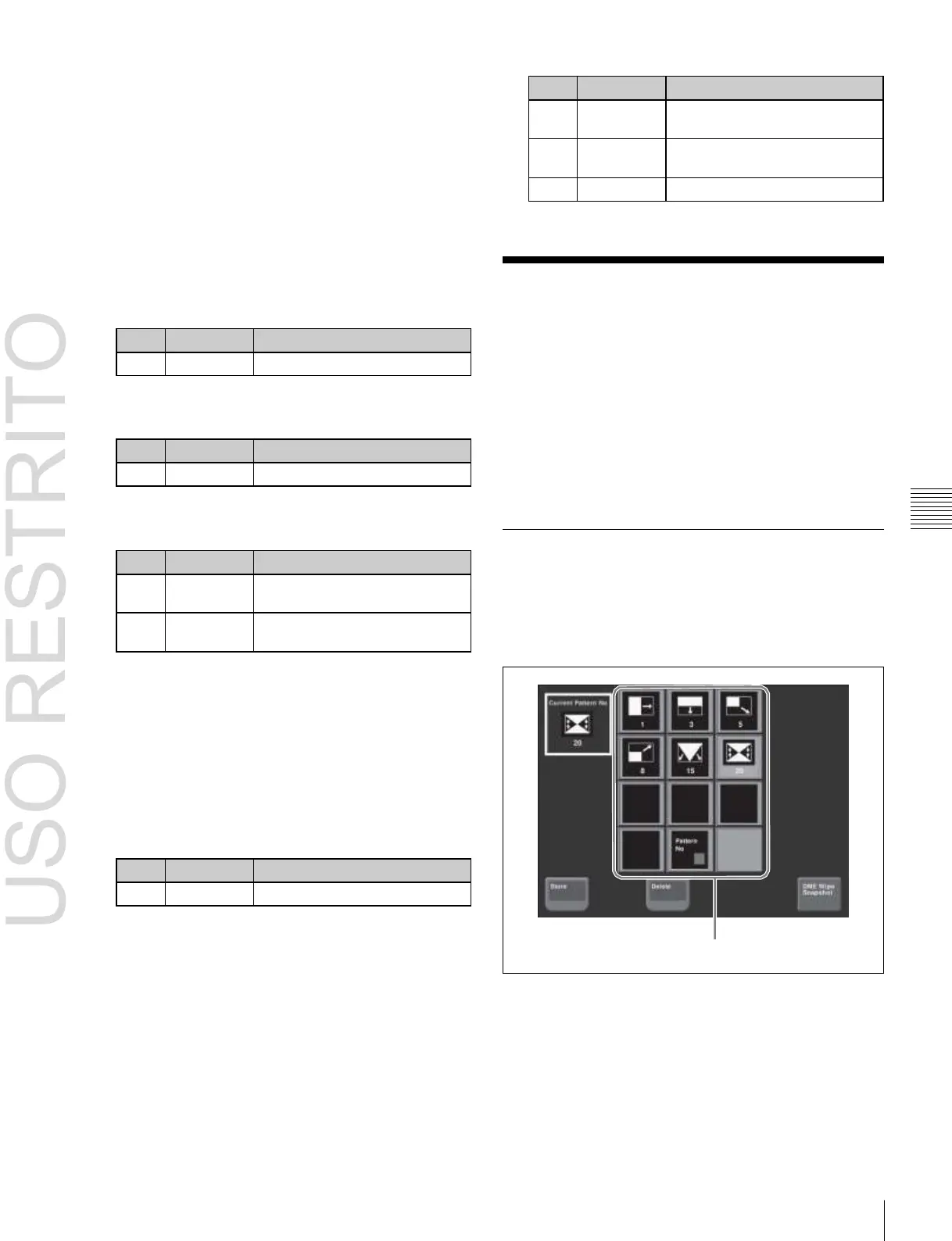

Button displays
Memory recall buttons
1
In the Key1 Wipe Adjust menu, press [Multi], turning
it on.
2
Set the following parameters.
In the Setup menu, you can select whether the memory
recall buttons show the pattern number or register name.
For details,
1
“Settings for the Flexi Pad and Wipe
Snapshot Menus” (p. 341).
To Next Page
