Overall Control Panel Settings 327
Chapter
18
Control
Panel
Setup
Assigning Regions to Region
Selection Buttons in the Flexi Pad
You can set a maximum of four regions to each of the
region selection buttons in the Flexi Pad.
In the Flexi Pad, pressing the region selection button
[MORE] displays the regions not assigned to the region
selection buttons on the memory recall section numeric
keypad buttons, so that you can select them, and set the
assignment of regions to the numeric keypad buttons.
However, in the Flexi Pad, it is not possible to assign a
region to the [EXIT] button.
1 Open the Engineering Setup >Panel >Config >Region
Button Assign menu (7321.7).
3 Press the indication of the button for the assignment.
4 Select one of the four regions for the setting.
5 Select the region to be assigned.
6 Press [Set], to confirm the selection.
Notes
Only regions assigned here can be used for keyframe or snapshot recall.
To return the region assignment to the factory
default state
In the Region Button Assign menu (7321.7), press
[Default].

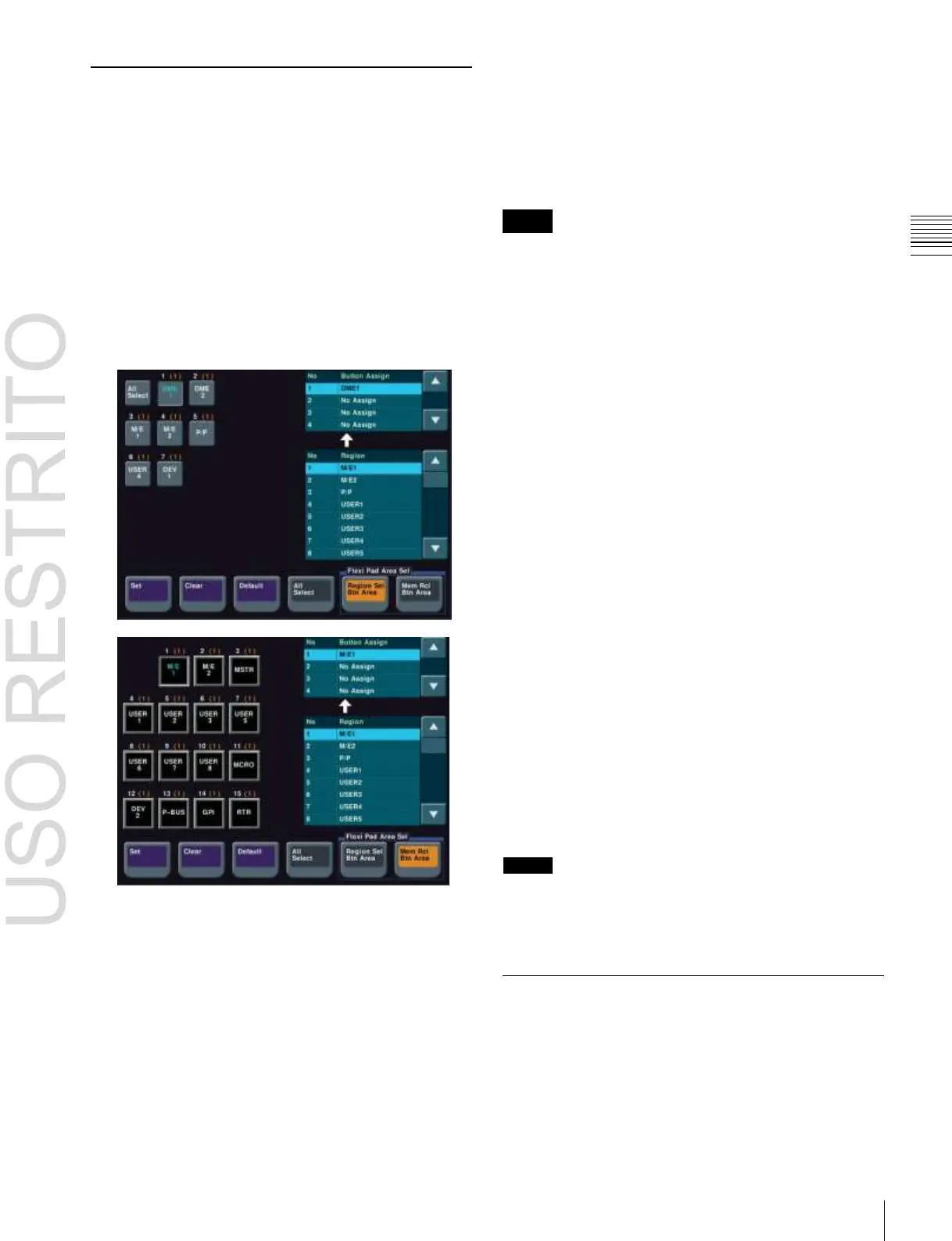

The left side of the status area shows region selection
buttons; the upper part of the right side shows a list of
regions assigned to region selection buttons, and the
lower part shows a list of assignable regions.
2 In the <Flexi Pad Area Sel> group, press one of the
following.
Region Sel Btn Area: When assigning a region to the
region selection buttons
Mem Rcl Btn Area: When assigning a region to the
numeric keypad buttons in the memory recall
section
To delete a region assignment
In step 3 of the procedure in “Assigning Regions to Region
Selection Buttons in the Flexi Pad” ( 1 p. 327), make the
selection to which the operation applies, then press [Clear].
Setting the region selection buttons
selected when the [ALL] button is pressed
1 In the Engineering Setup >Panel >Config >Region
Button Assign menu (7321.7), press [All Select] in the
button area, or the [All Select] button indication in the
status area, setting it to On.
The [All Select] button indication in the status area
changes to orange, and the system switches to a mode
for assigning region selection buttons to the [ALL]
button. In the factory default state, all buttons appear
in reverse video, and are assigned to the [ALL] button.
2 If you do not want to assign any region selection
button to the [ALL] button, press the corresponding
button indication, setting it to Off.
The button you pressed returns to normal display.
Notes
Assignment to the [ALL] button is region by region.
Changing the assignment of a region selection button does
not change the regions assigned to the [ALL] button.
Setting Transition Control Block
Button Assignments
1 Open the Engineering Setup >Panel >Config
>Transition Module menu (7321.9).
