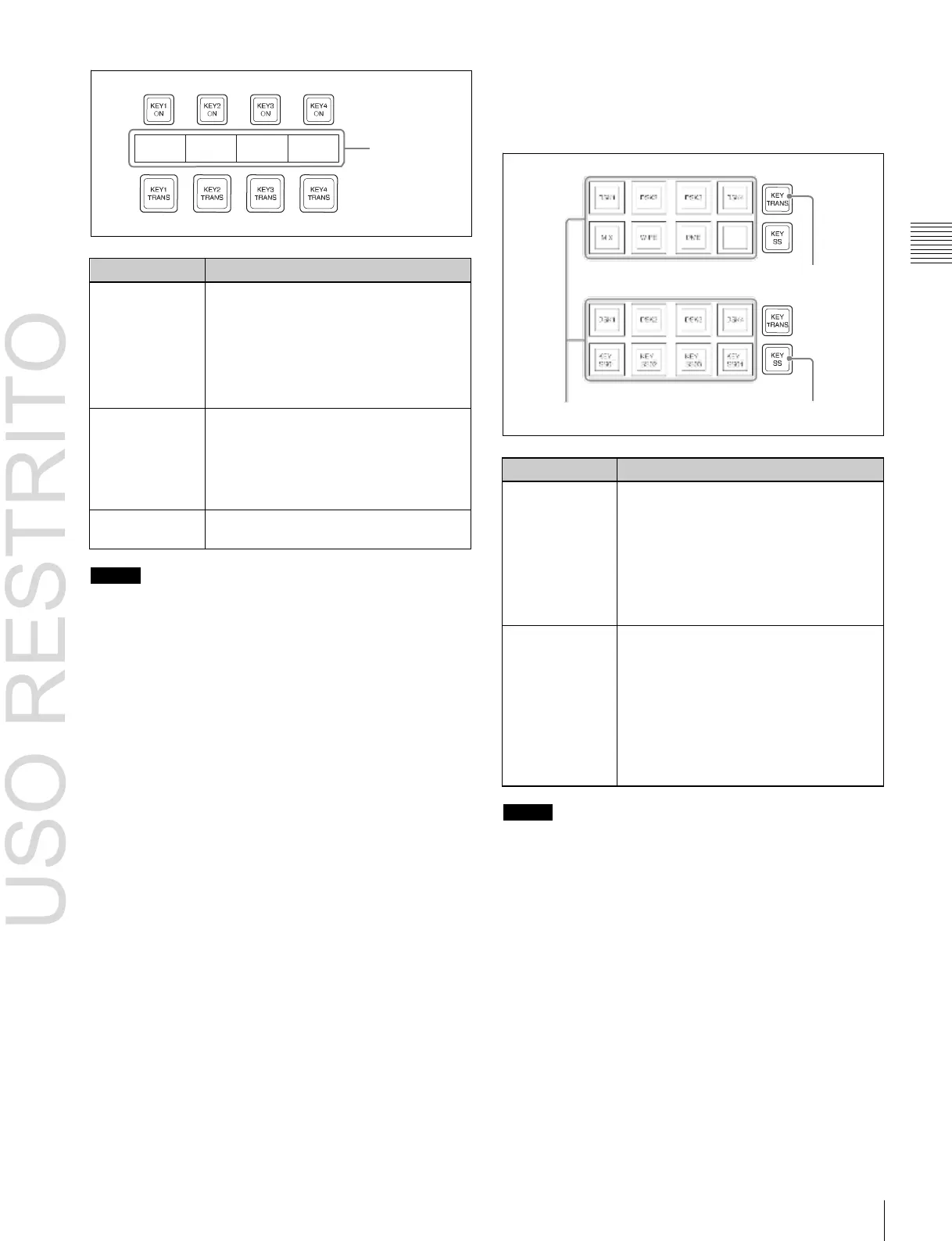

Names and Functions of Parts of the Control Panel 37
Name
Description
KEY1 ON to
KEY4 ON (DSK1
ON to DSK4 ON
for the PGM/PST
bank)
• Press the corresponding one of these
buttons to cut key 1 to key 4 in or out
instantaneously.
• The button lights red when the
corresponding key appears in the final
program output, and lights amber when
the key does not.
KEY1 TRANS to
KEY4 TRANS
(DSK1 TRANS
to DSK4 TRANS
for PGM/PST
banks)
Press these buttons to carry out an auto
transition.
Key source
name display
This displays the source name selected
on the corresponding keyer.
Name
Description
KEY TRANS
(key transition)
• The function of the LCD buttons
switches to independent key transition
type selection.
• Use the top row LCD buttons as key
delegation buttons for keys 1 to 4.
• Use the bottom row LCD buttons as
independent key transition type
selection buttons.
KEY SS (key
snapshot)
• The function of the LCD buttons
switches to key snapshot operation.
• Use the top row LCD buttons as key
delegation buttons for keys 1 to 4.
• Use the bottom row LCD buttons as
key snapshot buttons. You can save
key snapshots by pressing these
buttons while holding the [KEY SS]
button.
Chapter
2
Names
and
Functions
of
Parts
Key source
name display
m Independent key transition / key snapshot control
section
Selecting a function using the buttons on the right toggles
the function of the eight LCD buttons as follows.
KEY TRANS button
LCD buttons KEY SS button
Notes
For details about key 5 to 8 operations, 1 “8-Keyer
Operation” (p. 412).
i Key delegation buttons
Assign the desired keyer, by pressing [KEY1] to [KEY4]
([DSK1] to [DSK4]) and turning them on.
While these buttons are held down, you can select a key
source with the cross-point buttons for the key bus.
Pressing one of these buttons twice in rapid succession
changes its state so that you can make cross-point
selections on the corresponding key bus.
The key delegation buttons can also be used for copying
keys.
For details, 1 “Copy and Swap Operations” (p. 149).
j Independent key transition type selection buttons
These select the independent key transition type.
For details, 1 “Basic Independent Key Transition
Operations” (p. 75).
k Key snapshot buttons
These correspond to registers 1 to 4 of the keyer selected
with the key delegation buttons, and pressing a button
saves or recalls a key snapshot.
l K-SS STORE (key snapshot store) button
Press the key snapshot button of the register you want to
save while holding this button to save the key snapshot.
Notes
For details about key 5 to 8 operations, 1 “8-Keyer
Operation” (p. 412).
