Stihl FS 360 Service Manual

99FS 240 C, FS 260 C, FS 360 C, FS 410 C, FS 460 C-M

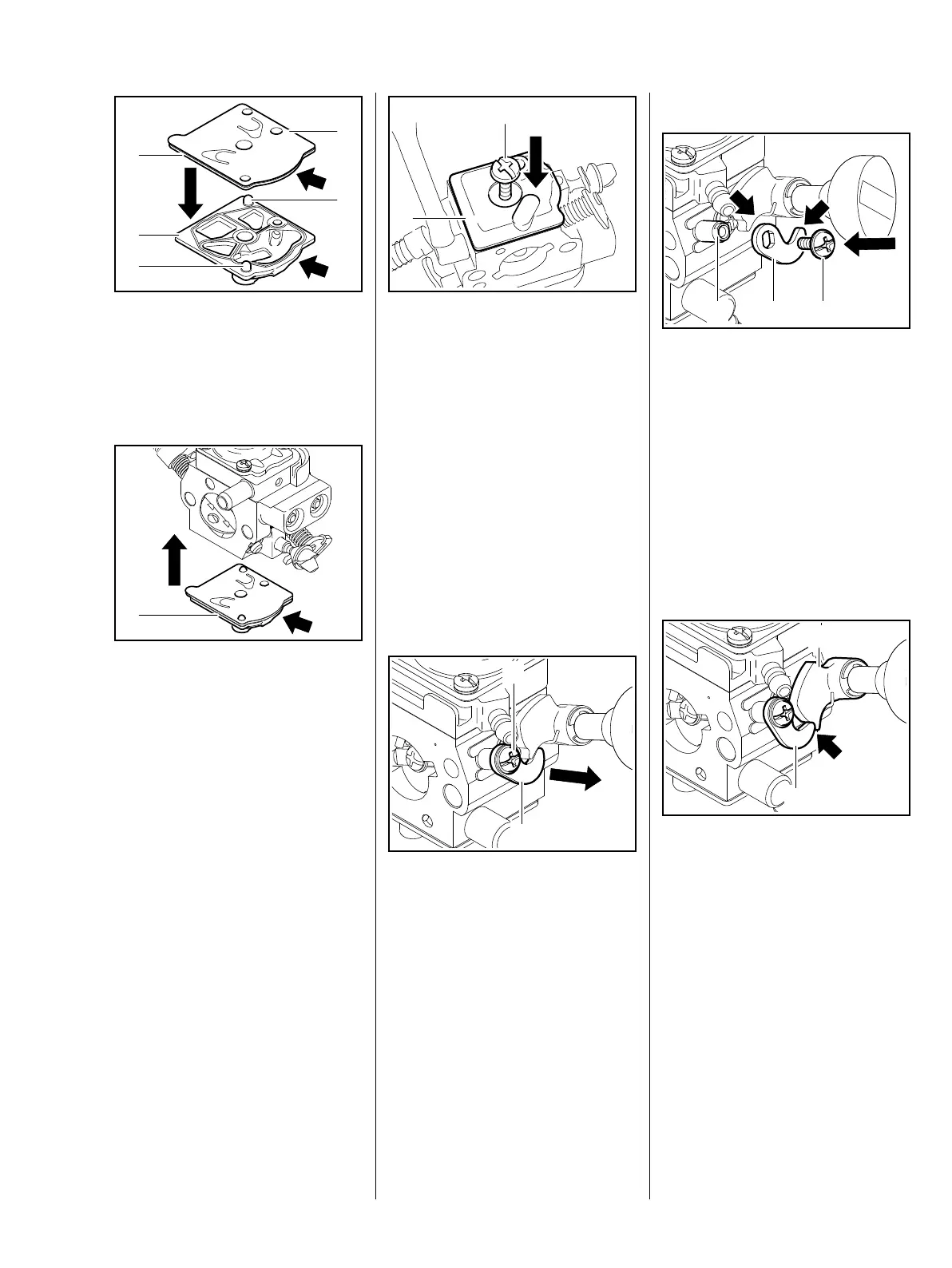

: Position gasket (1) with pump
diaphragm (2) on the end
cover (3) so that the
protrusions (arrows) match and
are secured via the pins (4)
– Position the end cover (1) on the
carburetor housing from below so
that the gasket and pump
diaphragm remain secured to the
end cover
: Orient end cover (1) so that the
protrusion (arrow) is on the same
side as the idle speed screw LA
and fit until the pins of the end
cover align with the holes in the
carburetor housing
5904RA358 TG
1
3
2
4
4
5904RA359 TG
1
– Check that the pump diaphragm
and gasket are correctly seated
: Hold end cover (1) in position,
screw in and tighten screw (2)
– Reassemble remaining parts in
reverse order
11.4.4 Throttle shaft lever
– Remove the carburetor, b 11.3
– Troubleshoot carburetor, b 3.6
: Remove screw (1)
: Remove lever (2)
5904RA360 TG
2
1
5904RA361 TG
1
2
Installation
: Orient lever (2) so that the hook
engages the choke
lever (arrows)
: Slide the lever (2) onto the
throttle shutter shaft so that it
aligns with the flat faces (3)
: Screw in the screw (1) and
tighten
Checking operation
In the "warm start" position,
lever (1) must engage the
notch (arrow) of lever (2) and align
with the contact surface of the cam.
5904RA362 TG
123
5904RA363 TG
2
1
