110 FS 240 C, FS 260 C, FS 360 C, FS 410 C, FS 460 C-M

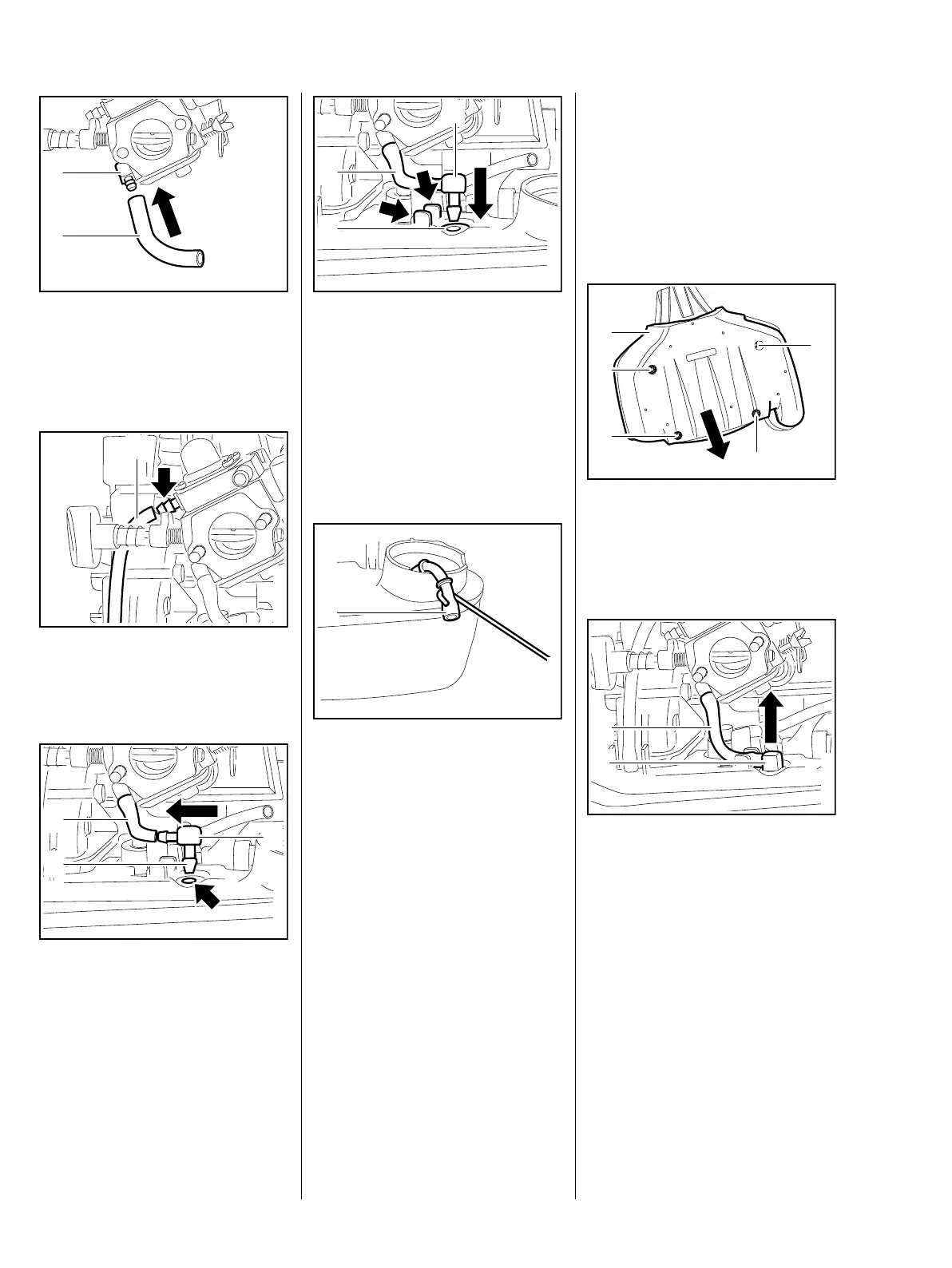

: Connect the fuel hose (1) to the
connector (2)
– Slide carburetor onto stud bolts
: Push the fuel return line (1)
completely onto the
connector (arrow)
: Press connector (1) onto fuel
hose (2) so that the second
connector (3) faces the
hole (arrow) of the fuel suction
hose
– Connector must be pushed all
the way into the fuel hose
5904RA452 TG
1
2
1
5904RA453 TG
2
1
5904RA454 TG
3
– Coat connector with STIHL press
fluid, b 14
: Push connector (1) into the fuel
suction hose (2) so that the fuel
hose (3) is between the
ribs (arrows)
– Connector must be pushed all
the way into the fuel suction hose
: Use hook 5910 893 8800 to pull
the fuel suction hose (1) out of
the fuel tank
Take care not to overextend the fuel
suction hose.
– Fit the pickup body, b 11.9.1
– Close the filler cap
– Reassemble remaining parts in
reverse order
3
1
5904RA455 TG
2
1
5904RA537 TG
11.9.3 Fuel tank
– Empty the fuel tank, b 1
– Remove shroud, b 5.4
– Remove filter housing, b 11.2
: Remove screws (1)
: Remove the protective hip
plate (2)
: Pull out connector (1) with fuel
hose (2)
1
1
1
5904RA456 TG
1
2
5904RA409 TG
1
2
