Stihl FS 360 Service Manual

114 FS 240 C, FS 260 C, FS 360 C, FS 410 C, FS 460 C-M

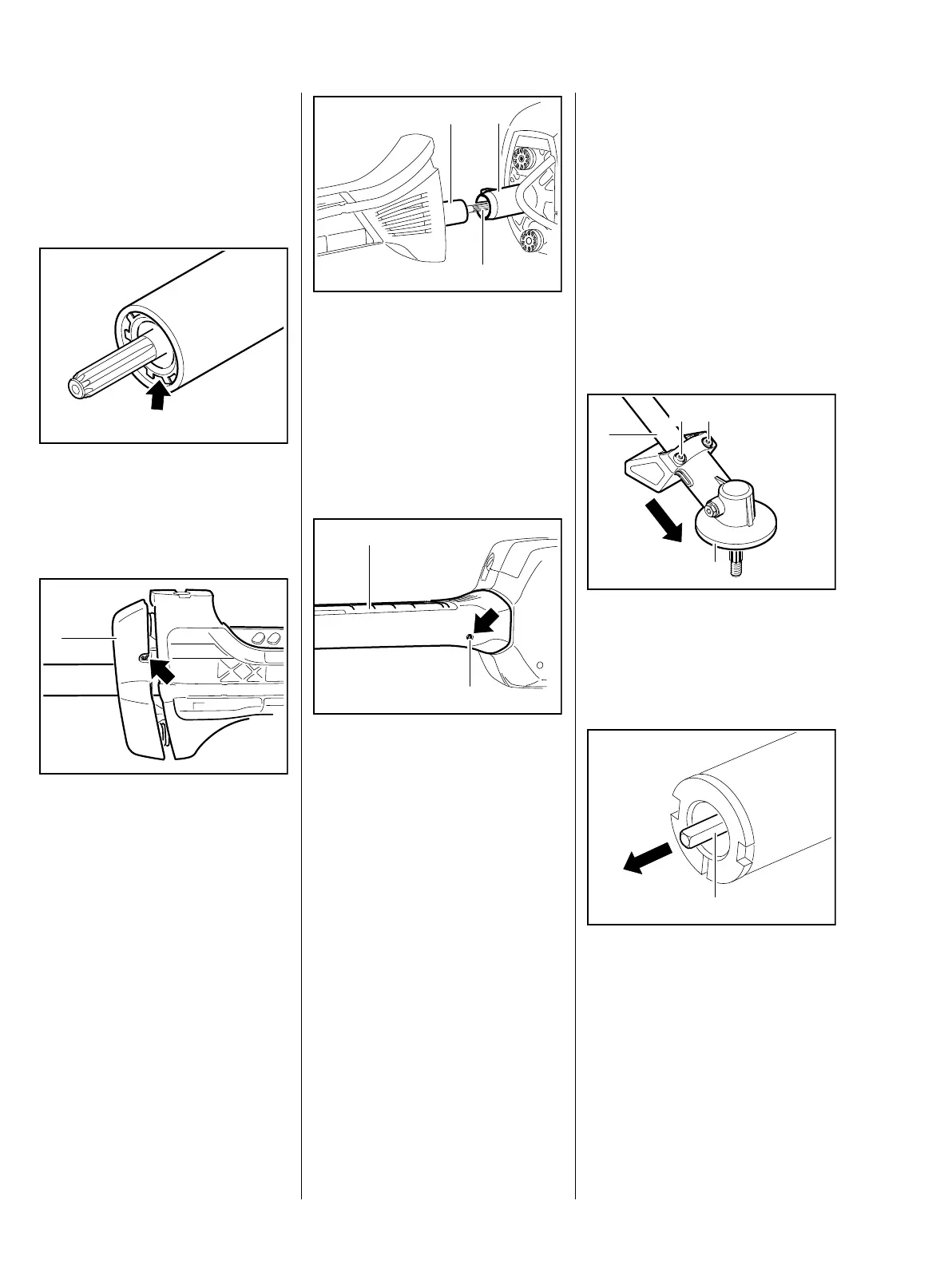

Drive tube assembly with 28 mm
diameter for 4-point antivibration
system
– Degrease clamping area,
b 14
: Orient end of drive tube assembly
with shakeproof washer
installed (arrow) so that it faces
the engine
Antivibration housing (1) must be
pushed on and clamping
screw (arrow) must be loosened.
5904RA462 TG5904RA463 TG
1
: Push the drive tube assembly (1)
into the clutch housing (2) with
gentle twisting motions until the
serration (3) of the drive shaft
engages the clutch drum
The drive tube assembly must be
seated in the clutch housing as far
as it will go.
: Orient drive tube assembly (1)
and tighten screw (2) through the
opening (arrow)
– Drive tube assembly is
clamped and secured
The sticker on the drive tube
assembly must be visible when
using the machine.
– Secure antivibration housing,
b 9.2
– install bike handle with control
handle, b 9.2
– Check instruction label on drive
tube assembly for damage and
legibility, replace if necessary
5904RA464 TG
1
2
3
5904RA465 TG
1
2
12.2.1 Disassembling the drive
tube assembly with a
diameter of 25.4 mm
– Remove the drive tube assembly,
b 12.1
– If necessary, install bike handle
with control handle, b 9.2
– If necessary, install carrying ring
and throttle cable support,
b 12.3.3, b 12.3.4
: Undo the screws (1)
: Pull gearbox (2) off of drive tube
assembly (3)
: Pull drive shaft (1) with square
profile out of the drive tube
assembly
If the shaft has blue tarnish on it, it
must be replaced.
5904RA466 TG
3
1 1
2
5904RA467 TG
1
