Stihl FS 360 Service Manual

93FS 240 C, FS 260 C, FS 360 C, FS 410 C, FS 460 C-M

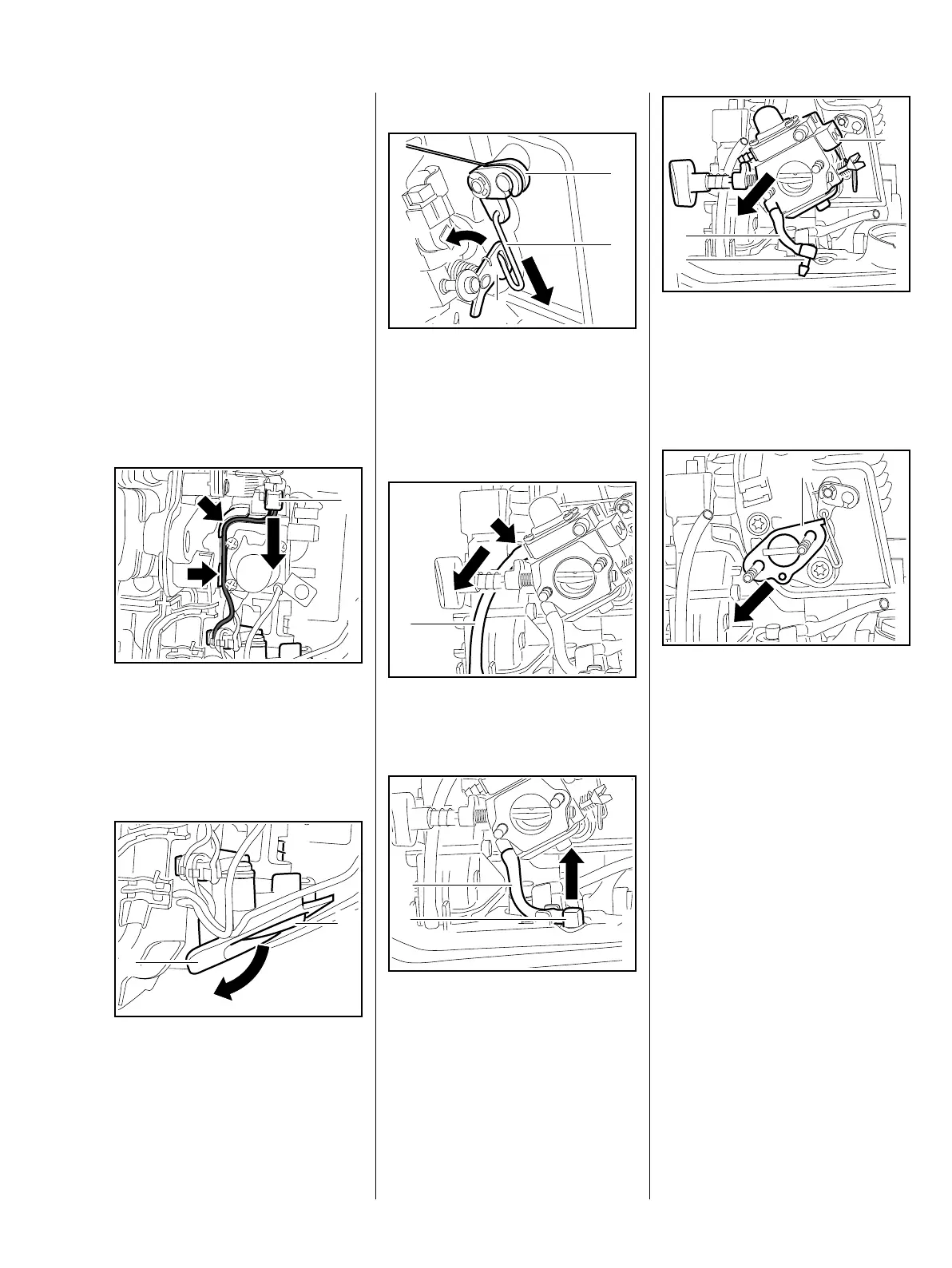

11.3 Carburetor
– Remove filter housing, b 11.2
– Open filler cap and drain fuel tank
– Collect fuel in a clean container,
b 1
The fuel hose may only be removed
when the tank filler cap is open.
Versions with M-Tronic
Leads and plug connections must
not be damaged.
: Remove plug (1) on solenoid
valve of the carburetor
: Pull leads out of the
guides (arrows)
: Pull bushing (1) with switchgear
over the choke lever (2) and lay it
aside
5904RA405 TG
1
5904RA406 TG
1
2
All versions
: Hold lever (1) and press lever (2)
of the throttle shaft in the
direction of full-throttle until the
throttle rod (3) slides out of the
lever (2)
: Pull off the fuel return line (1) at
the connector (arrow)
: Pry out connector (1) with fuel
hose (2)
5904RA330 TG
2
1
3
1
5904RA408 TG
5904RA409 TG
1
2
: Remove carburetor (1)
: Examine the fuel hose (2), with
connector (3), replace if
necessary, b 11.9.2
: Remove gasket (1) – always use
a new gasket
– Check and clean mating surfaces
on carburetor and spacer flange,
b 14
– Examine the carburetor and
repair or replace it if necessary.
– Replace removed fuel hoses,
b 11.9.2
5904RA410 TG
2
3
1
5904RA411 TG
1
