Stihl FS 360 Service Manual

53FS 240 C, FS 260 C, FS 360 C, FS 410 C, FS 460 C-M

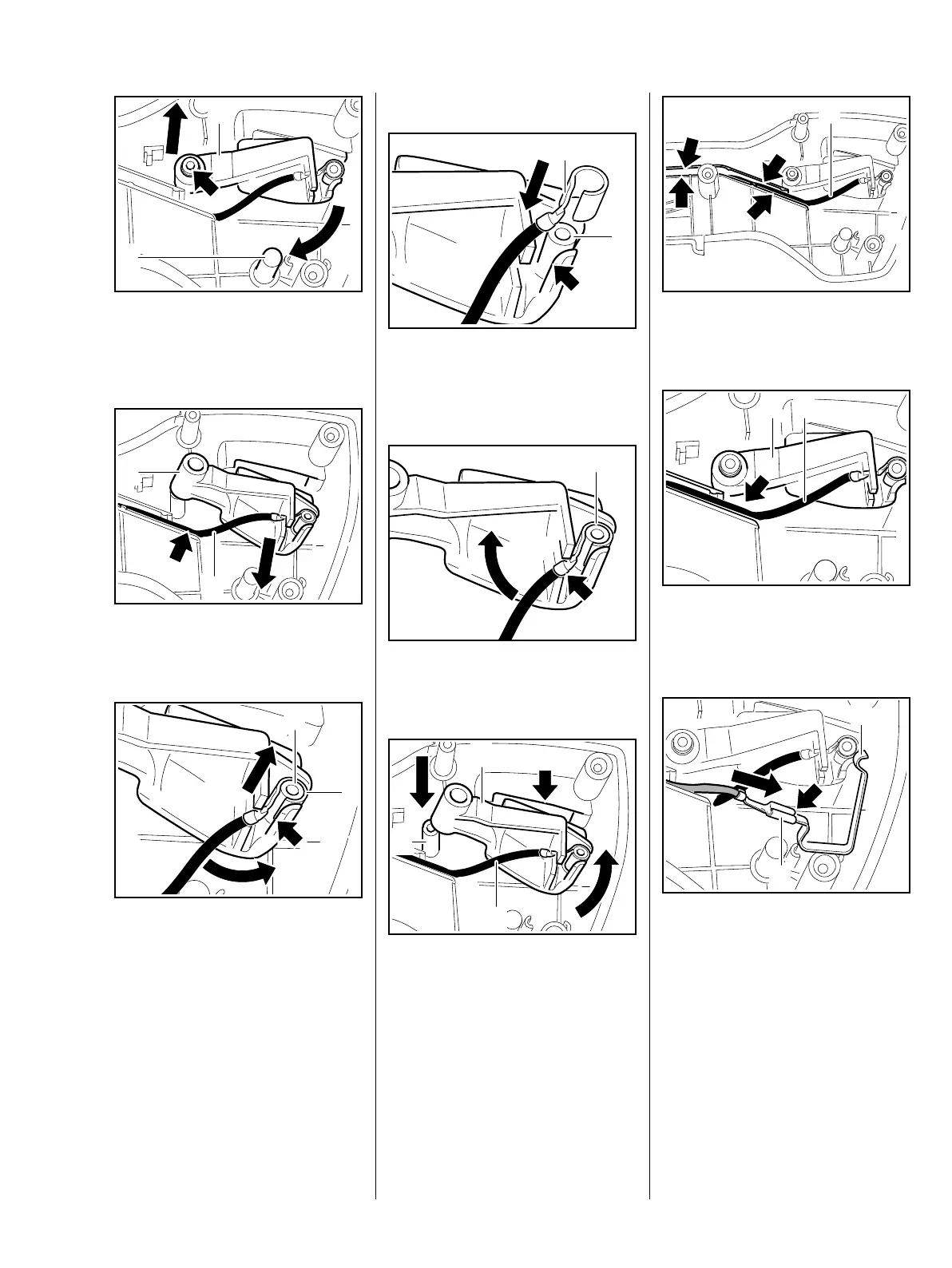

: Push lever (1) in the direction of
the post (2) of the throttle trigger
and remove from post (arrow)
: Remove ground wire (1) with
lever (2) from the guide (arrow)
: Twist eyelet (1) as far as it will
go (arrow) and remove from the
post of the lever (2)
– Remove throttle cable and short
circuit wire from engine,
without M-Tronic, b 6.6.2,
with M-Tronic, b 6.6.3
5904RA158 TG
1
2
5904RA159 TG
2
1
5904RA160 TG
1
2
Installation
: Slide eyelet (1) onto the post (2)
of the lever so that the eyelet
opening faces the stop (arrow)
: Twist eyelet (1) as far as it will go
into the locking groove (arrow).
: Push lever (1) with ground
wire (2) onto the post (3) and turn
in the opening (arrow)
5904RA161 TG
1
2
5904RA162 TG
1
5904RA163 TG
1
2
3
: Press ground wire (1) as far as it
will go into the guide (arrows)
The ground wire (1) must not be
stretched between lever (2) and
guide (arrow).
: Push blade receptacle (1) of the
short circuit wire onto the contract
spring (2) as far as it will go –
crimped side must face
curvature (arrow) of the contact
spring
5904RA164 TG
1
5904RA165 TG
12
5904RA166 TG
1
2
