23FS 240 C, FS 260 C, FS 360 C, FS 410 C, FS 460 C-M

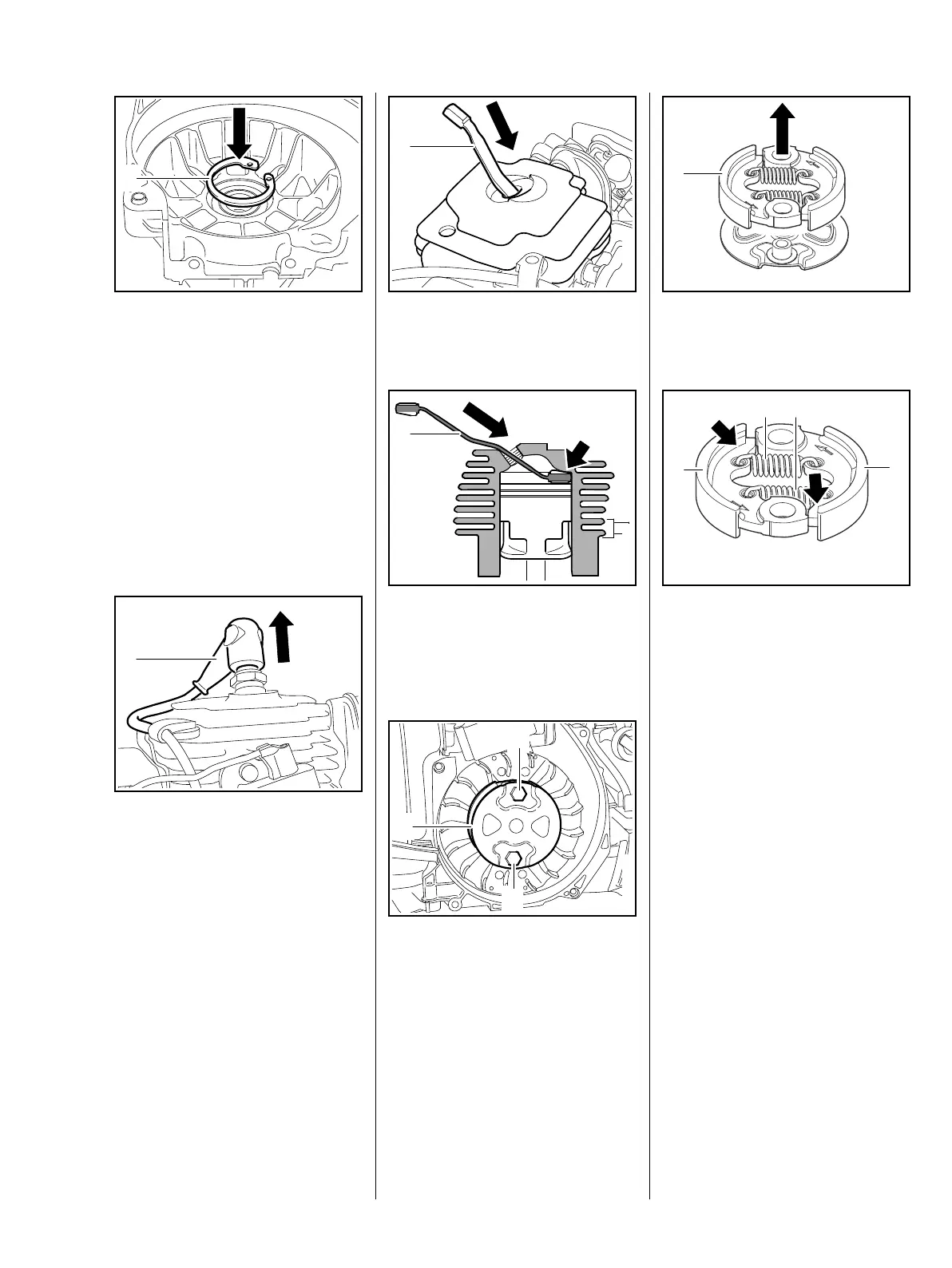

: Install circlip (1) so that it is
seated completely in the groove
– Install the clutch drum, b 4.1
– Reassemble remaining parts in
reverse order
4.2 Clutch
– Remove clutch housing, b 4.1
: Remove the spark plug boot (1)
– Unscrew spark plug
5904RA020 TG
1
5904RA021 TG
1
: Insert locking strip (1)
0000 893 5904 in the cylinder
: Locking strip (1) 0000 893 5904
must rest against the cylinder
wall (arrow)
– Position as shown
: Remove bolts (1) SW 10
: Remove clutch (2) complete with
cover washers
5904RA022 TG
1
5904RA407 TG
1
5904RA023 TG
2
1
1
: Remove clutch (1) from the lower
cover washer
: Lift up clutch shoes (1) and
unhook tension springs (2)
Clutch shoes must be oriented so
that the markings (arrows) are
visible.
– Hook in new clutch springs
– Reassemble the clutch shoes in
reverse order
5904RA024 TG
1
SM
SM
5904RA025 TG
1
2
1
2
