108 FS 240 C, FS 260 C, FS 360 C, FS 410 C, FS 460 C-M

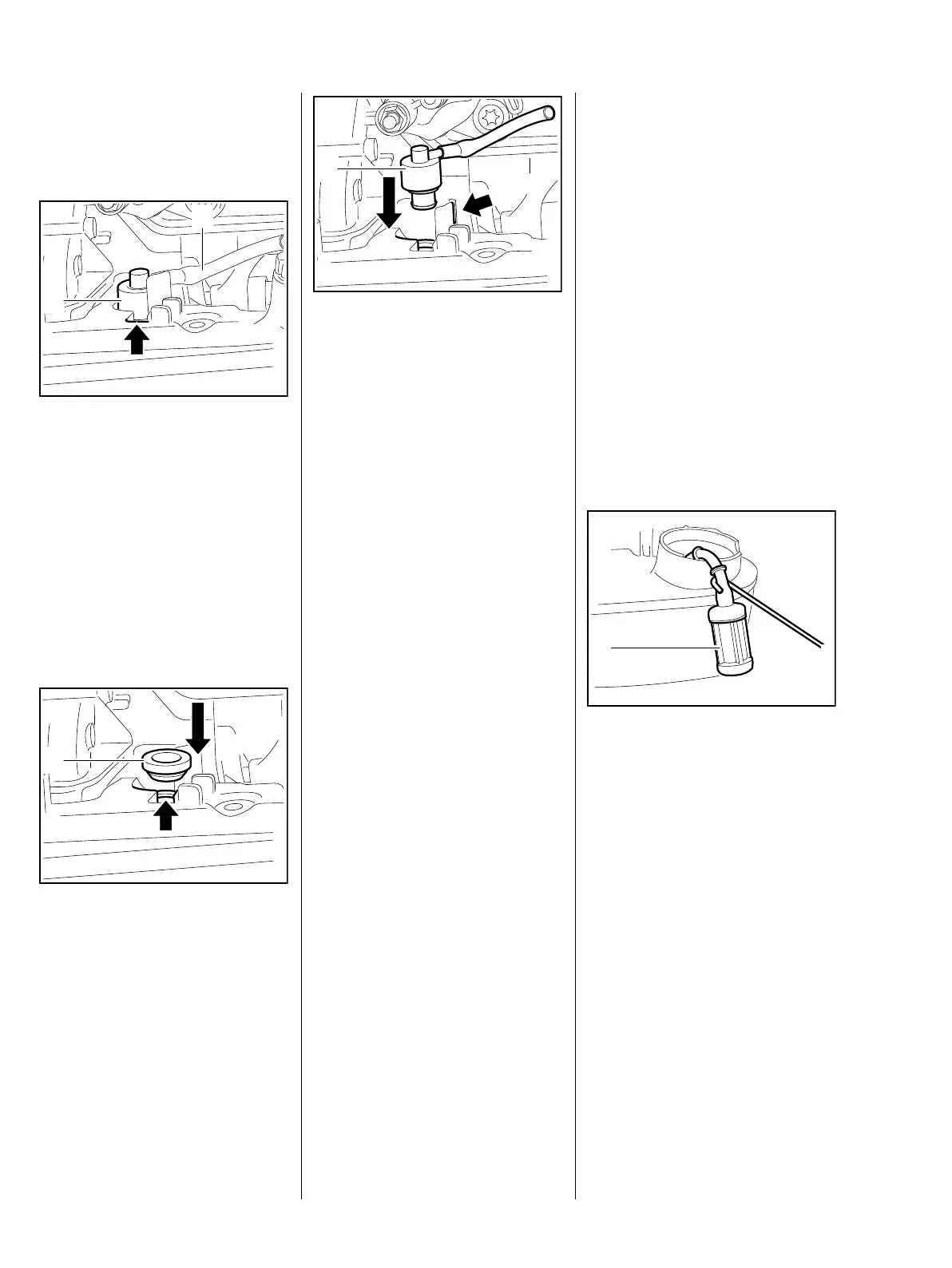

11.8.2 Removal and installation
– Remove the carburetor, b 11.3
: Pry out the tank vent (1) via the
mounting rib (arrow)
– Remove tank vent (1) from hose
(2), examine and replace if
necessary
– Remove the grommet
Always fit a new tank vent.
Installation
: Orient grommet (1) so that the
cone faces the fuel tank
– Coat outside of grommet with
STIHL press fluid, b 14
: Press grommet (1) into
hole (arrow) until it encloses the
hole completely
1
2
5904RA433 TG
1
5904RA434 TG
– Coat mounting surface of tank
vent with STIHL press fluid,
b 14
– Push new tank vent into hose
: Orient tank vent (1) so that the
connector with hose lines up with
the opening (arrow)
: Press tank vent (1) with hose
completely into the grommet
Hose must be pressed completely
onto the connectors of the tank vent
and the filter housing and run so
that it is free of kinks.
– Reassemble remaining parts in
reverse order
11.9 Fuel intake
11.9.1 Pickup body
Impurities which are entrained into
the fuel tank with the fuel are
trapped by the pick-up body. With
time, the fine pores in the pick-up
body become clogged with very fine
dirt particles. This reduces the
intake diameter and fuel can no
longer be delivered in sufficient
quantities.
Always check the fuel tank and pick-
up body first if problems develop in
the fuel supply.
1
5904RA435 TG
– Troubleshooting, b 3.6 or
b 3.7
Clean the fuel tank if necessary.
– Open the filler cap and drain the
tank.
– Fill a little clean gasoline into the
tank, close the tank and shake it
thoroughly.
– Reopen the tank and empty it.
– Ensure that the fuel is disposed
of correctly and without harming
the environment, b 1
– Open the filler cap
: Use hook 5910 893 8800 to pull
the pickup body (1) out of the fuel
tank
Take care not to overextend the fuel
hose.
: Pull off pickup body (1) and
examine it, replace if necessary
– Reassemble parts in reverse
order
1
5904RA436 TG
