Stihl FS 360 Service Manual

47FS 240 C, FS 260 C, FS 360 C, FS 410 C, FS 460 C-M

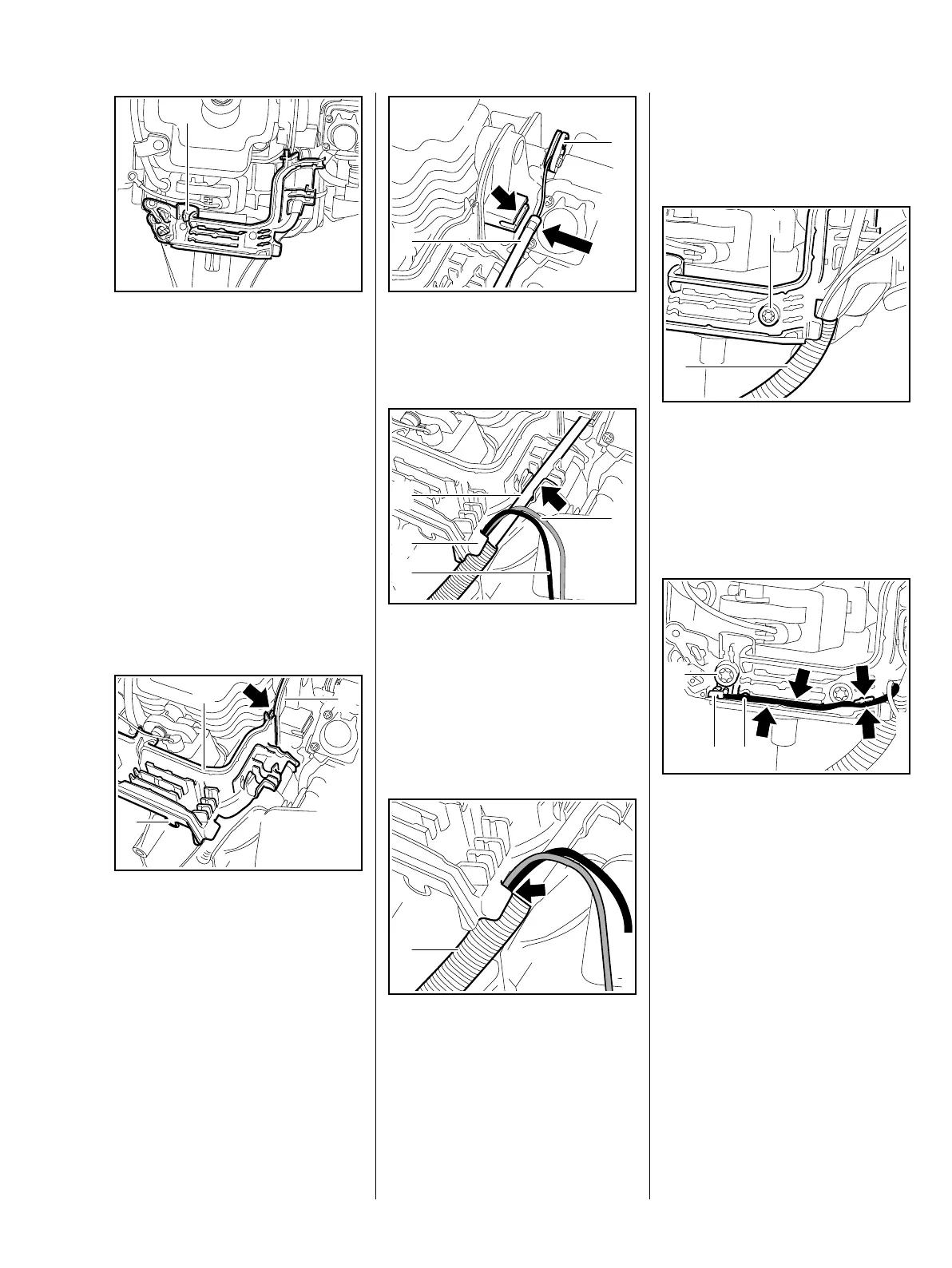

: Take out and examine the cable
holder (1), replace if necessary
– Remove short circuit wire on
control handle, control handle for
loop handle, b 6.6.4
Control handle for bike handle,
b 6.6.5
Installation
– Install short circuit wire on control
handle, control handle for loop
handle, b 6.6.4
Control handle for bike handle,
b 6.6.5
: Position the cable holder (1) on
the clutch housing so that it
engages behind the
groove (arrow) of the spacer
flange (2) and the tab (3) is
seated in the recess of the clutch
housing
1
5904RA243 TG
1
5904RA244 TG
2
3
: Hook throttle cable (1) onto
lever (2) and press grommet into
the mount (arrow)
: Orient throttle cable so that short
circuit wire (1) and ground
wire (2) face the cable holder
: Position Bowden cable (3) in the
guide (arrow) and guide
protective tube under the tab (4)
: Position protective tube (1) of the
throttle cable in the guide of the
clutch housing so that it is aligned
with the edge (arrow) of the cable
holder
1
2
5904RA111 TG
4
5904RA112 TG
3
2
1
1
5904RA113 TG
As strain relief, the protective tube is
clamped between the tab of the
cable holder and the guide of the
clutch housing.
: Screw in screw (1)
– do not tighten
: Check orientation and position of
the protective tube (2), align if
necessary, and tighten screw (1)
: Place connector tag (2) of the
ground wire (1) in the recess and,
starting at the recess, press into
the guides (arrows) as far as it
will go
: Screw in screw (3)
– do not tighten
2
5904RA245 TG
1
3
5904RA115 TG
12
