Stihl FS 360 Service Manual

48 FS 240 C, FS 260 C, FS 360 C, FS 410 C, FS 460 C-M

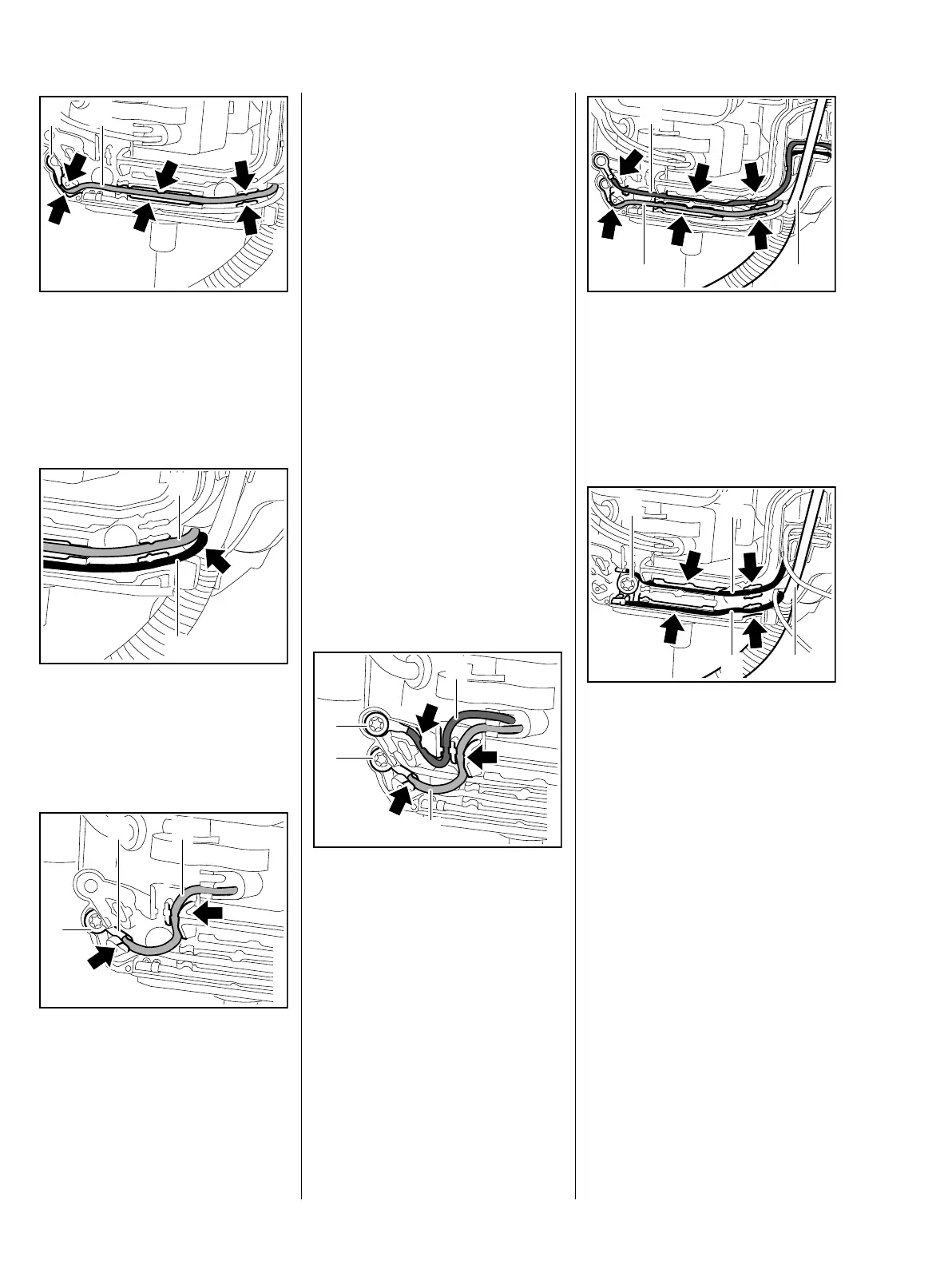

: Press short circuit wire (1) with
the lug (2) into the mount
: Starting at the lug (2), press the
short circuit wire (1) into the
guides (arrows) as far as it will go
To provide strain relief for the wires,
the short circuit wire (1) and ground
wire (2) must form small
loops (arrow) at the protective tube
– Ensure that wires are not crossed.
: Press lug (2) into the mount with
the crimped side facing the cable
holder
1
5904RA116 TG
2
2
1
5904RA117 TG
3
1
5904RA118 TG
2
: Starting at the lug (2), press the
lead (1) of the ignition module
into the guides (arrows) as far as
it will go
: Screw in the screw (3) and
tighten
– Reassemble remaining parts in
reverse order
6.6.3 Short circuit wire
with M-Tronic on engine,
removal and installation
– Remove shroud, b 5.4
– Unplug the spark plug boot
– Remove drive tube assembly,
1-point antivibration system,
b 12.1, 4-point antivibration
system, b 12.2
– Remove machine cover, b 4.1
: Remove screws (1)
: Pull the red lead (2) and blue
lead (3) of the control unit
(ignition module) out of the
guides (arrows)
1
2
5904RA119 TG
3
1
: Pull the red lead (1) of the M-
Tronic out of the guides (arrows)
up to the throttle cable (3)
: Remove blue lead (2) of the short
circuit wire from the
guides (arrows)
The blade receptacles are
permanently connected to the
connector tags and cannot be
pulled off.
: Remove screw (1)
: Remove ground wire (2) of the
short circuit wire from the
guides (arrows)
: Pull the ground wire (3) of the M-
Tronic out of the guides (arrows)
up to the throttle cable (4)
2
1
5904RA246 TG
3
1
5904RA247 TG
3
2 4
