116 FS 240 C, FS 260 C, FS 360 C, FS 410 C, FS 460 C-M
12.2.2 Disassembling the drive
tube assembly with a
diameter of 28 mm
– Remove the drive tube assembly,
b 12.2
– Remove bike handle, if
necessary, b 9.2
– Remove 4-point antivibration
system, if necessary, b 9.2

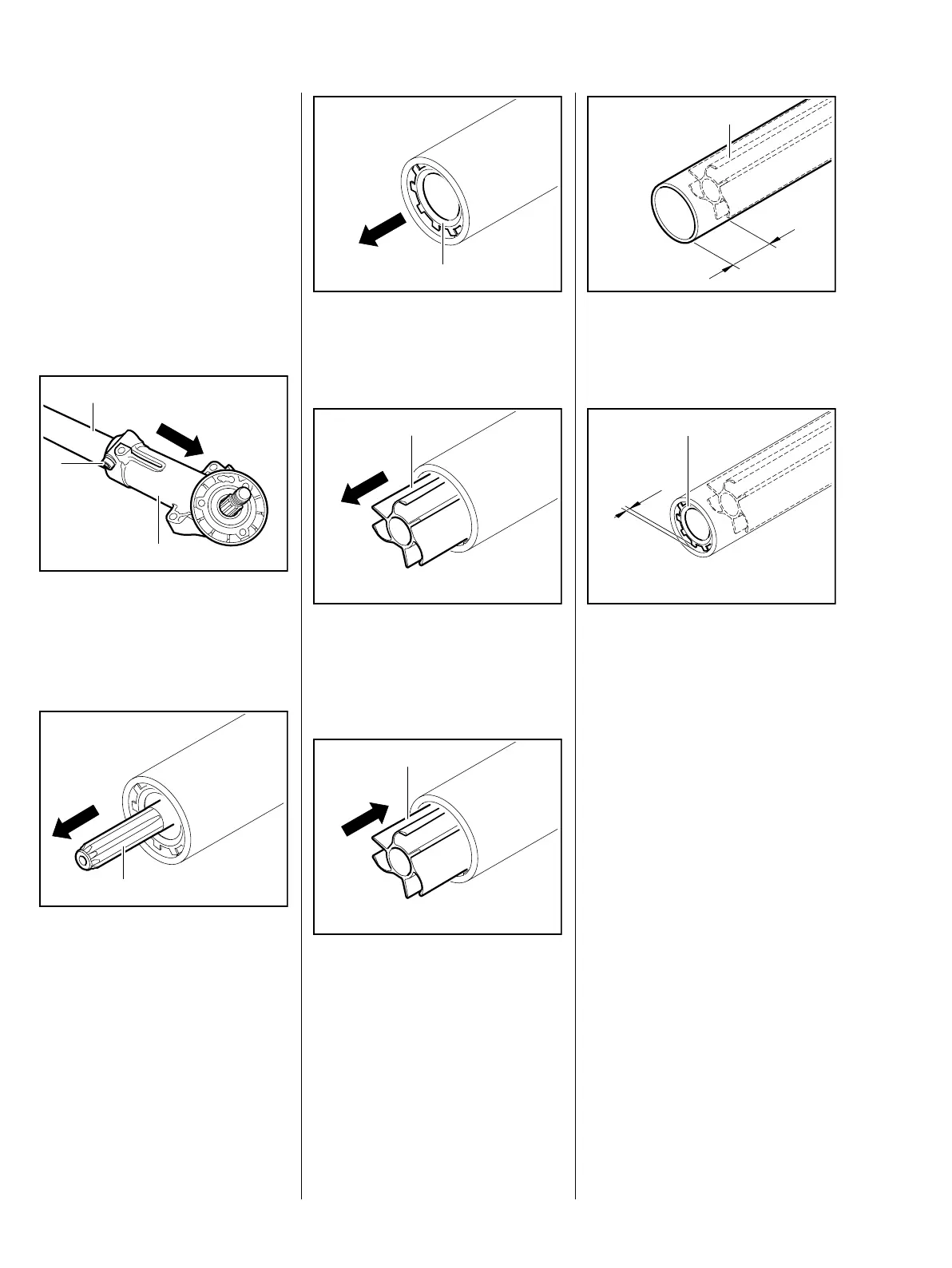

: Undo the screw (1)
: Pull gearbox (2) off of drive tube
assembly (3)
: Pull drive shaft (1) with serration
out of the drive tube assembly
If the shaft has blue tarnish on it, it
must be replaced.
2
5904RA475 TG
1
3
5904RA476 TG
1
: Pry out shakeproof washer (1)
– Replace shakeproof washer
after removal
: Pull flexible liner (1) out of the
drive tube assembly
Assembly
: Push flexible liner (1) into drive
tube assembly
5904RA477 TG
1
5904RA478 TG
1
5904RA479 TG
1
: Push flexible liner (1) inside the
drive tube assembly until depth a
= 25 mm
: Push new shakeproof washer (1)
inside the drive tube assembly
until depth a = 6 mm
a
5904RA480 TG
1
a
5904RA481 TG
1
