Stihl FS 360 Service Manual

87FS 240 C, FS 260 C, FS 360 C, FS 410 C, FS 460 C-M

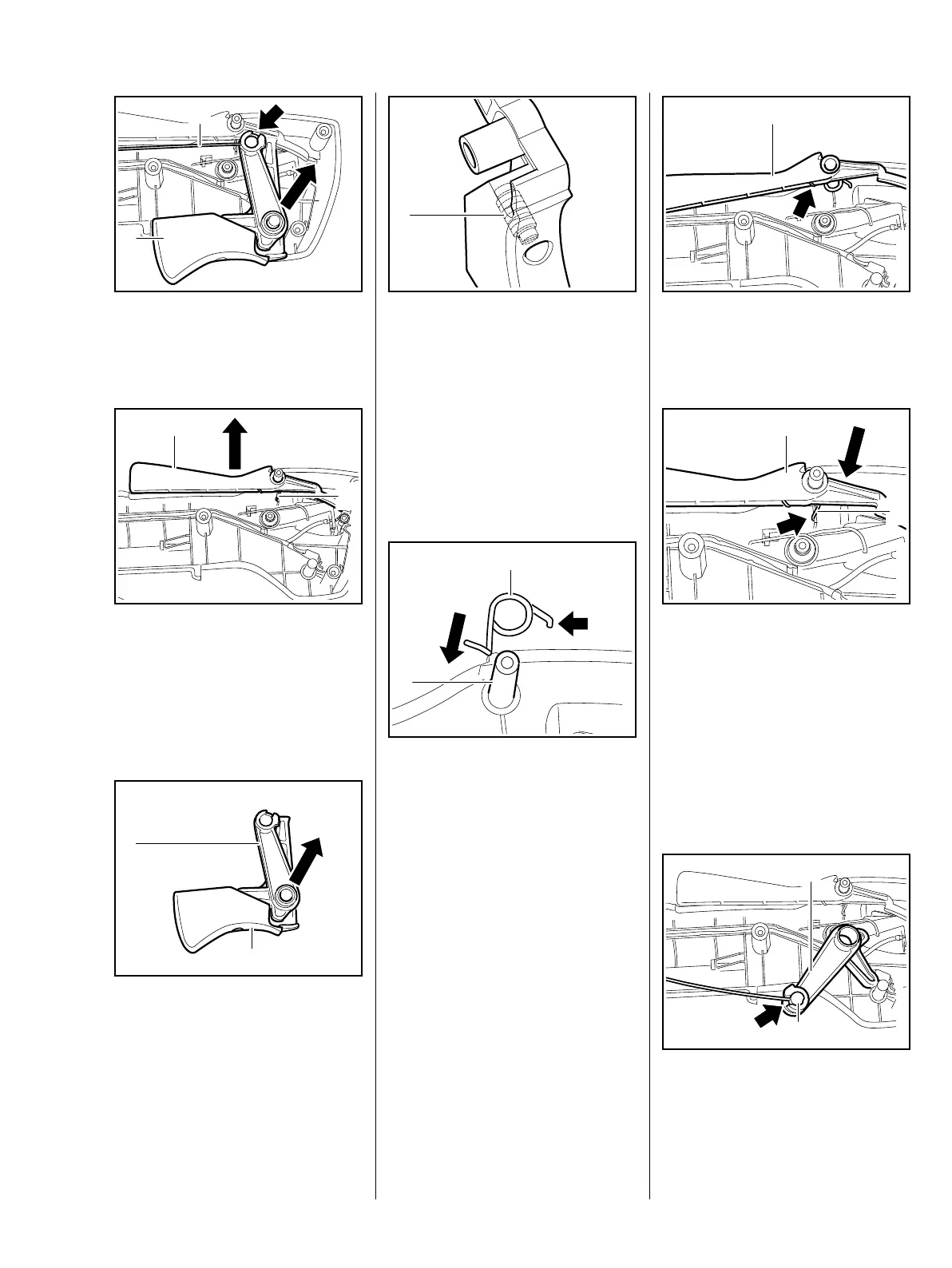

: Remove throttle trigger (1) and
unhook throttle cable (2) from
throttle trigger (arrow)
: Carefully pull out trigger
interlock(1) – tension on the
torsion spring (2) is released
suddenly
– Remove torsion spring
: Remove the lever (1) from the
throttle trigger (2)
– Examine trigger interlock, lever
and torsion springs, replace if
necessary
5904RA307 TG
1
2
5904RA308 TG
1
2
5904RA309 TG
1
2
– Stud (1) must be present, install
new stud if necessary
A new throttle trigger is supplied
with a pre-installed stud.
– With a new throttle trigger or after
the position of the stud has been
changed, the throttle cable must
be readjusted, b 10.2.4
: Slide torsion spring (1) onto the
post (2) so that the angled end
(arrow) faces the handle housing
5904RA310 TG
1
5904RA311 TG
1
2
: Push on the trigger interlock (1)
and hook on the torsion spring
(arrow)
– Turn the angled end of the torsion
spring (1) clockwise until it is
aligned behind the rib (arrow)
: Push trigger interlock (2) on as
far as it will go and make certain
that the angled end (1) rests
behind the ridge (arrow)
– Trigger interlock may pop out
: Press nipple (1) of the throttle
cable into the hole of the lever (2)
and guide it into the slot (arrow)
5904RA312 TG
1
5904RA313 TG
2
1
5904RA 314 TG
1
2
