Stihl FS 360 Service Manual

91FS 240 C, FS 260 C, FS 360 C, FS 410 C, FS 460 C-M
11. Fuel system

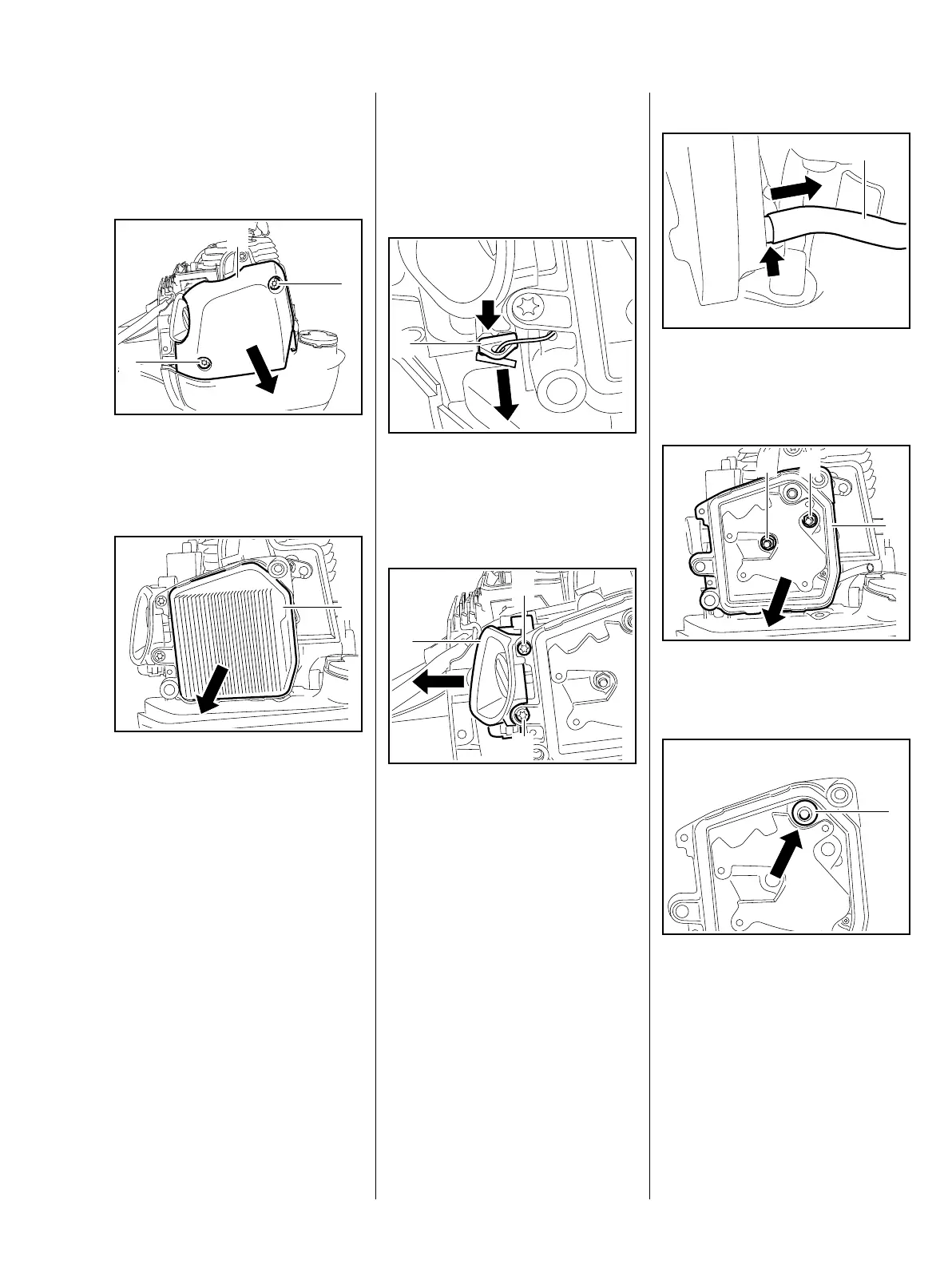

11.1 Air filter
– Refer also to troubleshooting,
b 3.6, b 3.7
: Remove screws (1)
: Remove the filter cover (2)
: Remove the air filter (1)
– Examine air filter, clean or
replace if necessary
– see Instruction Manual
– Reassemble parts in reverse
order
5904RA390 TG
1
1
2
5904RA391 TG
1
11.2 Filter housing
– Remove the air filter, b 11.1
Versions with M-Tronic
: Remove plug (1) on diagnostic
connector (arrow)
All versions
: Remove screws (1)
In versions with M-Tronic, the
grommet (2) is not removed
because it is connected to the
switchgear.
: Remove grommet (2)
5904RA394 TG
1
5904RA003 TG
1
1
2
All versions
: Remove tank vent hose (1) at the
connector (arrow) – always use a
new tank vent hose
: Unscrew nuts (1) and pull off filter
housing (2)
: Press out grommet (1) in the
direction of the carburetor
– For versions with M-Tronic:
check the plug of the diagnostic
connector, replace if necessary
5904RA395 TG
1
5904RA396 TG
1 1
2
5904RA397 TG
1
