Stihl FS 360 Service Manual

19FS 240 C, FS 260 C, FS 360 C, FS 410 C, FS 460 C-M

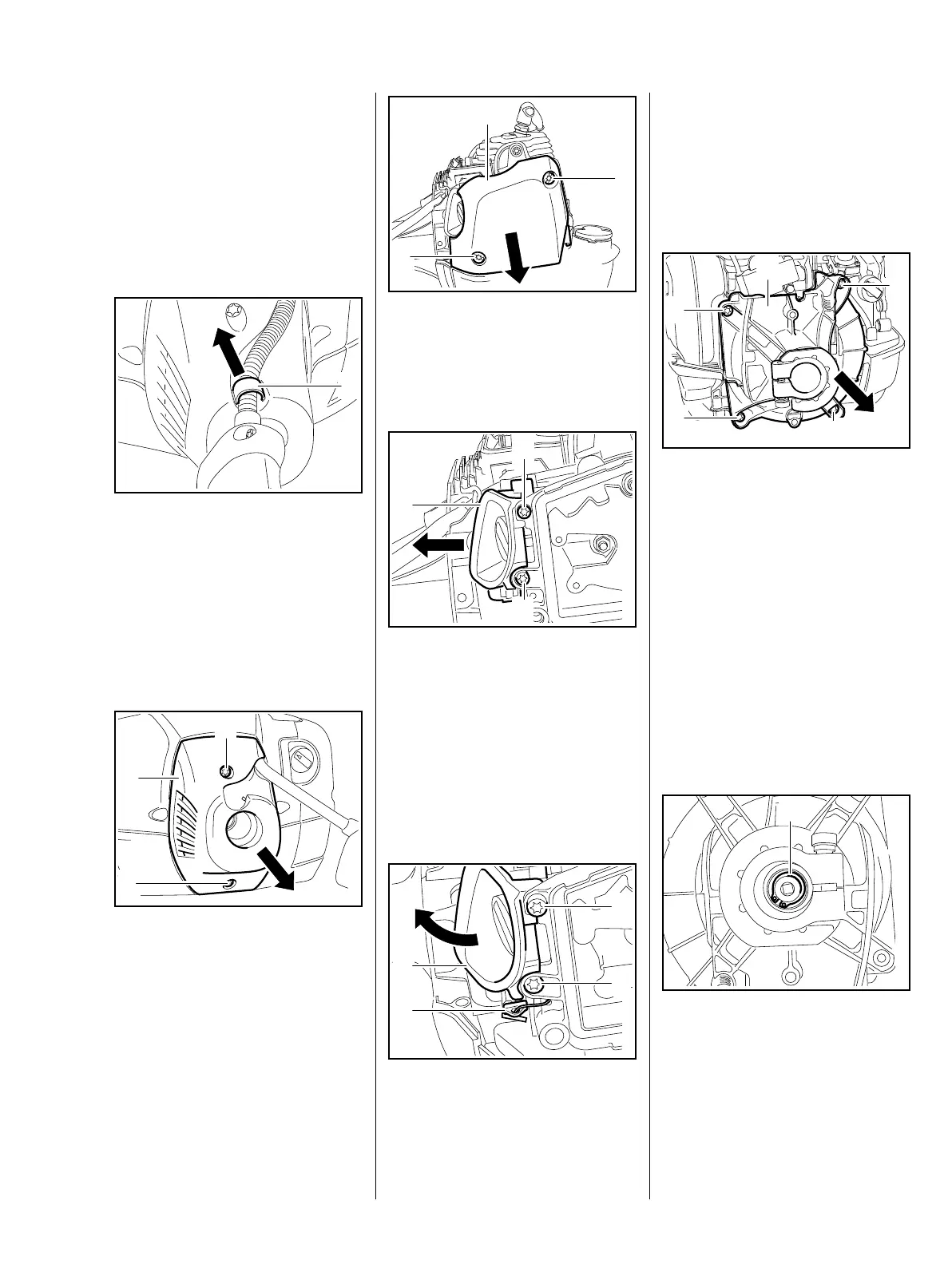

4. Clutch
4.1 Clutch drum
– Troubleshooting, b 3.1
– Remove drive tube assembly,
1-point antivibration system,
b 12.1, 4-point antivibration
system, b 12.2
: Pry out cable holder (1) on one
side
– Remove cable holder (1)
– Lay aside protective tube with
control handle
– Do not kink protective tube
: Remove screws (1)
: Remove cover (2)
– Remove starter, b 8.2
– Remove shroud, b 5.4
– Remove protective hip plate,
b 11.9.3
5904RA000 TG
1
5904RA001 TG
1
2
1
: Remove screws (1)
: Remove filter cover (2) with
screws
: Remove screws (1)
: Remove bushing (2)
– Detach short circuit wire and
cable holder from engine,
b 6.6.2
Versions with M-Tronic
: Remove the plug (1)
5904RA002 TG
1
2
1
5904RA003 TG
1
1
2
1
2
5904RA290 TG
2
3
: Remove screws (2) and tilt
bushing (3) to the side
– Detach short circuit wire and
cable holder from engine,
b 6.6.3
: Remove screws (1)
: Remove clutch housing (2)
Versions with 4-point
antivibration system
Removal and installation of the
clutch housing are the same as for
1-point antivibration systems.
– Examine the rubber buffers,
replace if necessary, b 9.2
All versions
: Remove the circlip (1)
5904RA004 TG
1
1
1
1
2
5904RA005 TG
1
