74 FS 240 C, FS 260 C, FS 360 C, FS 410 C, FS 460 C-M

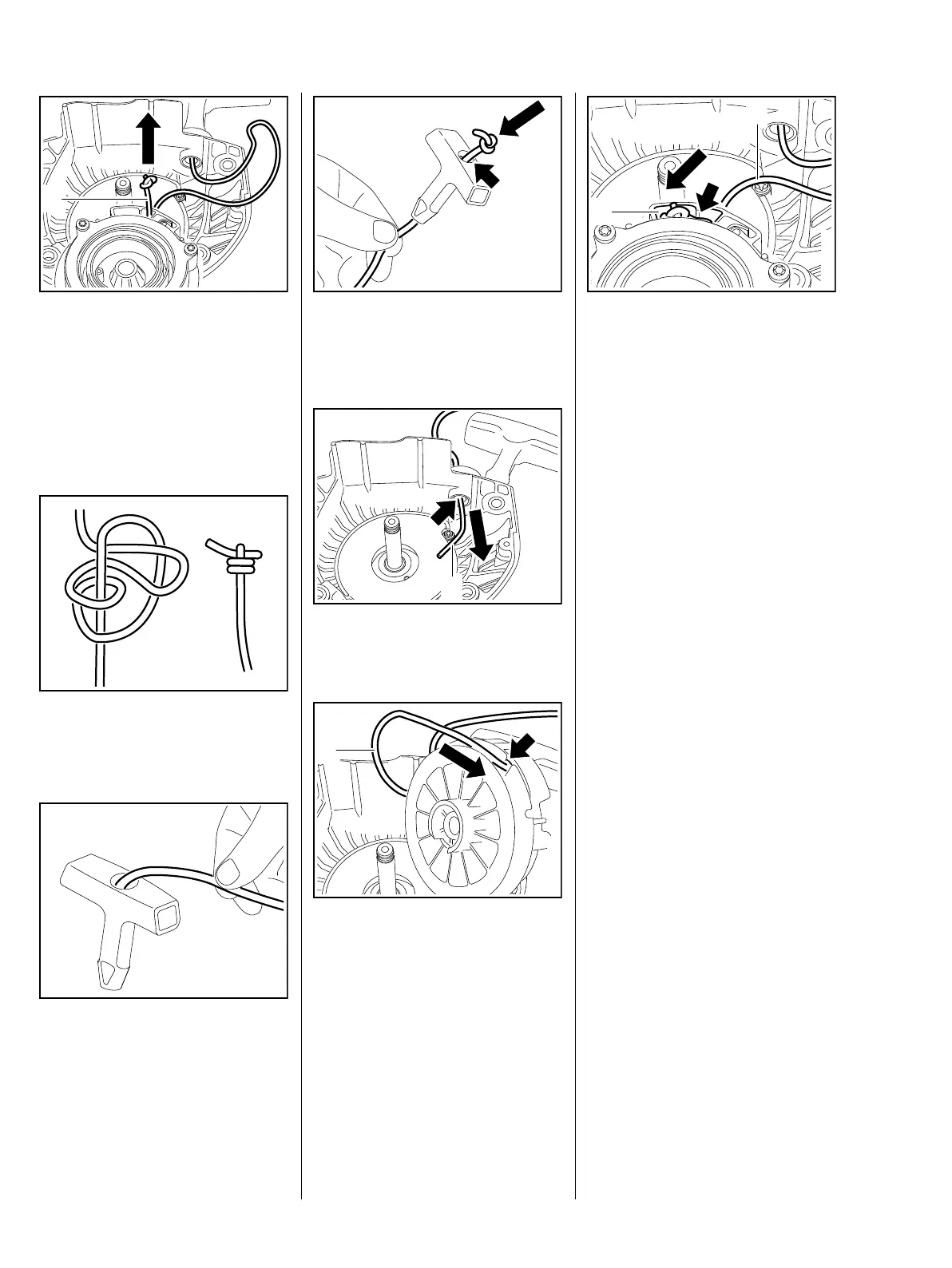

: Push starter rope (1) out a short
distance and undo the knot
– Pull the starter rope out of the
rope rotor, starter cover and
starter grip
Installation
: Make the special knot illustrated
in the end of the rope at the
starter grip
: Thread the new starter rope into
the starter grip from above
5904RA200 TG
1
5904RA230 TG4903RA131 TG
: Pull the rope through the grip until
the knot at the end of the rope is
in the recess (arrow)
: Then thread the rope (1) through
the opening (arrow)
: Thread starter rope (1) into rope
rotor
– Secure the rope (1) with a simple
overhand knot
4903RA132 TG5904RA201 TG
1
5904RA202 TG
1
: Insert starter rope (1) in the
recess (arrow) and press the
knot into the depression (2) as far
as it will go
– Install ErgoStart/rope rotor,
b 8.4
– Tension the rewind spring, b 8.6
– Reassemble remaining parts in
reverse order
5904RA203 TG
2
1
