Stihl FS 360 Service Manual

120 FS 240 C, FS 260 C, FS 360 C, FS 410 C, FS 460 C-M
Installation

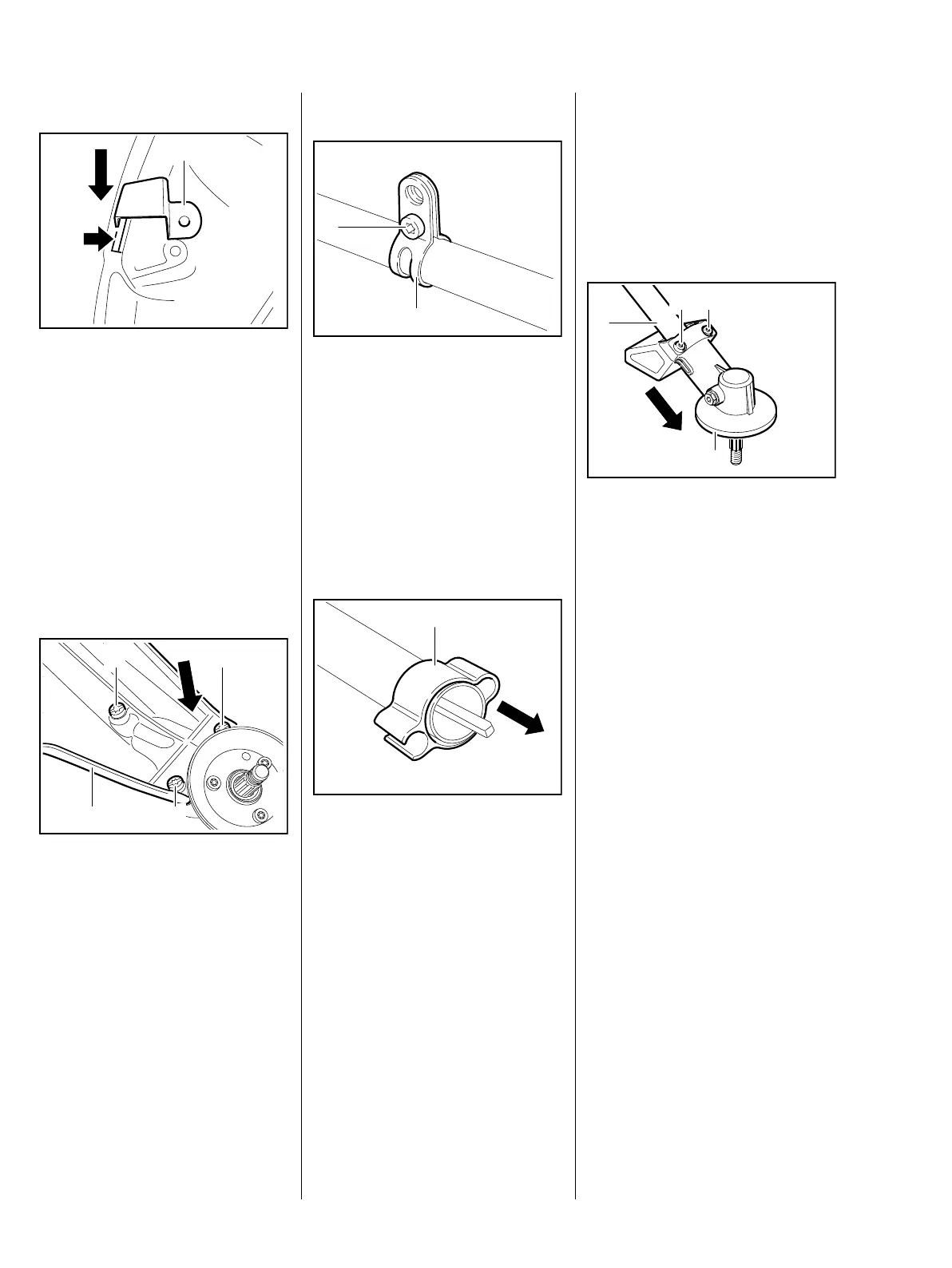

: Push the line limiting blade (1)
into the mount (arrow)
– Insert and tighten down the screw
To preserve the threads in the
plastic housing, screw the screws
into the existing threads and tighten
carefully.
– Examine gearbox, repair or
replace if necessary – see
"Kombi-Tools" Service Manual
: Position the deflector (1) on the
gearbox
: Insert and tighten down the
screws (2)
5904RA499 TG
1
5904RA500 TG
1 2
22
12.3.3 One-piece carrying ring
: Unscrew screw (1) and bend
open and remove clamp (2)
– Install parts in reverse order
12.3.4 Support
– Remove drive tube assembly,
b 12.1
: Remove throttle cable holder (1)
– Install parts in reverse order
2
1
545RA271 TG
5904RA540 TG
1
12.4 Gearbox for drive tube
assembly 25.4 mm with
square profile
12.4.1 Removal and installation
– Removing cutting attachment
: Undo the screws (1)
: Pull gearbox (2) off of drive tube
assembly (3)
– Examine gearbox, repair or
replace if necessary, b 12.4.2
5904RA466 TG
3
1 1
2
