30 FS 240 C, FS 260 C, FS 360 C, FS 410 C, FS 460 C-M
Installation

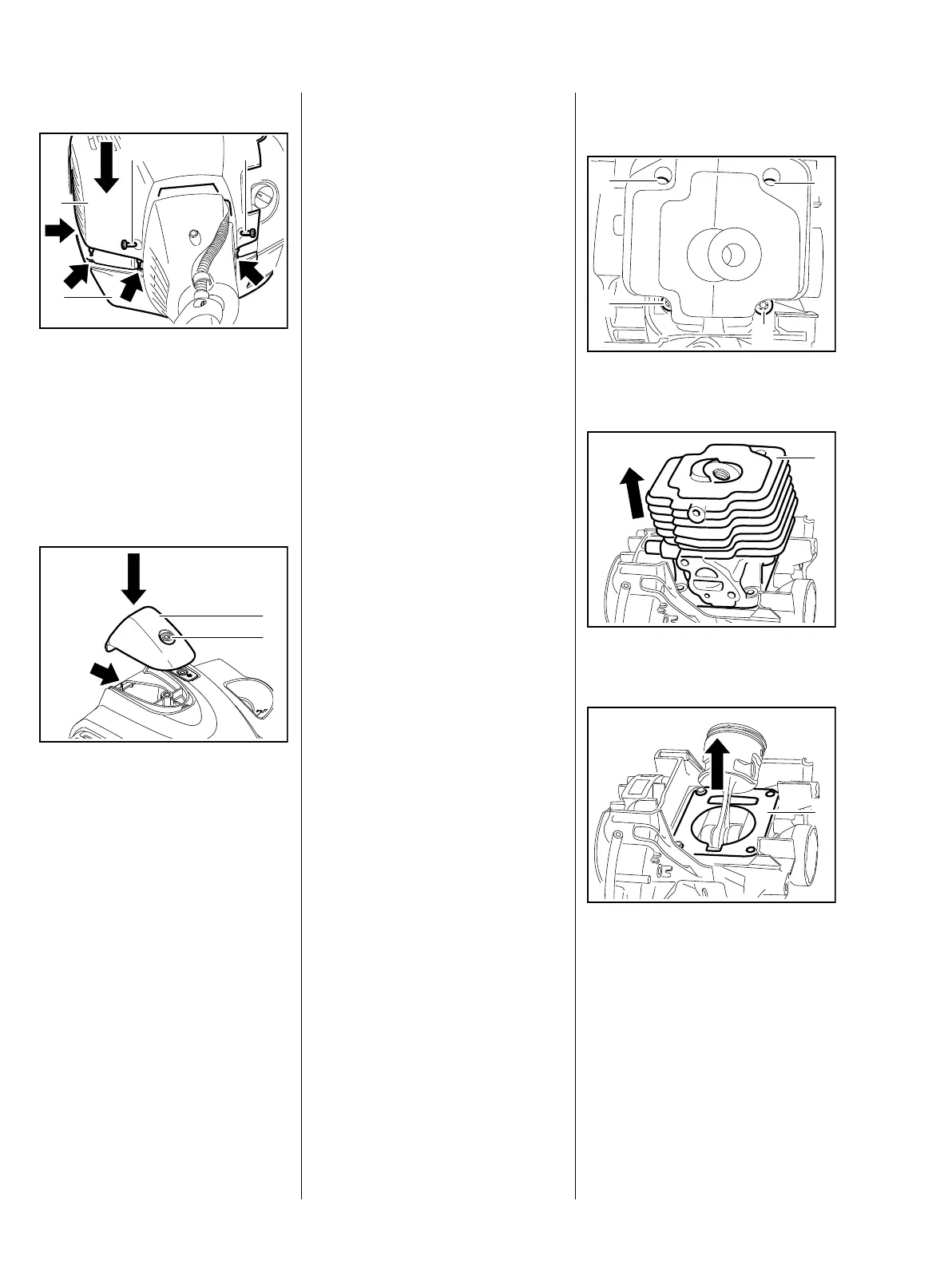

: Fit shroud (1) so that the pins
engage the holes (arrows) of the
protective hip plate (2)
: Insert and tighten down the
screws (3)
– Remove starter, b 8.2
: Slide cover (1) with the tab into
the slot (arrow) and position
: Screw in the screw (2) and
tighten
2
5904RA055 TG
33
1
5904RA056 TG
1
2
5.5 Cylinder
Before removing the cylinder,
decide whether or not the
crankshaft is to be removed.
With cylinder installed
The piston must be blocked through
the spark plug hole to prevent the
crankshaft turning in order to
remove the clutch.
With cylinder removed
The crankshaft is blocked by
placing the piston on the wooden
assembly block in order to remove
the clutch.
The mating surfaces must be in
perfect condition and without any
damage whatsoever. The cylinder
must be replaced if the mating
surfaces are damaged b 3.7.
– Remove starter, b 8.2
– Remove shroud, b 5.4
– Remove drive tube assembly,
1-point antivibration system,
b 12.1, 4-point antivibration
system, b 12.2
– Remove clutch housing, b 4.1
– Take off the spark plug boot and
remove the spark plug, b 4.2
– Remove filter housing, b 11.2
– Remove the carburetor, b 11.3
– Remove the spacer flange,
b 11.7
– Remove the ignition module,
b 6.2
Ignition module/control unit
M-Tronic, b 6.2.1
– Remove the muffler, b 5.1
: Unscrew the pan head screws (1)
: Carefully pull off the cylinder (1)
: Remove the cylinder gasket (1)
5904RA057 TG
1
1
1
1
5904RA058 TG
1
5904RA059 TG
1
