北米Model "A3240BE-A" EDITED: 2022/ 7/ 29
& Power window operation
S02AH07
! Power window switches
S02AH0701

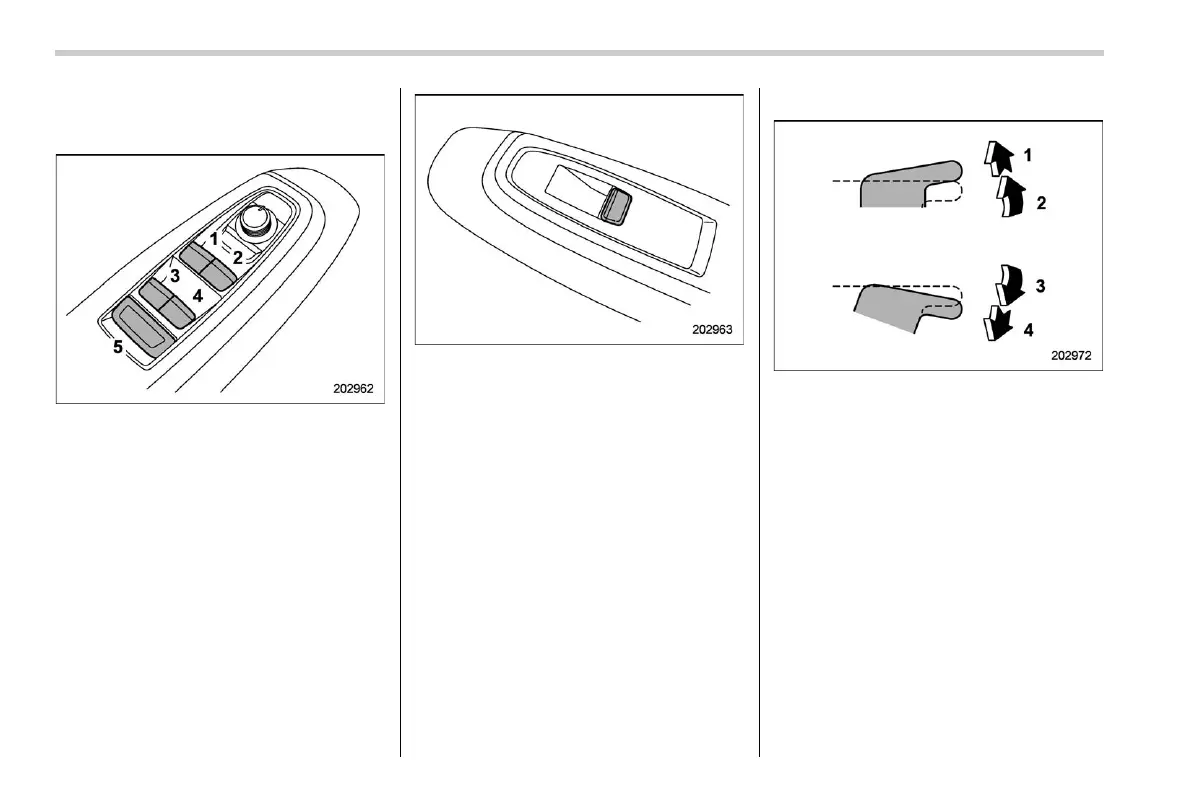

Driver’s side power window switches
1 For front left window (with one-touch auto
up and down feature)
2 For front right window (with one-touch
auto up and down feature)
3 For rear left window
4 For rear right window
5 Lock switch
All door windows can be controlled by the
power window switch cluster on the
driver’s side door.
These switches illuminate when activated.
Passenger’s side power window switches
Each passenger’s window can be con-
trolled by the power window switch located
on the door.
These switches illuminate when activated.
! Operating the window
S02AH0702
With one-touch auto up and down feature
1 Automatically close*
2 Close
3 Open
4 Automatically open*
*: To stop the window halfway, operate the
switch to the opposite side.
Windows
146
