1

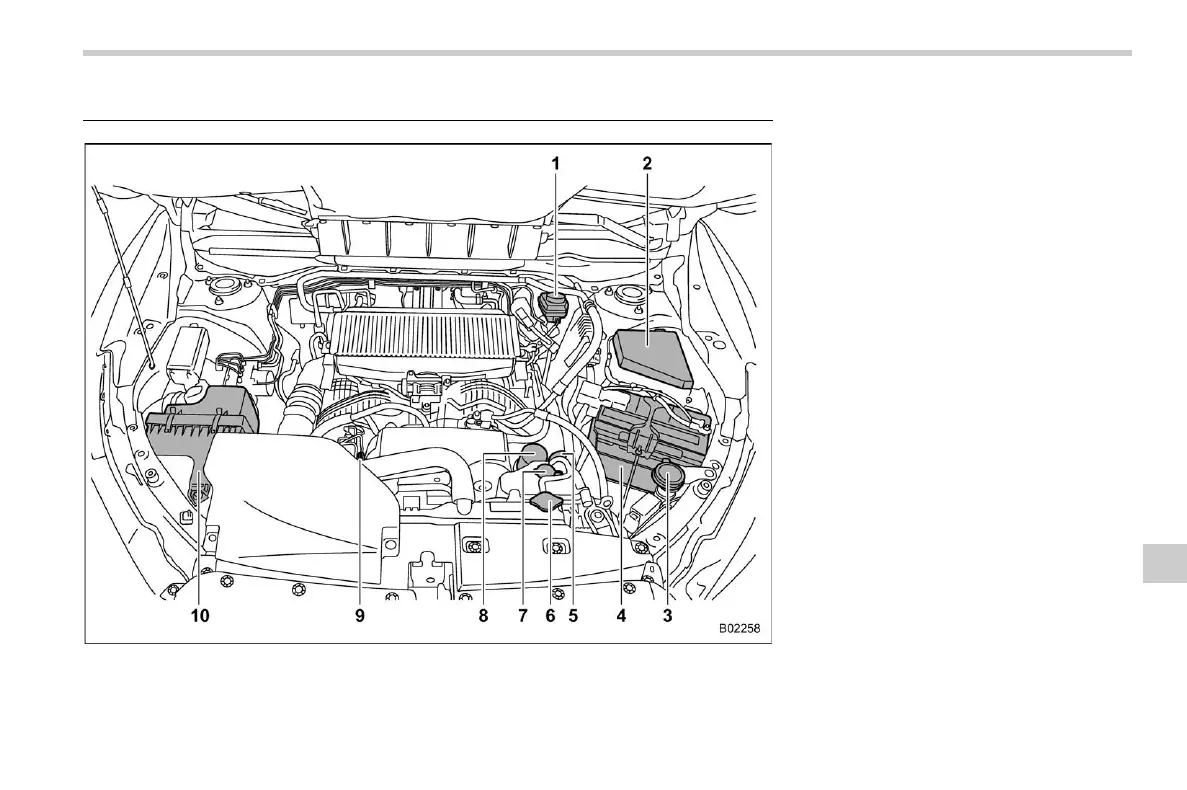

1-4.
Engine
compartment
overview
S1
1AD
1
Brake
fluid
reservoir
(page
493)
2
Fuse
box
(page
510)
3
Windshield
washer
tank
(page
503)
4
Battery
(page
509)
5
Engine
oil
filler
cap
(page
486)
6
Radiator
cap
(page
489)
7
Engine
coolant
reservoir
(page
489)
8
Engine
oil
filter
(page
488)
9
Engine
oil
level
gauge
(page
486)
10
Air
cleaner
case
(page
491)
Engine
compartment
overview
485
1
1
Maintenance
and
service
488
490
