北米Model "A3240BE-A" EDITED: 2022/ 7/ 29

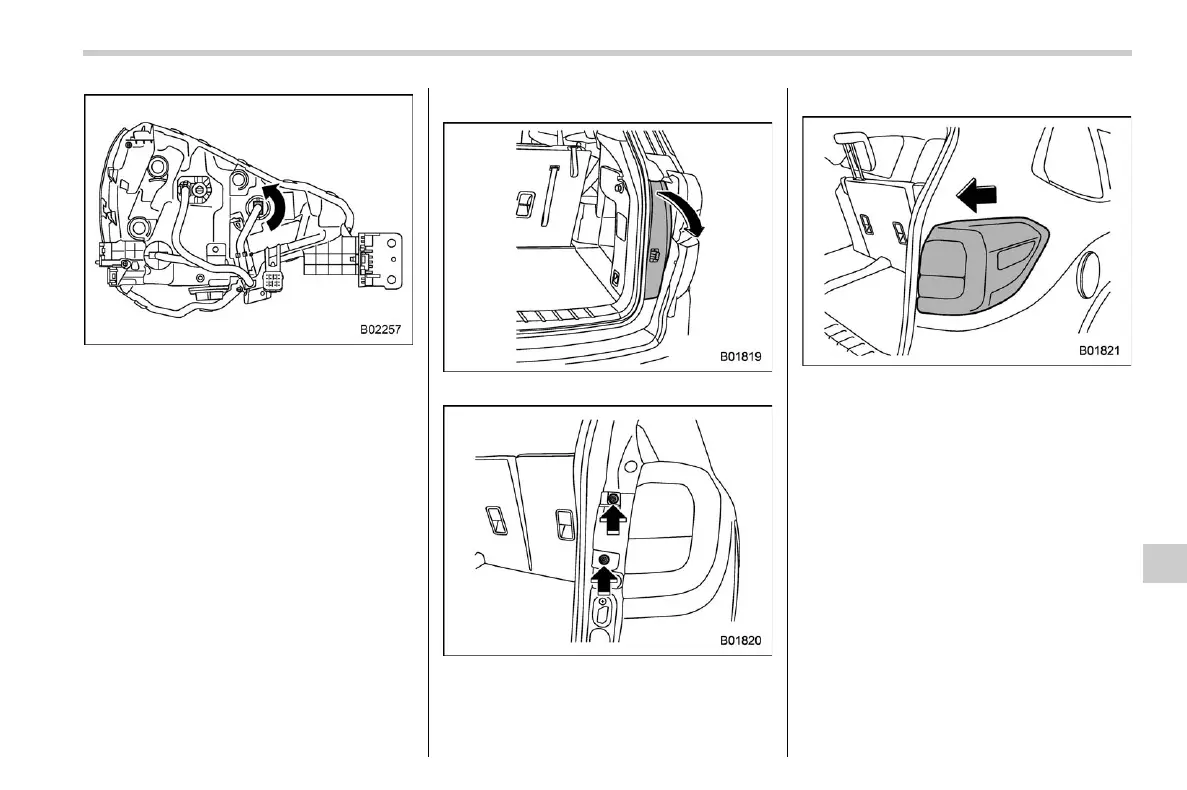

3. Remove the bulb from the headlight
assembly by turning it counterclock-
wise.
4. Replace the bulb with a new one. At
this time, use care not to touch the bulb
surface.
5. To install the bulb to the headlight
assembly, turn it clockwise until it
clicks.
6. Install the air intake duct with clips
(right-hand side).
7. Set the washer tank to the original
place and secure it with a clip (left-
hand side).
& Rear combination lights
S11BE05
1. Remove the covers.
2. Using a Phillips screwdriver, remove
the upper and lower screws that
secure the rear combination light as-
sembly.
3. Slide the rear combination light as-
sembly rearward and remove it from
the vehicle.
4. Disconnect the electrical connector.
– CONTINUED –
Replacing bulbs
513
11
Maintenance and service
