北米Model "A3240BE-A" EDITED: 2022/ 7/ 29
11-20. Fuses
S11BB
CAUTION
Never replace a fuse with one having
a higher rating or with material other
than a fuse because serious damage
or a fire could result.
NOTE
Fuse rating and using circuit are de-
scribed on each behind the fuse box
cover.

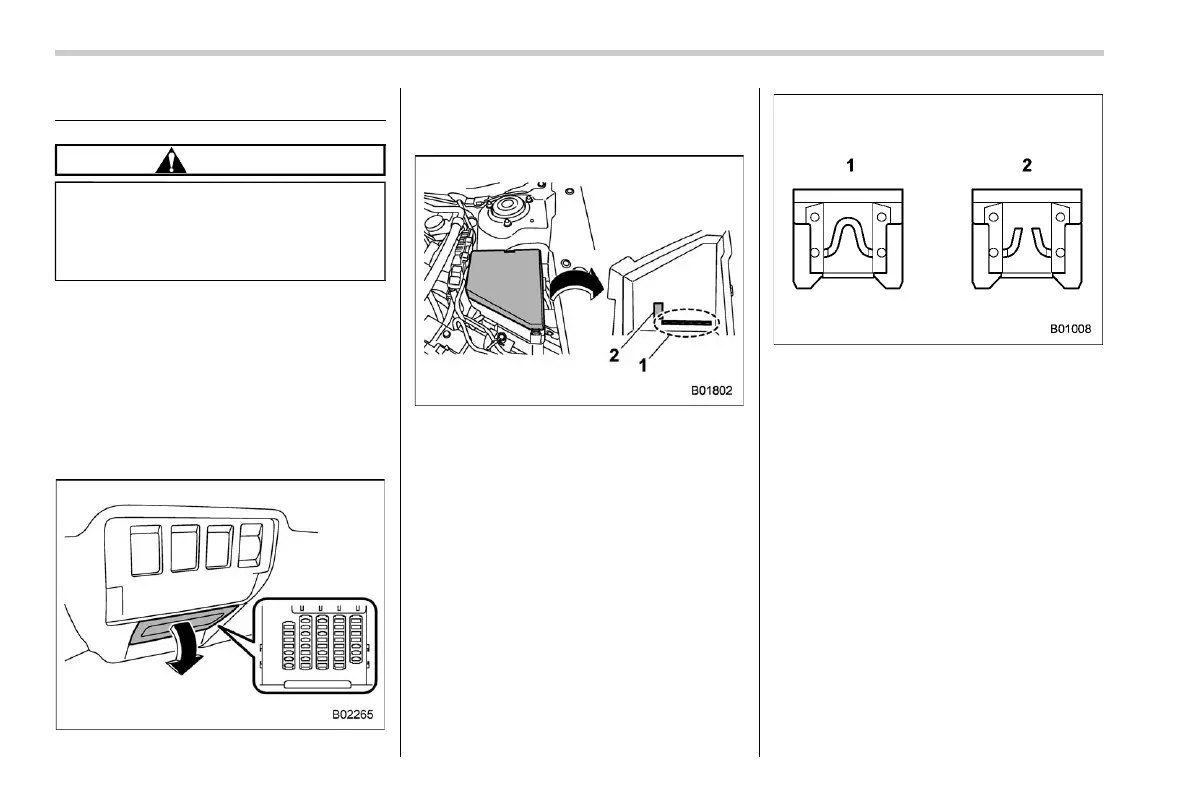

The fuses are designed to melt during an
overload to prevent damage to the wiring
harness and electrical equipment. The
fuses are located in two fuse boxes.
One is located under the instrument panel
behind the fuse box cover on the driver’s
seat side. To remove the cover, pull it out.
1 Spare fuses
2 Fuse puller
The other one (main fuse box) is housed in
the engine compartment. Also, the spare
fuses and fuse puller are stored in the fuse
box cover.
Pinch the upper part of the fuse puller
when removing it from the main fuse box.
1 Good
2 Blown
If any lights, accessories or other electrical
controls do not operate, inspect the corre-
sponding fuse. If a fuse has blown, replace
it.
1. Turn the ignition switch to the “LOCK”/
“OFF” position and turn off all electrical
accessories.
2. Remove the cover.
3. Determine which fuse may be blown.
Look at the back side of each fuse box
cover.
Fuses
510
To Next Page
