北米Model "A3240BE-A" EDITED: 2022/ 7/ 29
& Components
S01AH11

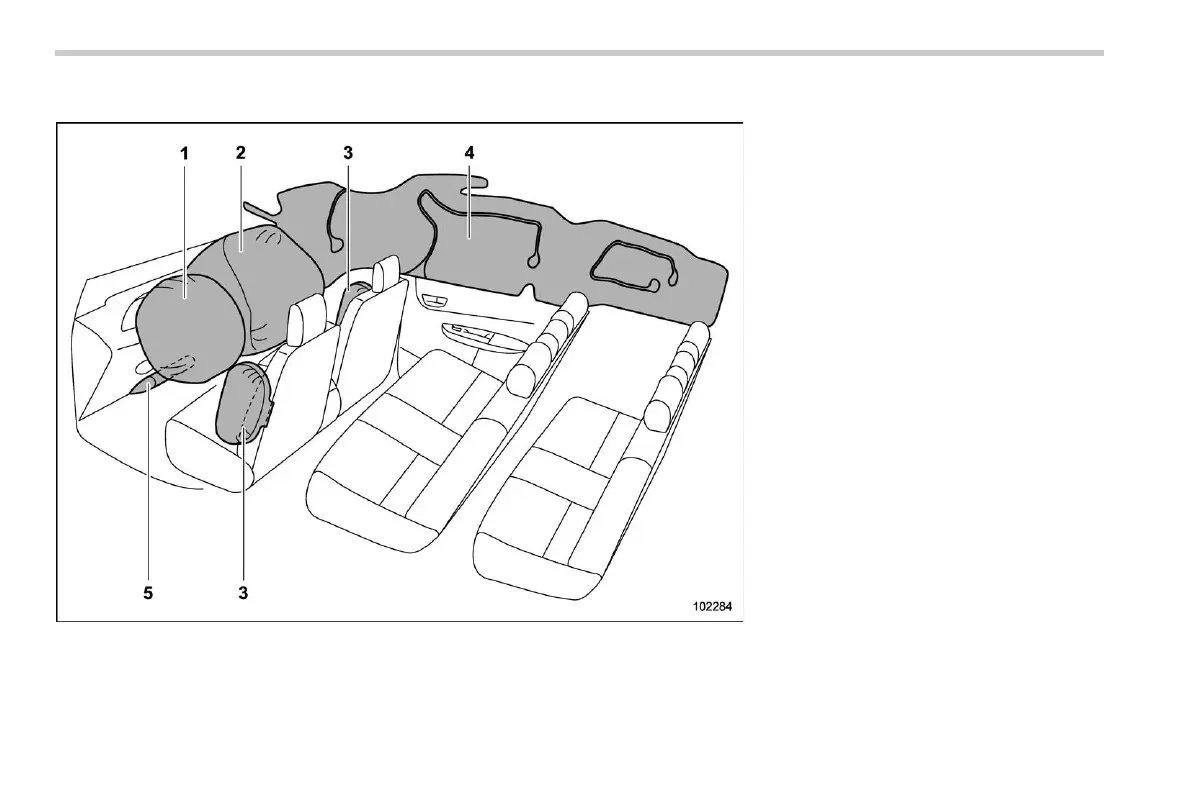

1 Driver’s SRS frontal airbag
2 Front passenger’s SRS frontal airbag
3 SRS side airbag
4 SRS curtain airbag
5 SRS knee airbag
The SRS airbags are stowed in the
following locations.
Driver’s SRS frontal airbag: In the center
portion of the steering wheel which bears
an “SRS AIRBAG” mark.
Front passenger’s SRS frontal airbag:
Under the top of the dashboard. An “SRS
AIRBAG” mark is located at the right
corner of the dashboard.
SRS side airbag: In the door side of each
front seat seatback which bears an “SRS
AIRBAG” tag.
SRS curtain airbag: In the roof side
(between the front pillar and a point behind
the rear quarter glass), “SRS AIRBAG”
marks are located at the top of each center
pillar.
SRS knee airbag: Under the steering
column which bears an “SRS AIRBAG”
mark.
SRS airbag (Supplemental Restraint System airbag)
90
