北米Model "A3240BE-A" EDITED: 2022/ 7/ 29

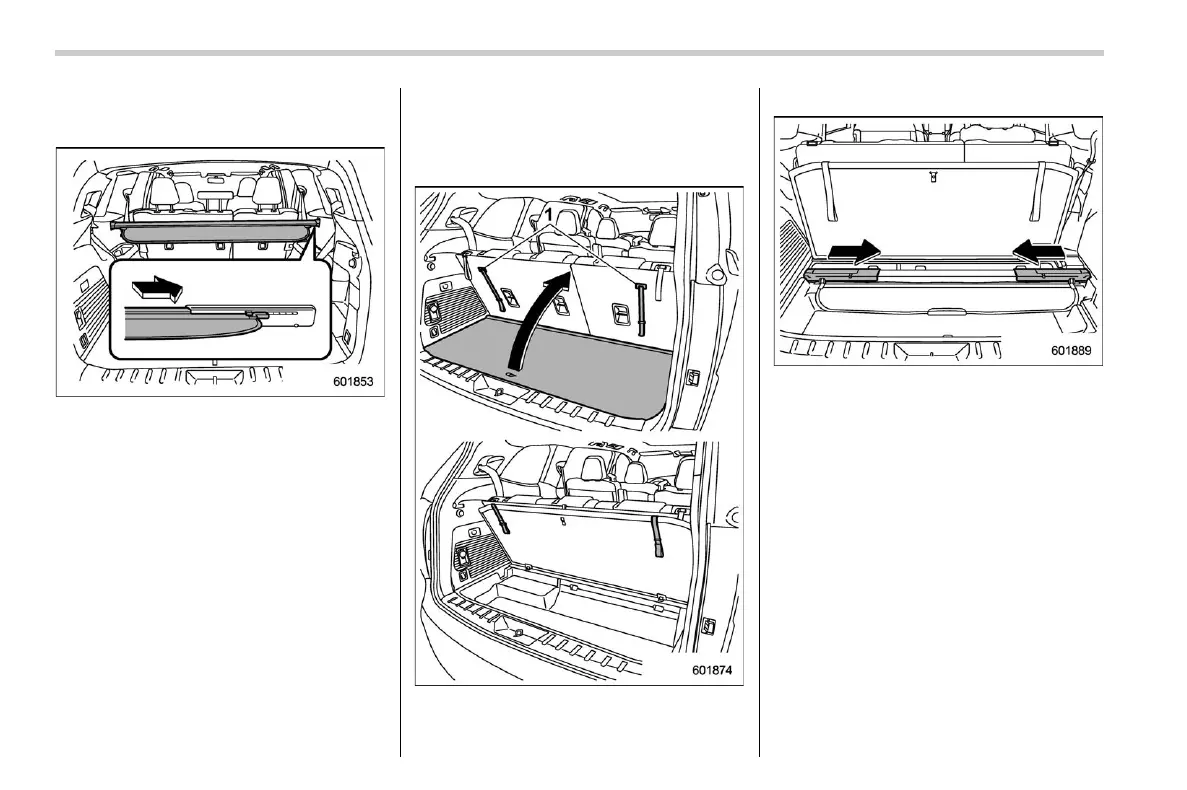

& To remove the cover housing
S06AK02
1. Rewind the cover.
2. Push the cover housing to the right, to
shorten the length of the cover.
3. Remove it from the retainer.
& Stowage of the cargo area
cover
S06AK04
The cargo area cover can be stowed in
under the cargo floor.
1 Straps
1. Raise and fold the rear end of the cargo
floor board.
2. Shorten the cargo area cover, then
stow it under the cargo area floor.
3. Put the cargo floor board back.
NOTE
To stow, insert the right end of the
cover into the recess of floor. To take it
out, lift up the left end of the cover, then
pull it out from the recess.
Cargo area cover
318
