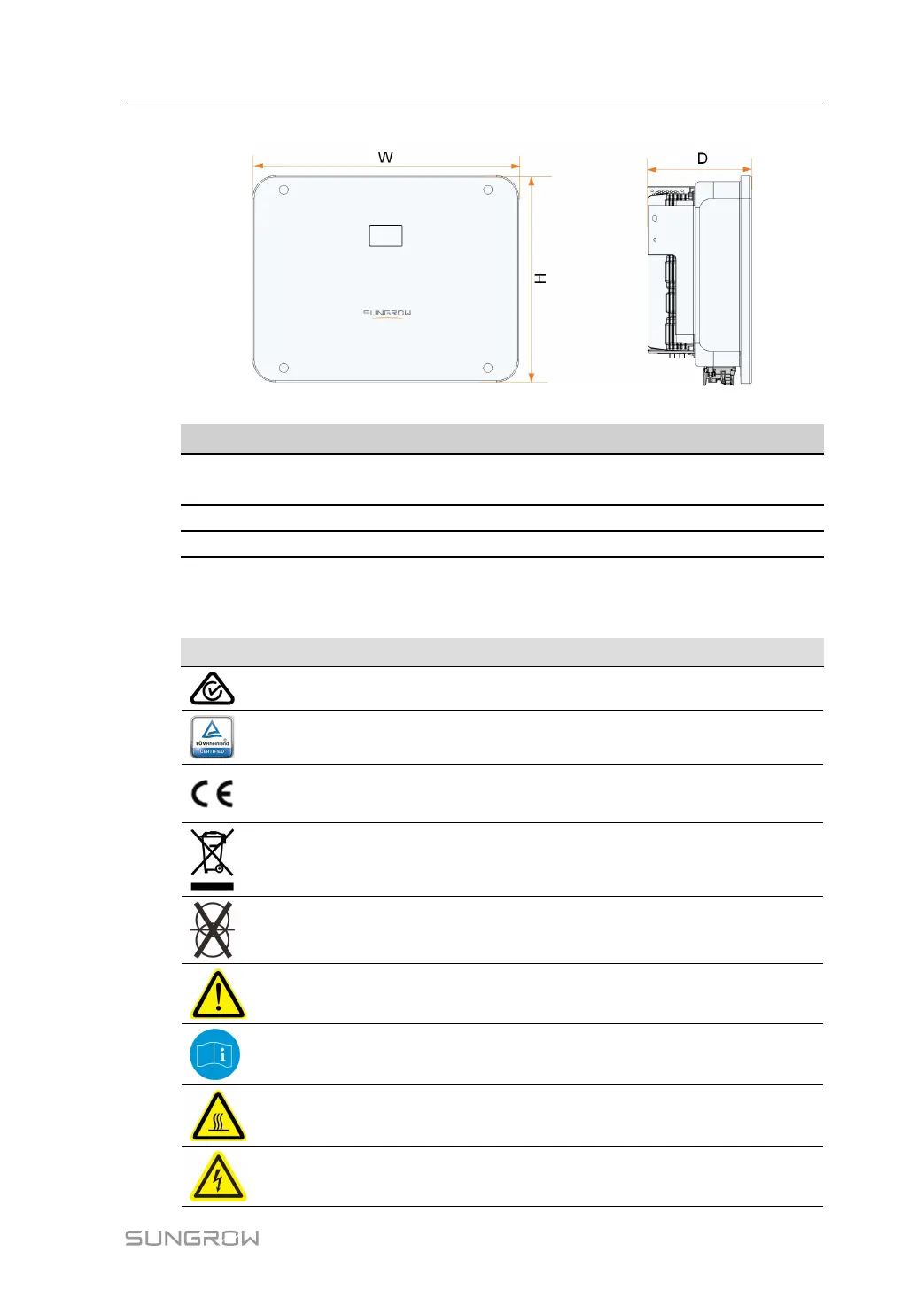

figure 2-2 Dimensions of the Inverter
Inverter
W(mm) H(mm) D(mm)
Weight(kg)
SH5/6/8/10/
12T
620 480 195 32
SH15/20T 620 480 245 38
SH25T 620 480 245 40
2.3 Symbols on the Product
Symbol Explanation
RCM mark of conformity.
TÜV mark of conformity.
CE mark of conformity.
EU/EEA Importer
Do not dispose of the inverter together with household waste.
The inverter does not have a transformer.
Disconnect the inverter from all the external power sources be-
fore maintenance!
Read the user manual before maintenance!
Burn danger due to hot surface that may exceed 60℃.
Danger to life due to high voltages!
Only qualified personnel can open and service the inverter.
