57

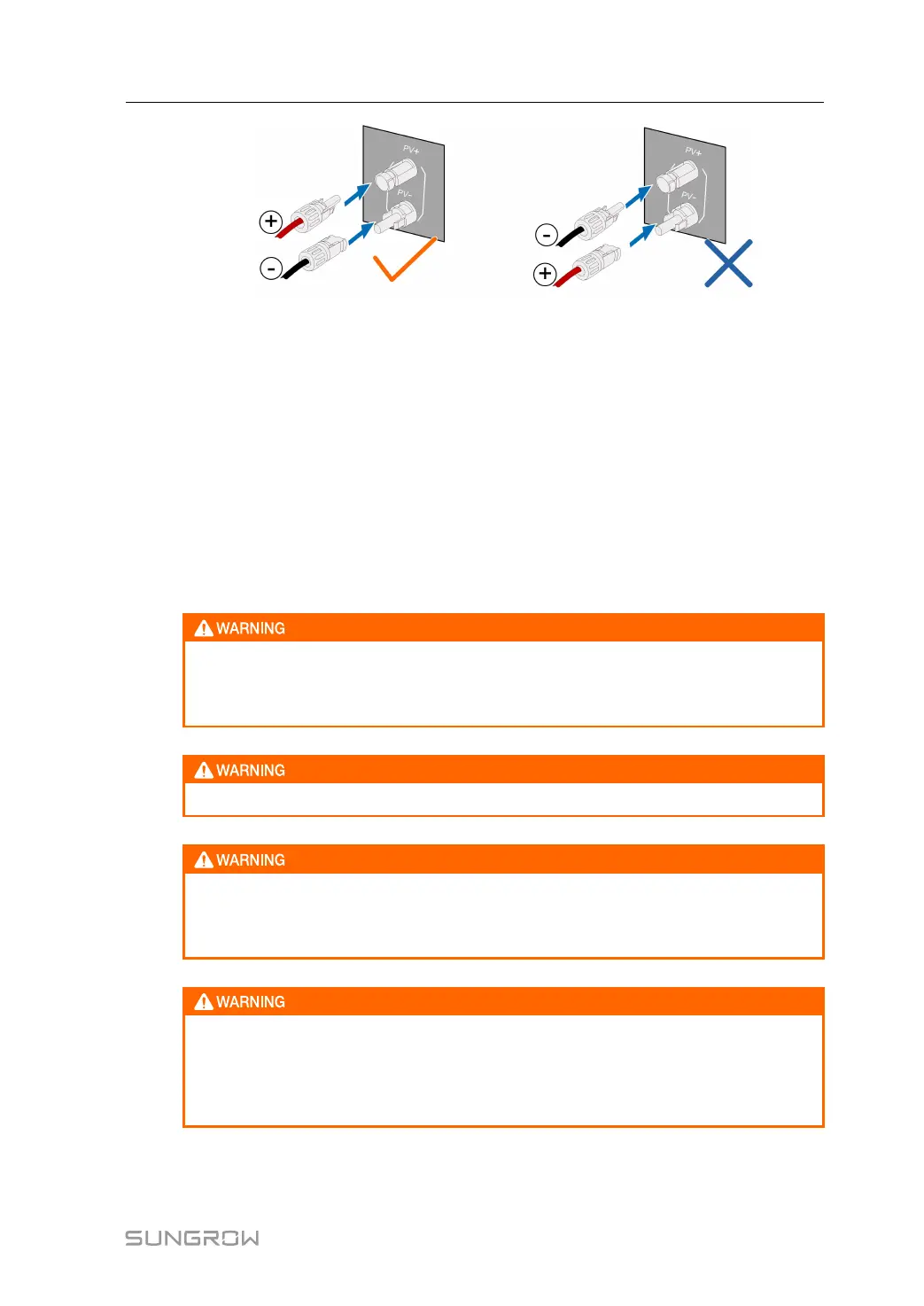

step 8 Follow the foregoing steps to connect PV connectors of other PV strings.
step 9 Seal any unused PV terminal with a terminal cap.
- - End
6.7 Battery Power Connection
6.7.1 Battery Connection Requirements
This section mainly describes the cable connections on the inverter side. Refer to the
instructions supplied by the battery manufacturer for the connections on the battery side and
configuration.
Only use properly insulated tools to prevent accidental electric shock or short
circuits. If insulated tools are not available, use electrical tape to cover the entire
exposed metal surfaces of the available tools except their tips.
The plug connector must be connected only by trained electricians.
Do not disconnect under load!
Battery connectors must not be disconnected while under load. They can be
placed in a no load state by shutting down the inverter completely.
During the installation and operation of the inverter, please ensure that the positive
or negative polarities of batteries do not short-circuit to the ground. Otherwise, an
AC or DC short-circuit may occur, resulting in equipment damage. The damage
caused by this is not covered by the warranty.
User Manual 6 Electrical Connection
