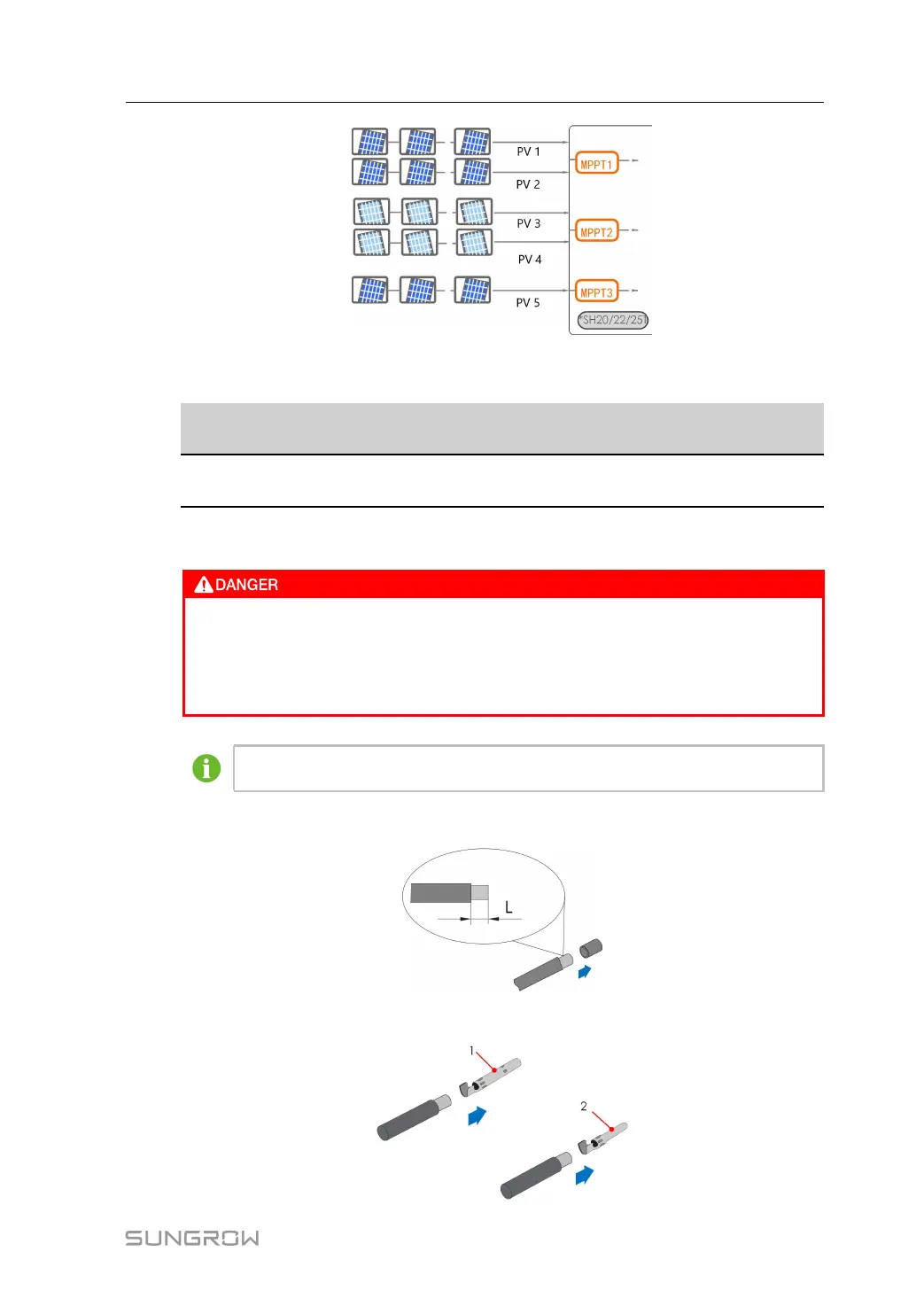

Prior to connecting the inverter to PV inputs, the following electrical specifications must be
met simultaneously:
Model Open-circuit Voltage
Limit
Max. current for Input
Connector
SH5/6/8/10/12/15/20/
25T
1000 V 30 A
6.6.2 Installing the PV Connectors
High voltage may be present in the inverter!
• Ensure all cables are voltage-free before performing electrical operations.
• Do not connect the DC switch and AC circuit breaker before finishing electrical
connection.
To ensure IP65 protection, use only the supplied connector.
step 1 Strip the insulation from each DC cable by 7 mm–8 mm.
step 2 Assemble the cable ends with the crimping pliers.
